Remote

Sale price$2,799.00 USD
Contact dealer for availability

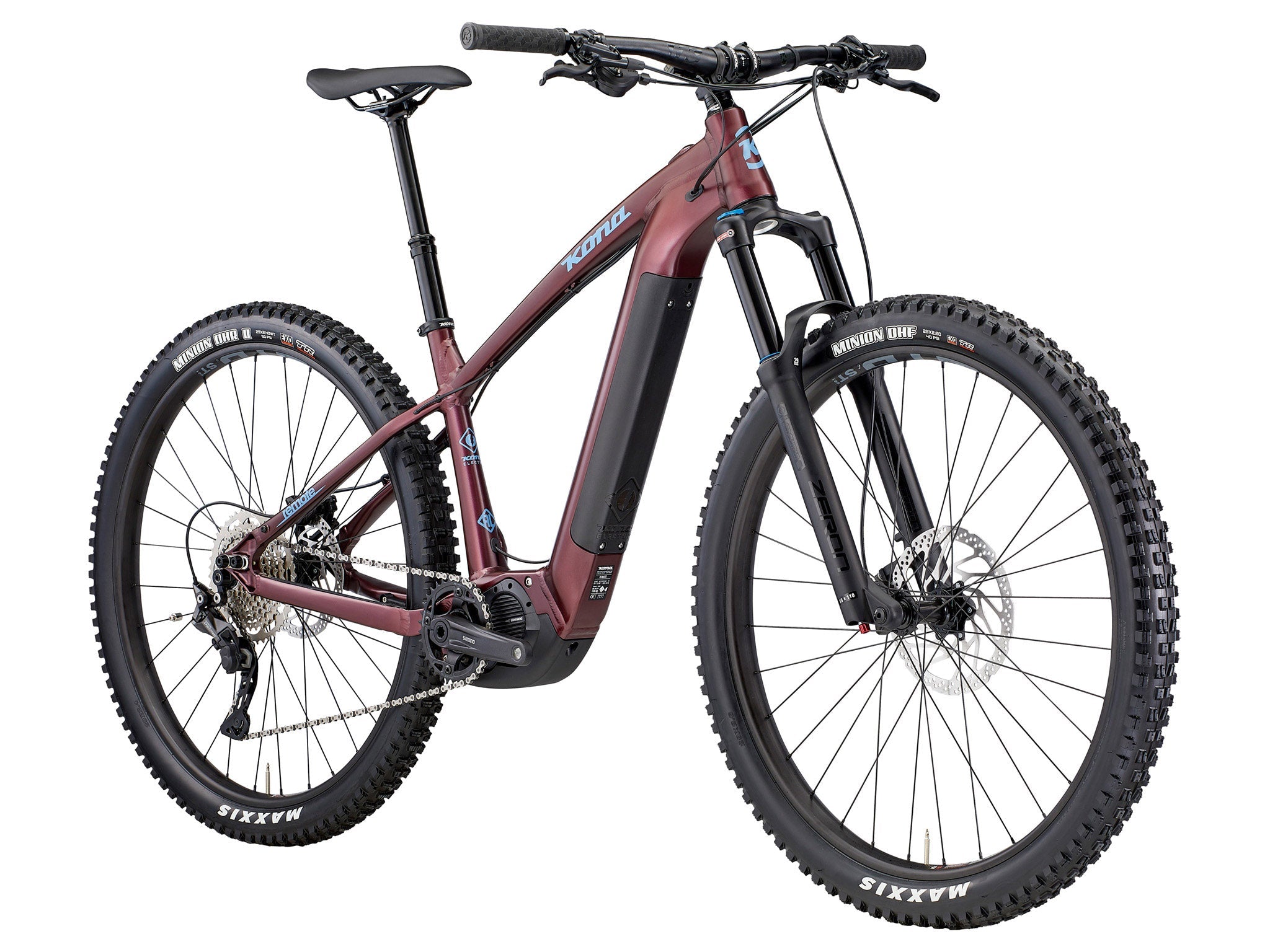

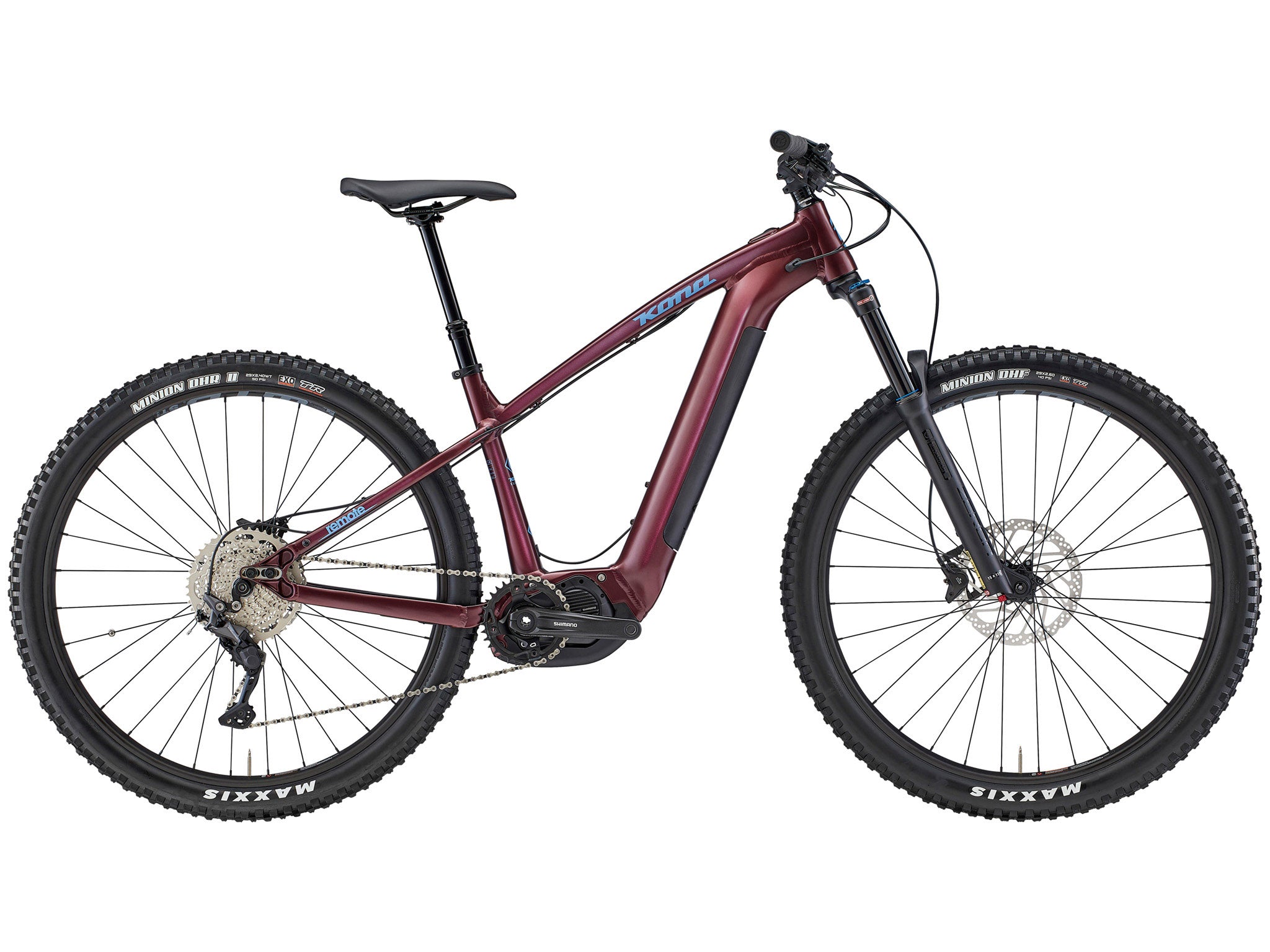

The Remote has become the veteran of the Kona e-MTB lineup. It’s been a top choice for trail builders, backwoods explorers and sportsmen of all kinds. Derived from the Honzo, its frame brings a sporty version to the masses that holds a smooth-operating Shimano battery and motor. 140mm of front suspension keeps the technical terrain at bay. A 10-speed drivetrain provides reliable shifting while hydraulic disc brakes keep the speed in check. The Remote is sporty, practical, and perhaps the perfect way to dip your toe into the eBike waters!

“Overall, the Remote is a super fun hardtail that’s capable enough to handle a variety of terrain. I’ve never had such a good time on a bike in my local mountains and am already dreading giving this bike back!” -Cycle Volta


Not finding what you want here?
Contact your local Kona Dealer.

SPECS & GEOMETRY

SPECIFICATIONS

Frame Material Kona 6061 Aluminum Butted
Sizes S, M, L, XL
Rear Shock n/a
Fork Suntour Zeron35 140mm Tapered 110 Spacing
Crankarms Shimano E8000
Chainrings 34t
B/B n/a
Pedals n/a
Chain KMC X10

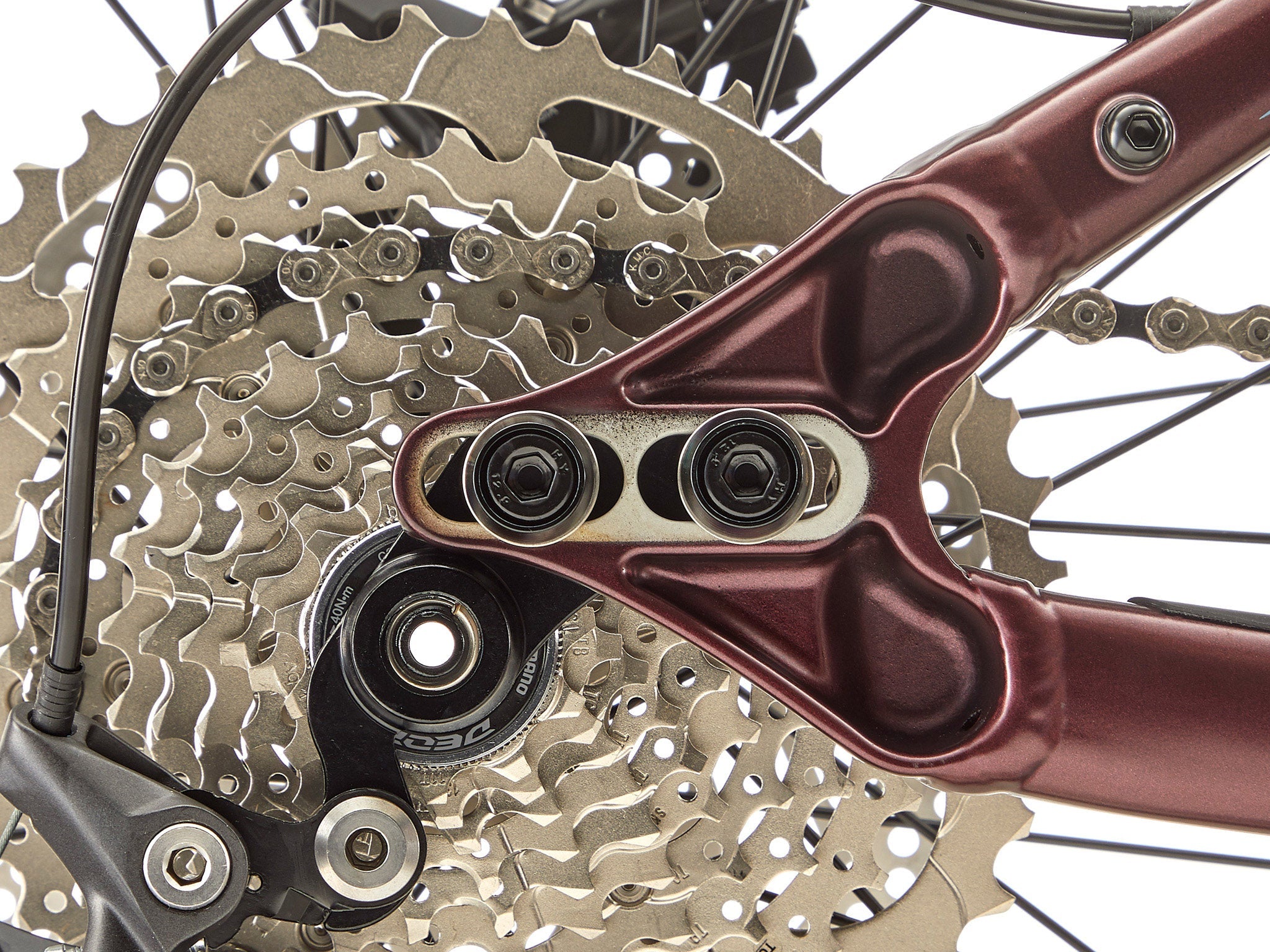

Cassette Shimano Deore 11-46t 10spd
Chainguide n/a
F/D n/a
R/D Shimano Deore
Shifters Shimano Deore

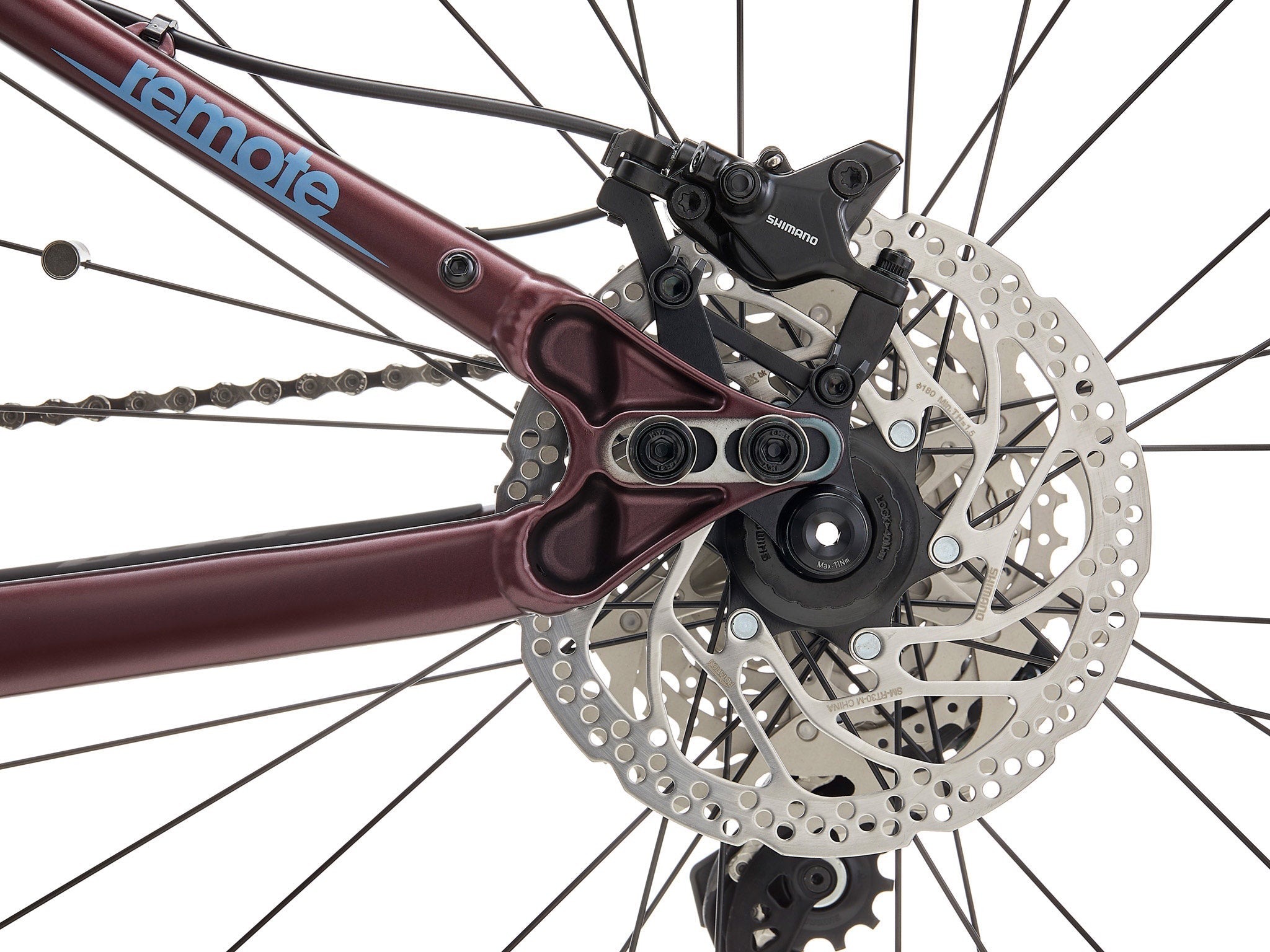

Brake Calipers Shimano MT410 Hydrualic
Front Brake Rotor Shimano RT30 203mm
Rear Brake Rotor Shimano RT30 180mm
Brake Levers Shimano MT410 Hydrualic
Headset FSA No.57B
Handlebar Kona XC/BC 35
Stem Kona XC/BC 35

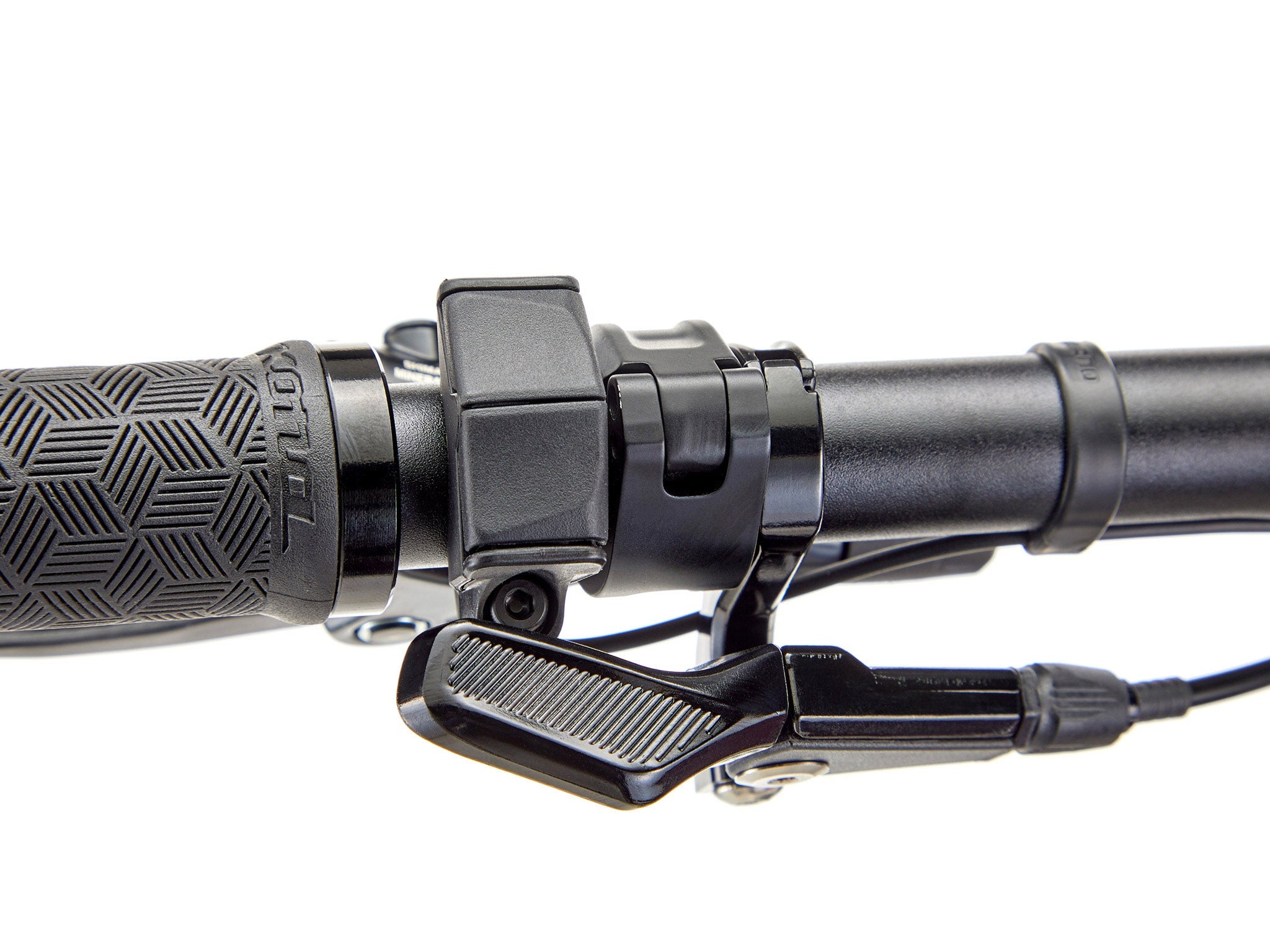

Seatpost TranzX Dropper Internal 31.6mm
Seat Clamp Kona Clamp
Grips Kona Key Grip
Saddle WTB Volt
Front Hub Shimano 110x15mm
Rear Hub Shimano 148x12mm
Spokes Stainless Black 14g
Rims WTB ST i35 TCS 2.0
Front Tire Maxxis Minion DHF EXO TR DUAL 29x2.6"
Rear Tire Maxxis Minion DHR II EXO TR DUAL 29x2.4" WT

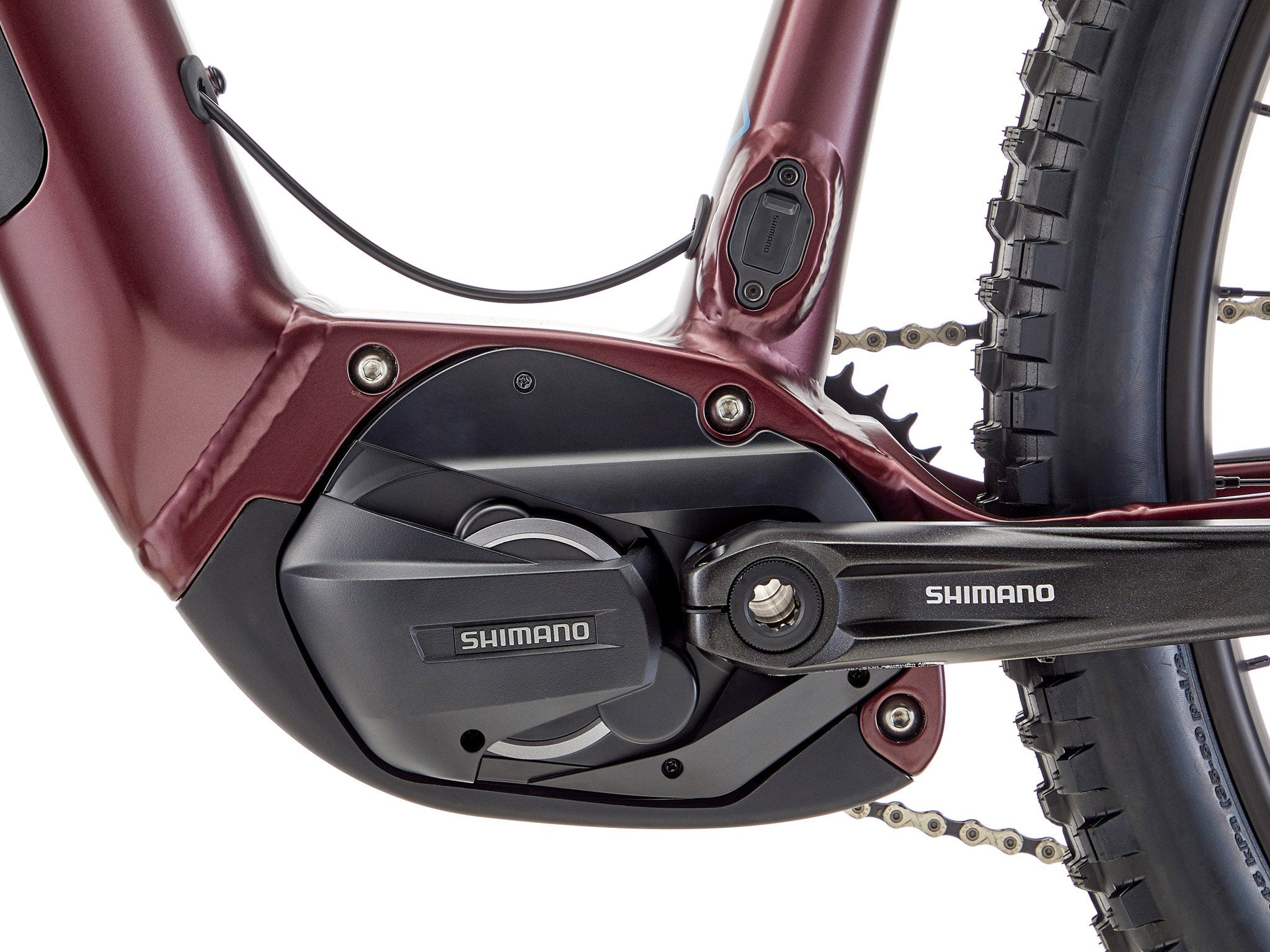

driveunit Shimano E7000 20MPH
Battery Shimano 504Wh

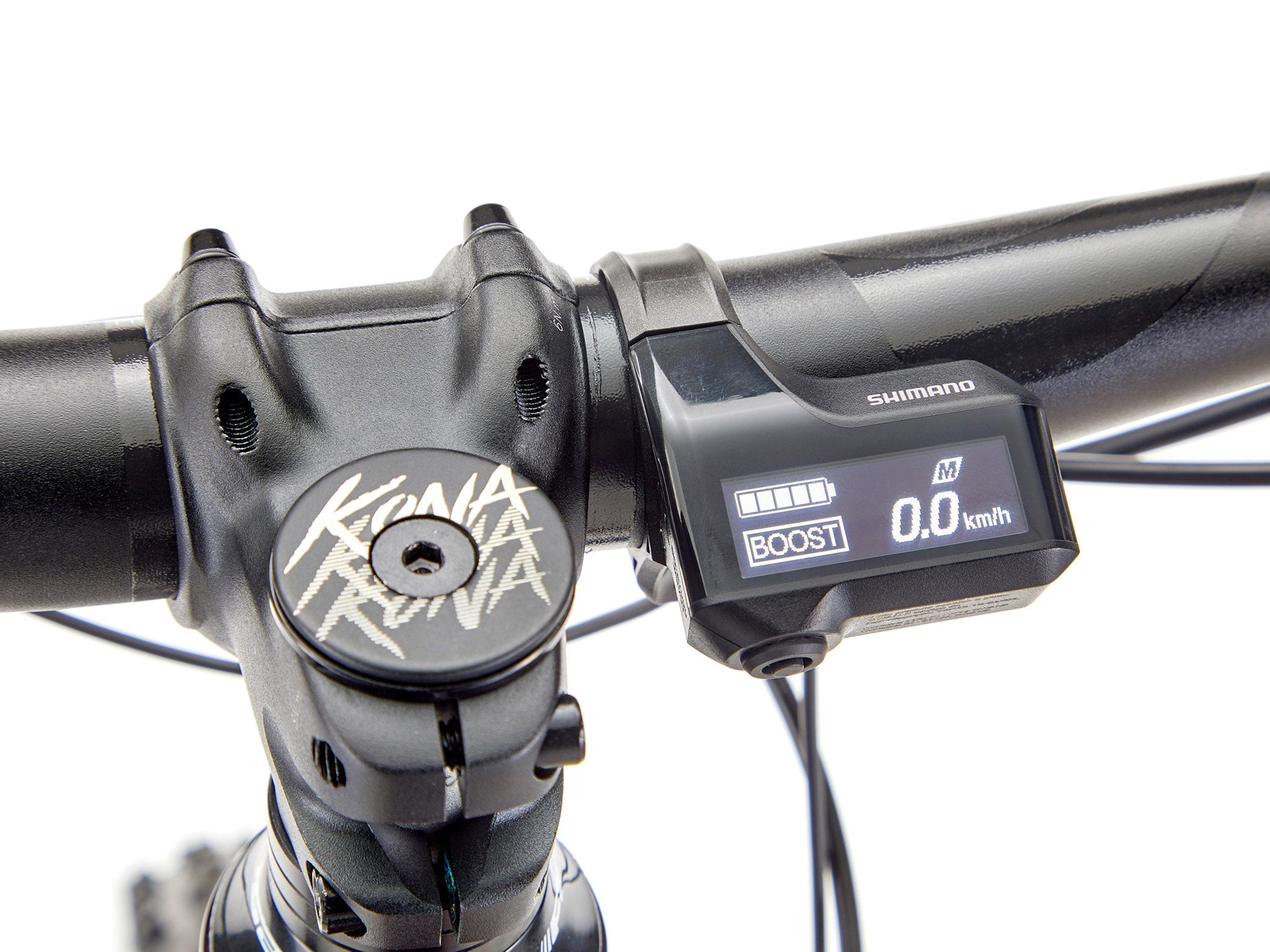

Display Shimano SC-E7000 Display

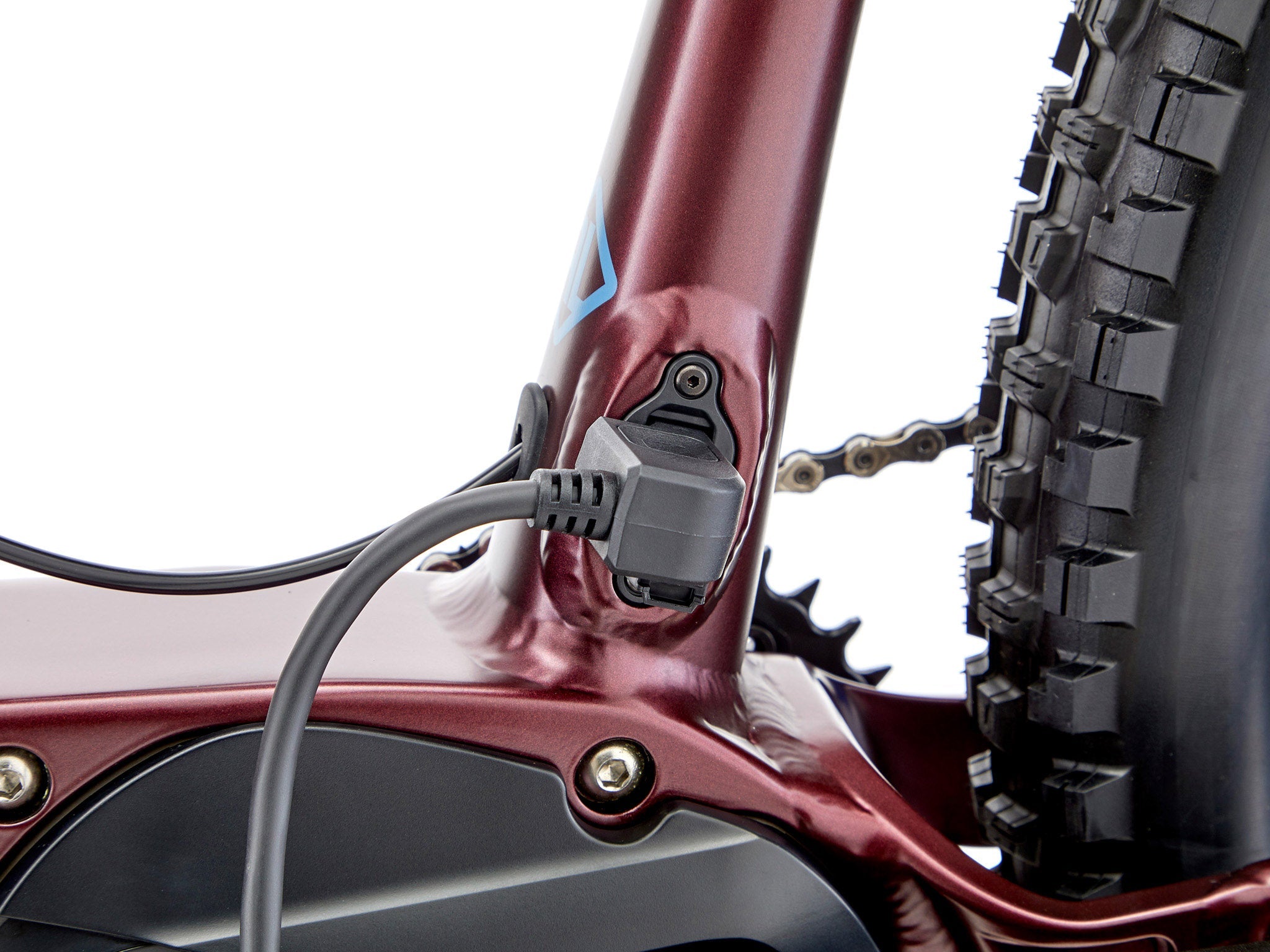

Charger Shimano STEPS 2A
batterylock n/a
Paint Color Satin Metallic Mauve w/ Blue-Gray Decals

All Kona e-bikes have passed EN 15194 (EPAC) and ISO 4210 testing.

All specifications are subject to change without notice.

GEOMETRY

  Size S M L XL
1 ST Length 385 410 450 485
2 TT Length 585 611 639 676
3 Reach 425 450 475 510
4 Stack 645 650 659 668
5 Standover 736 736 736 736
6 HT Angle 66 66 66 66
7 HT Length 115 120 130 140
8 ST Angle 76.1 76.1 76.1 76.1
9 CS Length 435 435 435 435
10 BB Drop 55 55 55 55
11 BB Height 320 320 320 320
12 Wheelbase 1175 1202 1231 1270
13 Front Center 744 771 800 839
14 Fork Length 551 551 551 551
15 Fork Offset 51 51 51 51
Bike Geometry

SIZING & SELECTION

GRAVEL / DROP BAR / URBAN

HEIGHT/INCHES HEIGHT/METRIC INSEAM/INCHES INSEAM/METRIC Rove/Jake Libre Sutra Dews CoCo
4'10"-5'1" 147-155cm 24”-27” 61-69cm 48cm 50cm 48cm N/A XS
5'0"-5'3" 152-160cm 26"-29" 66-74cm 48-50cm 50cm 48-50cm Small Small
5'2"-5'7" 157-170cm 27"-30" 69-76cm 48-52cm 50-52cm 48-52cm Small, Medium Small, Medium
5'6"-5'10" 168-178cm 29"-31" 74-79cm 52-54cm 52-54cm 52-54cm Medium Medium
5'9"-6'0" 175-183cm 30"-33" 76-84cm 52-56cm 54-56cm 54-56cm Medium, Large Medium, Large
5'11"-6'2" 180-188cm 32"-35" 81-89cm 54-58cm 54-58cm 54-58cm Large, XL Large
6'1"-6'5" 185-196cm 33"-36" 84-91cm 56-58cm 58cm 56-58cm XL N/A

MTB FULL SUSPENSION / HARDTAIL / SPLICE

HEIGHT/INCHES HEIGHT/METRIC INSEAM/INCHES INSEAM/METRIC MTB/XC Trail/Fat All Mountain/Enduro Splice
4'10"-5'1" 147-155cm 24”-27” 61-69cm XS XS Small
5'0"-5'3" 152-160cm 26"-29" 66-74cm Small Small Small
5'2"-5'7" 157-170cm 27"-30" 69-76cm Small, Medium Small, Medium Small, Medium
5'6"-5'10" 168-178cm 29"-31" 74-79cm Medium Medium Medium
5'9"-6'0" 175-183cm 30"-33" 76-84cm Medium, Large Medium, Large Medium, Large
5'11"-6'2" 180-188cm 32"-35" 81-89cm Large, XL Large, XL Large, XL
6'1"-6'5" 185-196cm 33"-36" 84-91cm Large, XL Large, XL Large, XL

Electric Mountain Bikes

We've fallen head over heels for electric mountain bikes. They're proven time and time again to bring the fun, a deeper sense of adventure, and more exploration than we ever thought possible. Whether you're hauling the camping gear to the fire pit with the El Kahuna SUV, going for an epic trail adventure on your Remote 130, or self-shuttling on the Remote 160, you're going to reach new levels of good times with Kona electric mountain bikes.

A bike for every adventure

Remote 130

Remote 160

El Kahuna SUV

The Remote 130, the Remote 160, and the all-new El Kahuna SUV

El Kahuna

Remote

Remote 160

The Remote 160 makes gravity riding completely self-sufficient. A fully-integrated battery keeps the lines clean. With 160mm of travel, powerful disc brakes, and the ability to crush the biggest of hills, you'll never miss a chairlift again.

The Remote 160 features a Shimano E7000 motor and display.

The Remote 160 is running a RockShox Gold RL DebonAir fork and Deluxe Select+ rear shock.

Remote 130

The Remote 130 strikes perfect harmony between an all-mountain trail bike and pedal-assist electric bike. Its geometry is derived from the Process 134 and features a 65° head tube angle, 435mm chainstays, and the same reach as its sister 134 bikes.

A sturdy aluminum frame holds Shimano’s E7000 motor and 504 Wh battery.

Tire clearance allows you to run up to a 29x2.5" tire.

Both the Remote 160 and the Remote 130 have a durable, removable battery cover that stands up to abuse from trail debris.

El Kahuna SUV

The new El Kahuna SUV is the perfect answer to your gear-hauling needs. No more struggling to carry heavy loads. A rear rack hauls the pony keg and your tent, while front and rear lights illuminate the path to ensure you don't get lost on the way to the fire pit.

A long-lasting 630 Wh battery provides a longer ride, so more adventures are within reach.

The ROCKSHOX 35 SILVER R fork features 100mm of air-sprung travel.

Schwalbe G-One Allround 29x2.25" tires add an extra bit of traction to every ride.

The rear rack integrates seamlessly with the fender for a clean design.

Front and rear Busch and Müller lights illuminate the darkest of trails and roads.

Hauling gear can make stopping challenging. Fortunately, the kickstand will keep things upright and balanced.

Remote

With geometry similar to that of a Honzo DL, and featuring a 140mm fork, the Remote is the ultimate electric hardtail weapon for full-on trail shredding.

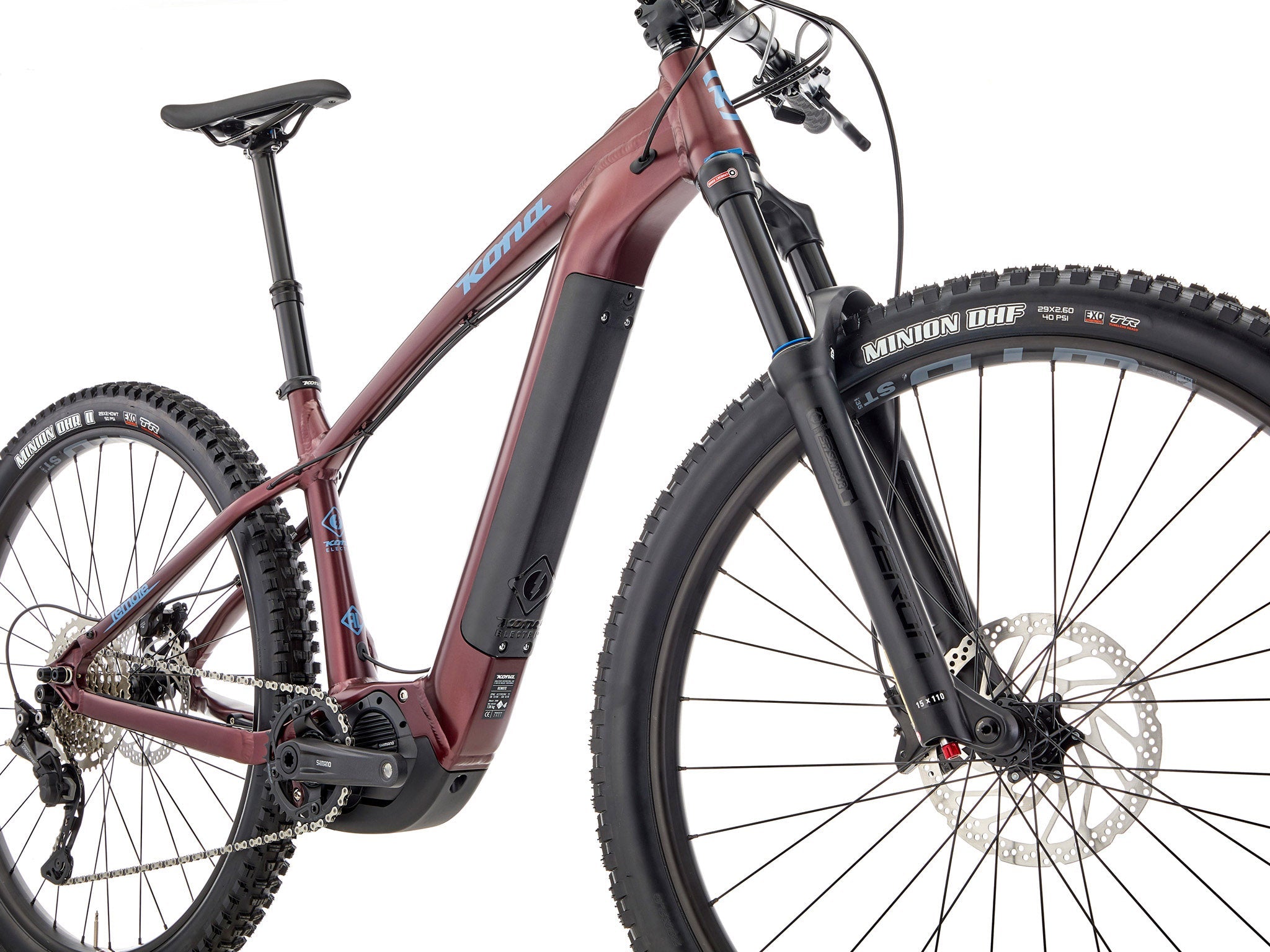

A fully-integrated 504 Wh internal battery runs Shimano's E7000 motor.

The reach of the Remote matches the reach of the Honzo DL.

A 76° seat tube angle and 66° head tube angle put the rider in a position that is comfortable to pedal, and perfect for descending.
