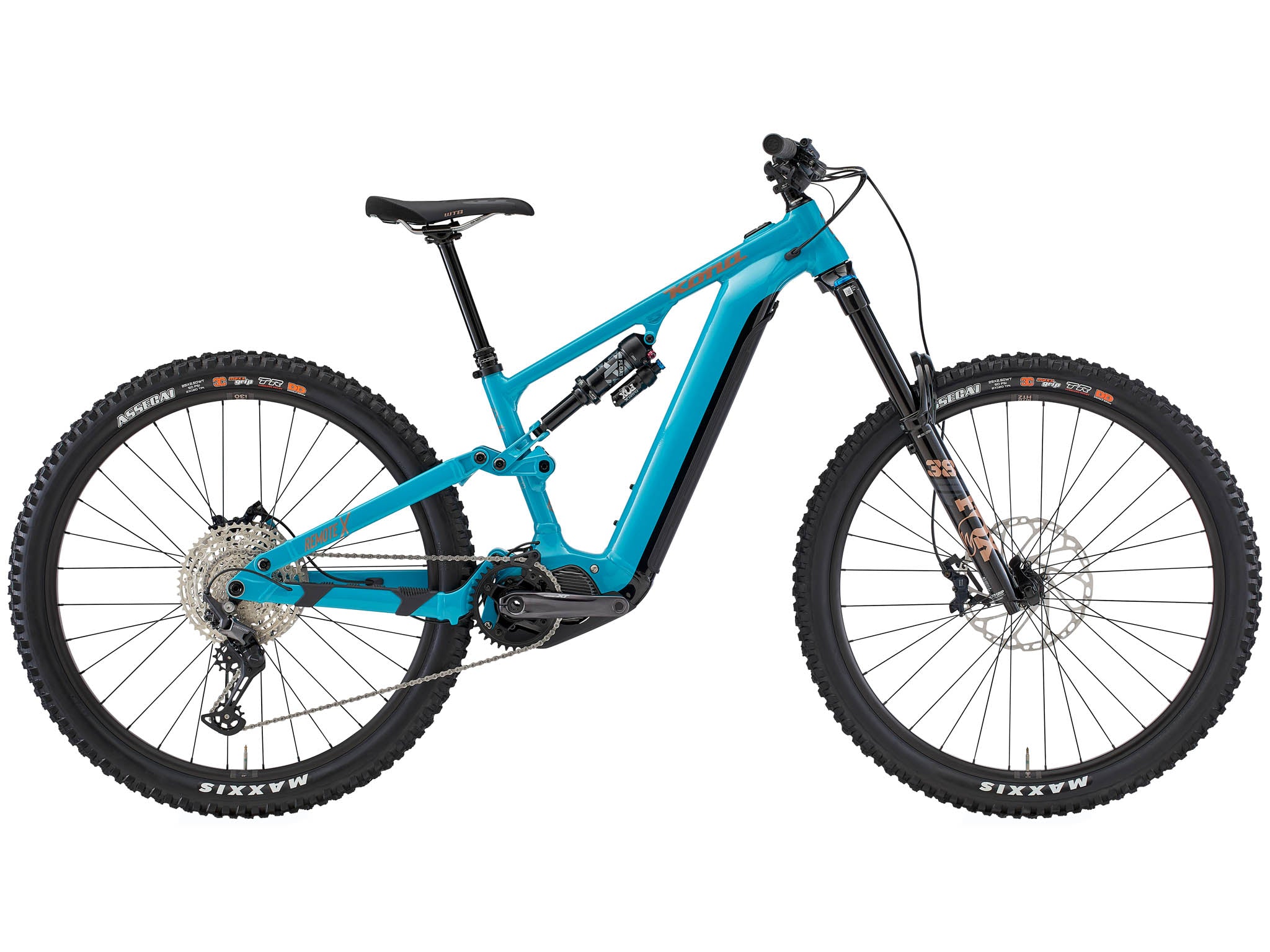

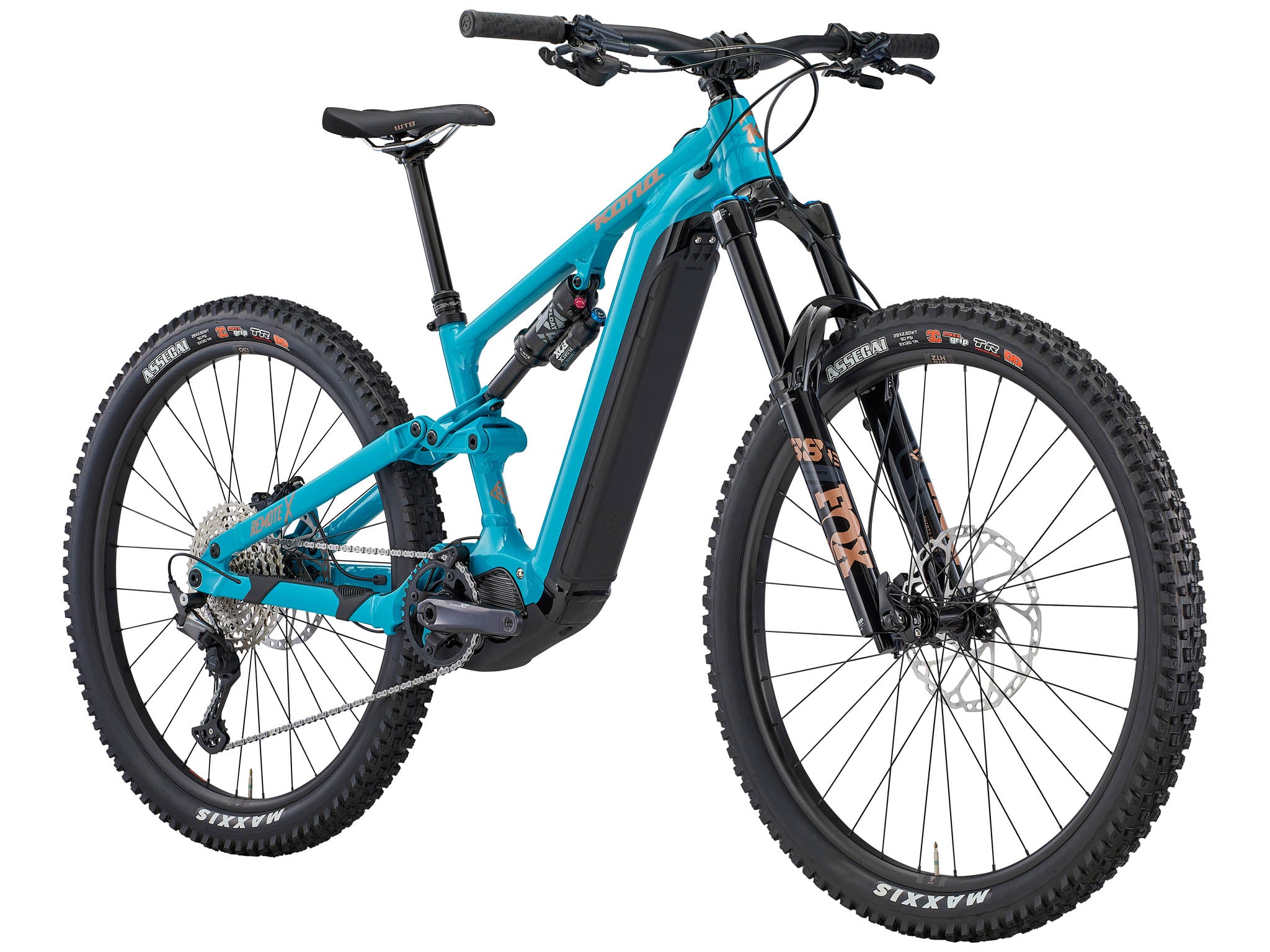

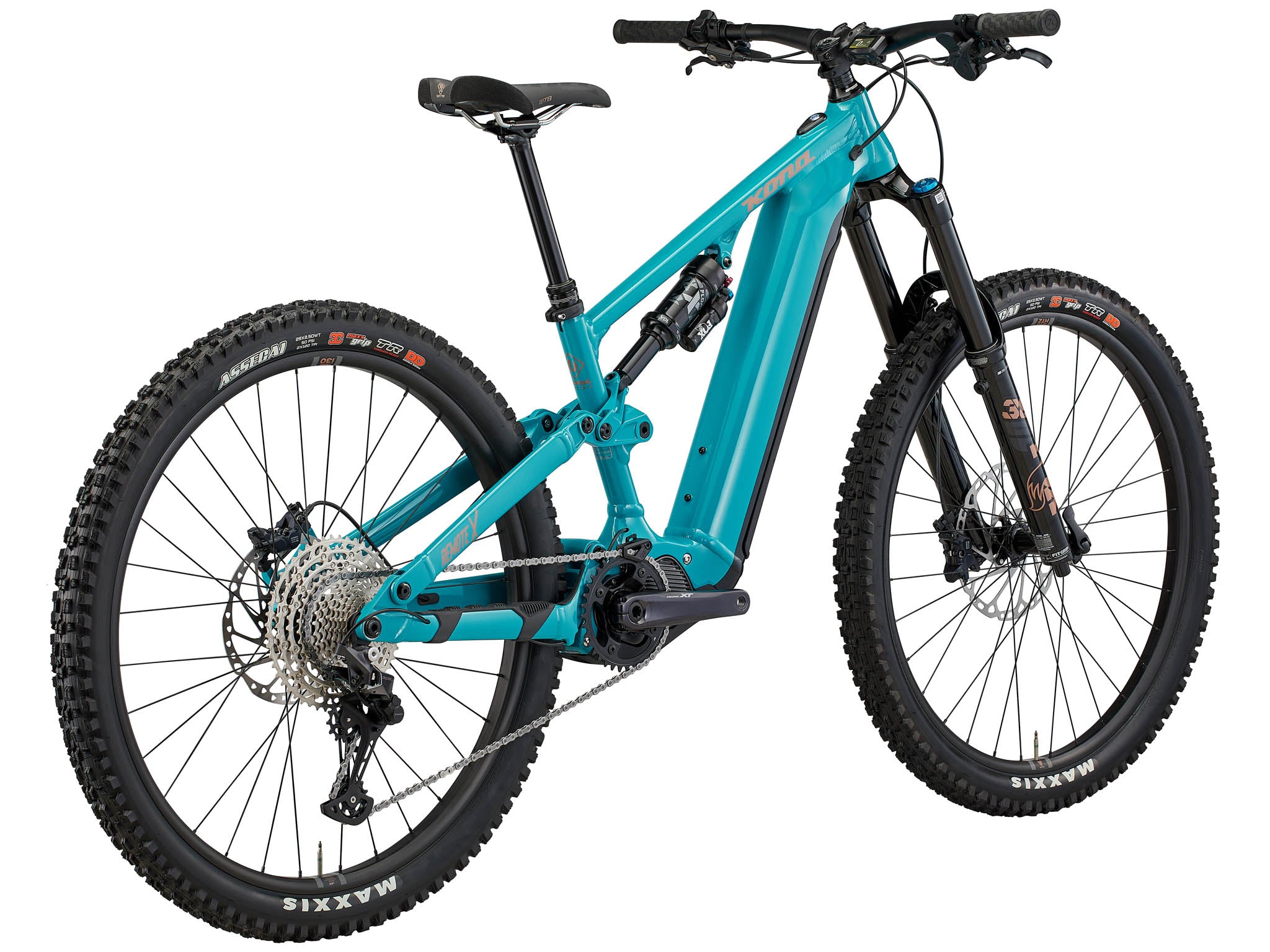

Taking the amplification of the Process X to a mad scientist approved logical conclusion, we bring you the Remote X. For those times when “big enough” and “good enough” are not enough, the Remote X brings 180mm of travel and a Shimano EP8 motor assist to the gravity party along with an appetite for mayhem. Built for high speed and big hits in gnarly terrain, the Remote X is your invitation to leave the shuttle rigs behind and go hammer out the vertical without any middlemen. Spend less time behind the wheel, log way more time on two wheels, or one wheel, or getting plenty of breathing room beneath your wheels. A 612Wh battery keeps the fun times ripping for lap after lap, the super composed handling keeps you in control no matter how hectic things get, and burly, highly evolved Kona construction ensure that everything stays in one piece no matter how hard you shred.
SPECS & GEOMETRY
SPECIFICATIONS
| Frame Material | Kona 6061 Aluminum Butted 178mm Travel |
| Sizes | S, M, L, XL |

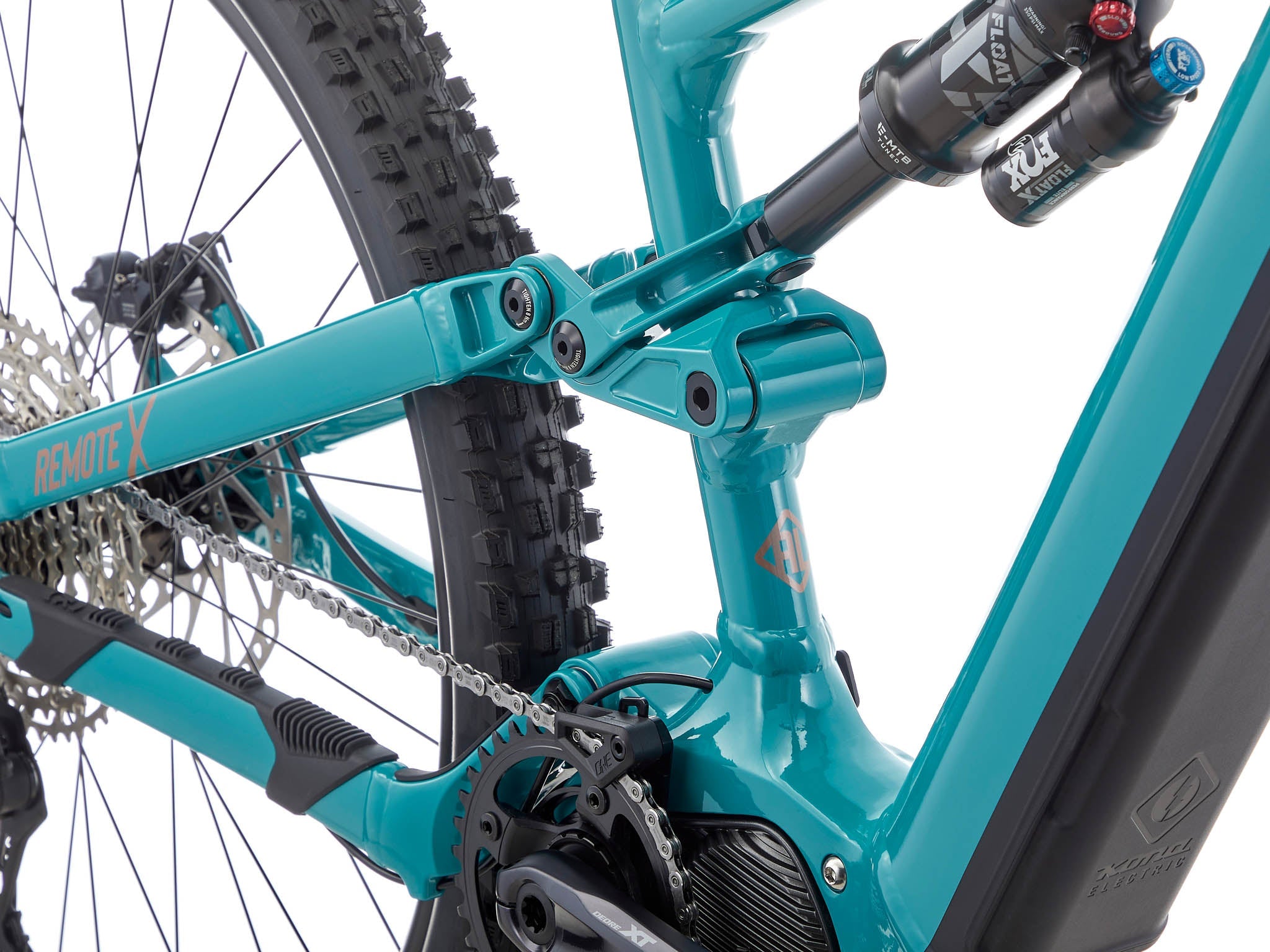

| Rear Shock | Fox Float X Performance Elite |
| Fork | Fox 38 Performance 180mm Tapered 110 Spacing |
| Crankarms | Shimano Deore XT |
| Chainrings | 36t |
| B/B | n/a |
| Pedals | n/a |
| Chain | Shimano Deore |
| Cassette | Shimano Deore 10-51t 12spd |
| Chainguide | OneUp Steps |
| F/D | n/a |
| R/D | Shimano Deore |
| Shifters | Shimano Deore |
| Brake Calipers | Shimano SLX |
| Front Brake Rotor | Shimano RT64 220mm (centerlock) |
| Rear Brake Rotor | Shimano RT64 203mm (centerlock) |
| Brake Levers | Shimano SLX |
| Headset | FSA No.57E |
| Handlebar | Kona XC/BC 35 |
| Stem | Kona XC/BC 35 |
| Seatpost | TranzX Dropper +RAD Internal 31.6mm |
| Seat Clamp | Kona Clamp |
| Grips | Kona Key Grip |
| Saddle | WTB Volt |
| Front Hub | Formula 110x15mm (centerlock) |
| Rear Hub | Formula 148x12mm (centerlock) |
| Spokes | Stainless Black 14g |
| Rims | WTB HTZ i30 TCS 2.0 |
| Front Tire | Maxxis Assegai DD TR 3C 29x2.5" WT |
| Rear Tire | Maxxis Assegai DD TR 3C 29x2.5" WT |

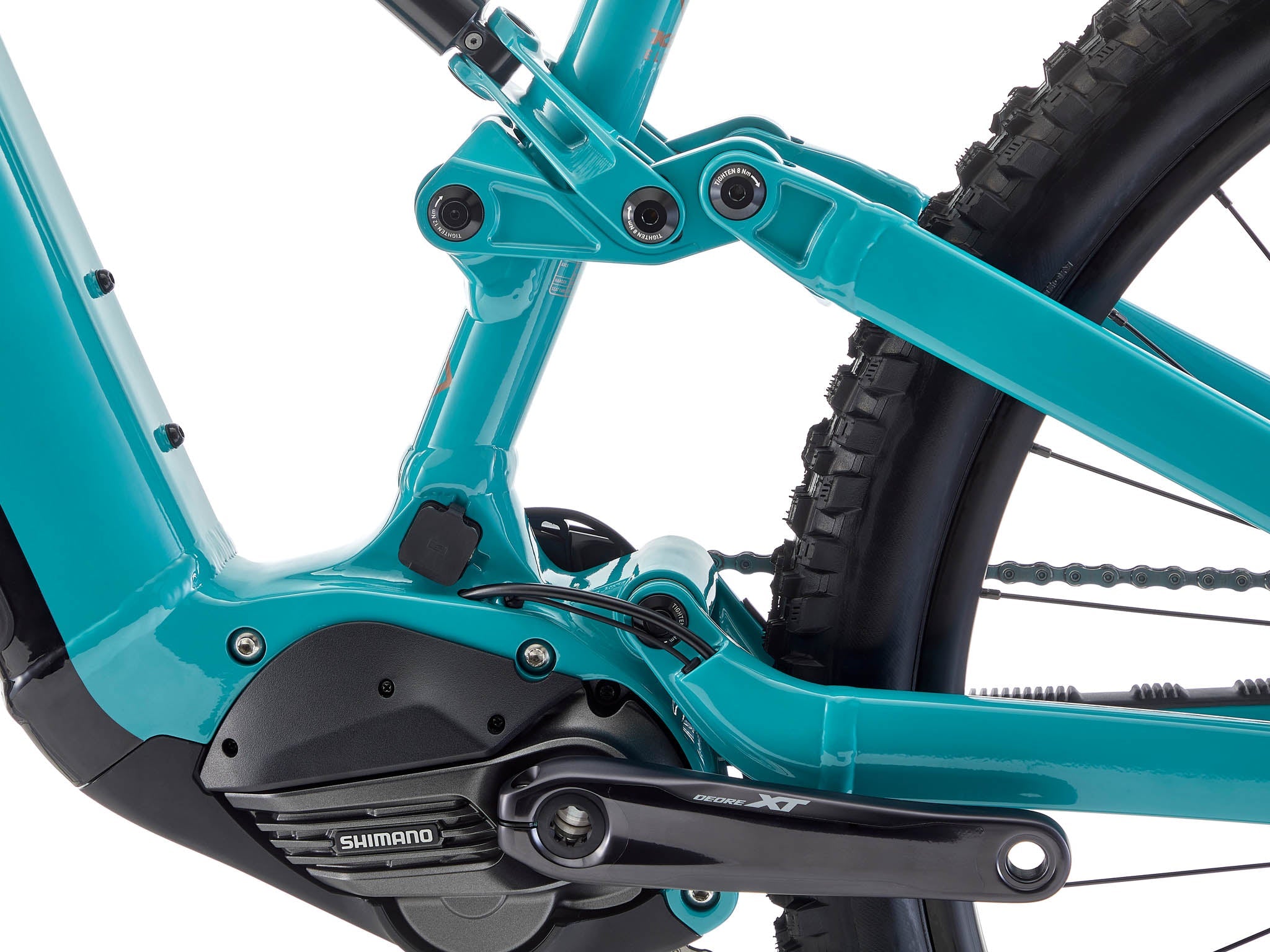

| DriveUnit | Shimano EP800 20MPH |
| Battery | Darfon 612Wh |
| Display | Shimano SC-EM800 Display |
| Charger | Darfon Smart 4A |
| BatteryLock | n/a |
| Paint Color | Gloss Viridian w/ Metallic Bronze Decals |
| Extras | n/a |
All Kona e-bikes have passed EN 15194 (EPAC) and ISO 4210 testing.
All specifications are subject to change without notice.
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 380 | 380 | 420 | 450 |
| 2 | TT Length | 568 | 593 | 621 | 660 |
| 3 | Reach | 430 | 455 | 480 | 515 |
| 4 | Stack | 635 | 635 | 645 | 655 |
| 5 | Standover | 765 | 765 | 770 | 775 |
| 6 | HT Angle | 63.5 | 63.5 | 63.5 | 63.5 |
| 7 | HT Length | 110 | 110 | 121 | 133 |
| 8 | ST Angle | 77.8 | 77.8 | 77.7 | 77.5 |
| 9 | CS Length | 440 | 440 | 440 | 440 |
| 10 | BB Drop | 20 | 20 | 20 | 20 |
| 11 | BB Height | 355 | 355 | 355 | 355 |
| 12 | Wheelbase | 1225 | 1250 | 1280 | 1320 |
| 13 | Front Center | 786 | 811 | 841 | 881 |
| 14 | Fork Length | 596 | 596 | 596 | 596 |
| 15 | Fork Offset | 44 | 44 | 44 | 44 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
Call2Recycle FAQ
Does Kona participate in any ebike battery recycling programs?
Yep! Kona has partnered with Call2Recycle to take care of all battery recycling at the end of their life.
Who is Call2Recycle?
Call2Recycle is the country’s largest consumer battery stewardship and recycling program, with a network of thousands of public collection sites. Founded in the mid-1990s as a voluntary, industry-run initiative to keep the heavy metals from rechargeable batteries out of the solid waste stream.
Are there any fees associated with this service?
Yes, the structure is set up so that the eco fee is passed along the chain to the end consumer. These fees ensure that the program runs effectively and that all collection sites can be outfitted with the appropriate safety and recycling materials. Here’s how it works:
- As the importer of record, Kona will remit the fees to C2R. It’s $15 per electric bike or aftermarket battery.
- Kona will be passing the eco fee to the dealer when they are shipped any ebikes or batteries.
- The consumer buying the bike or battery will pay the dealer the fee.
- This fee ensures that when your battery has reached the end of its life that it will be safely recycled and there will be no additional fee.
Do I need to pay a fee when the battery is ready to be recycled too?
Nope. The fee you paid at the time of purchase is the only fee you’ll ever need to pay to recycle your battery.
Will my dealer take the battery when I can no longer use it?
This will vary from dealer to dealer as it’s up to them if they want to sign up to be a battery collection site. You can find a participating dealer near you on the call2recycle locator.
I’m a dealer and want to become a collection site. How do I sign up?
Great! The more collection sites the better! It costs nothing to become a collection site. Find out more info here. Once registered, you will complete a short training and have access to recycling and safety materials
I’m a consumer and my local dealer isn’t a collection site. Where can I recycle my batteries?
We will do our best to encourage our dealer network to participate in the program, but if they haven’t had time or choose not to participate, please use the locator to find your nearest location.
Why should I recycle my batteries?
Ensuring your e-bike battery is disposed of in the proper waste stream is an important part of responsible e-bike ownership. Metals in both batteries and cellphones can be recycled and used in new products such as new batteries, stainless steel alloy and cement additives. Recycling reduces the need to mine for virgin material to manufacture these products. Additionally, Universal waste laws prohibit throwing lithium-ion batteries in the trash as they pose safety risks to people, property, and the natural environment. The Call2Recycle program ensures these products are safely and compliantly recycled through the proper channels.
Where can I find more information aboutCall2Recycle?
Right here!
