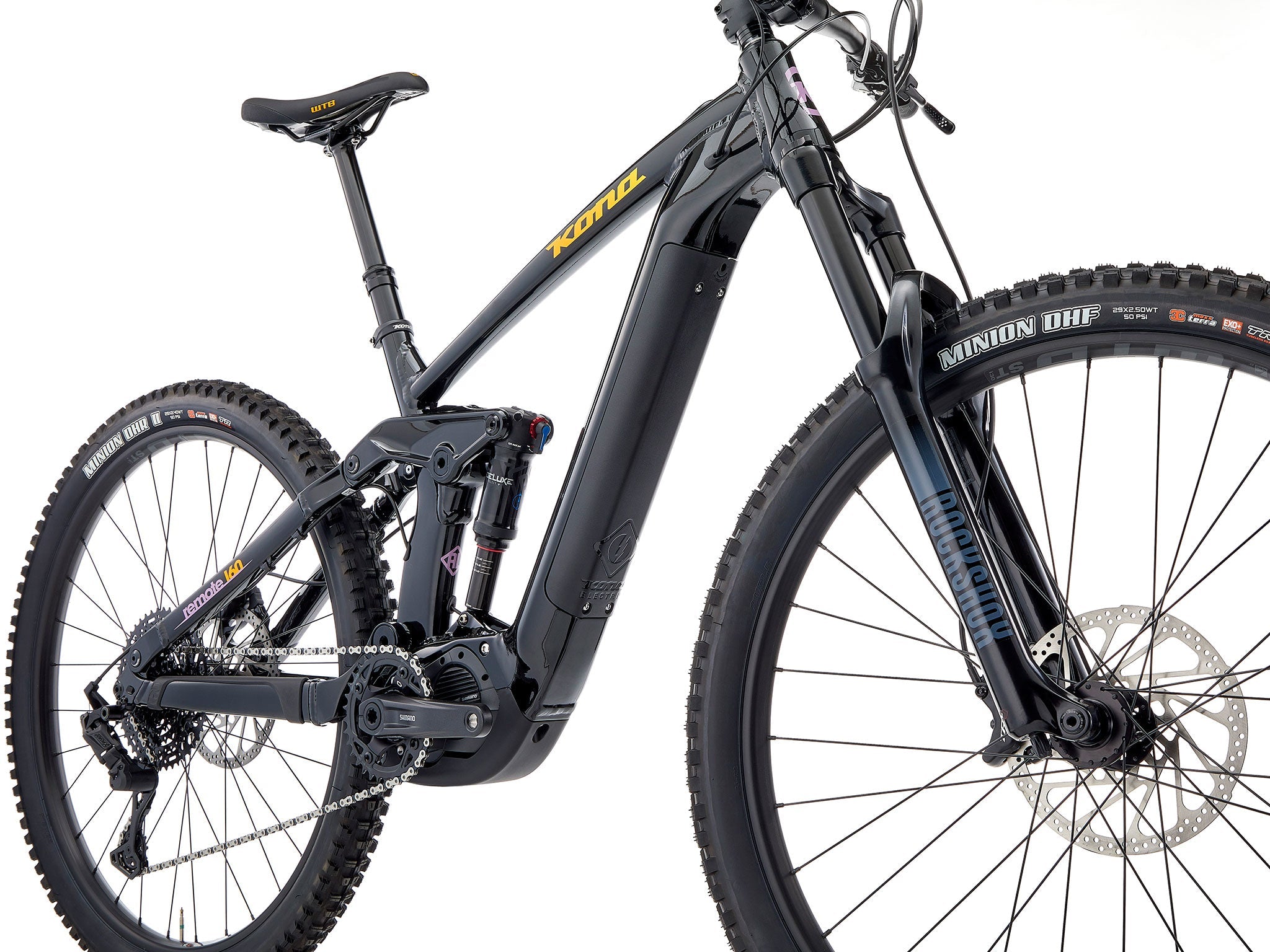

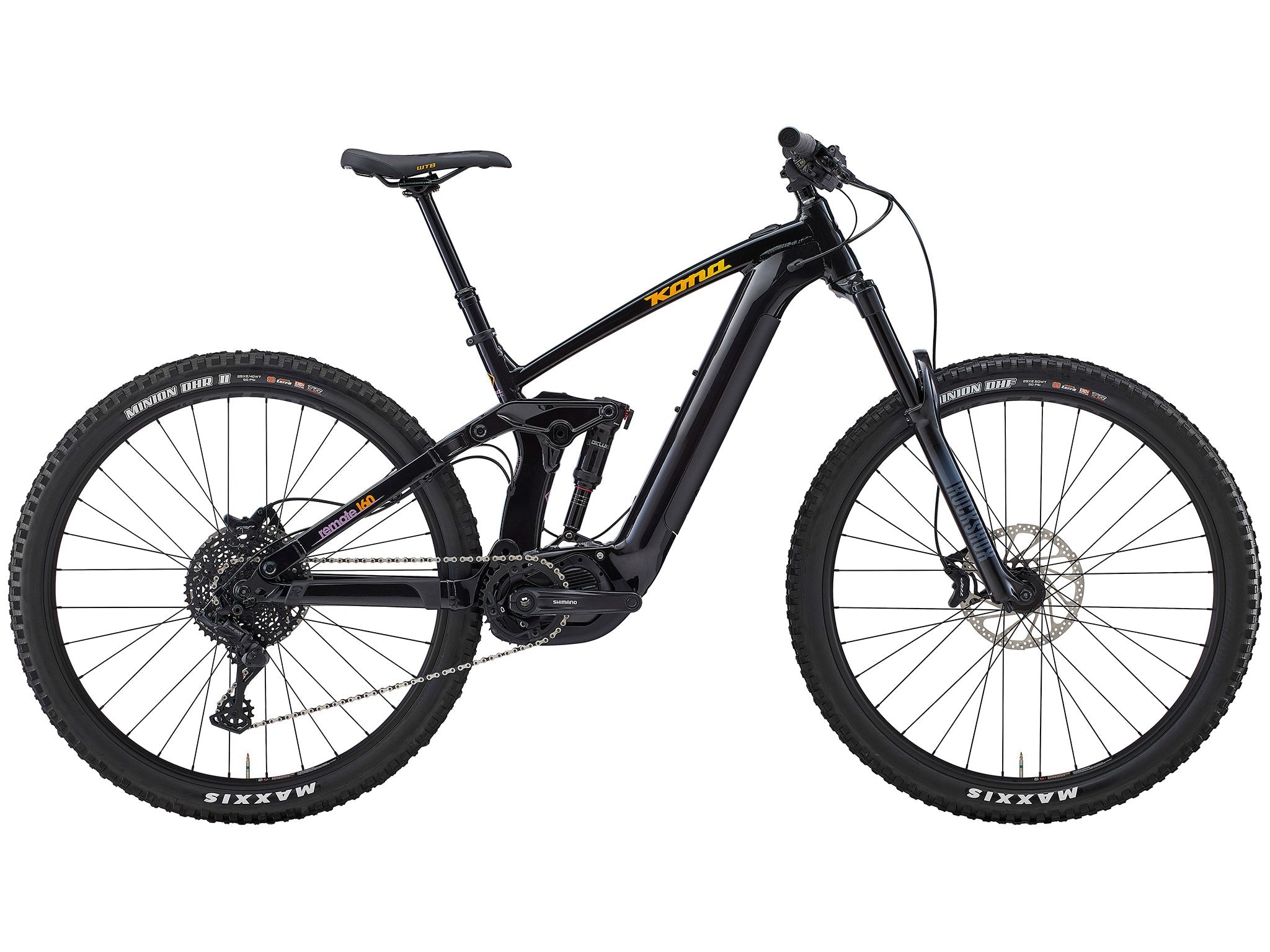

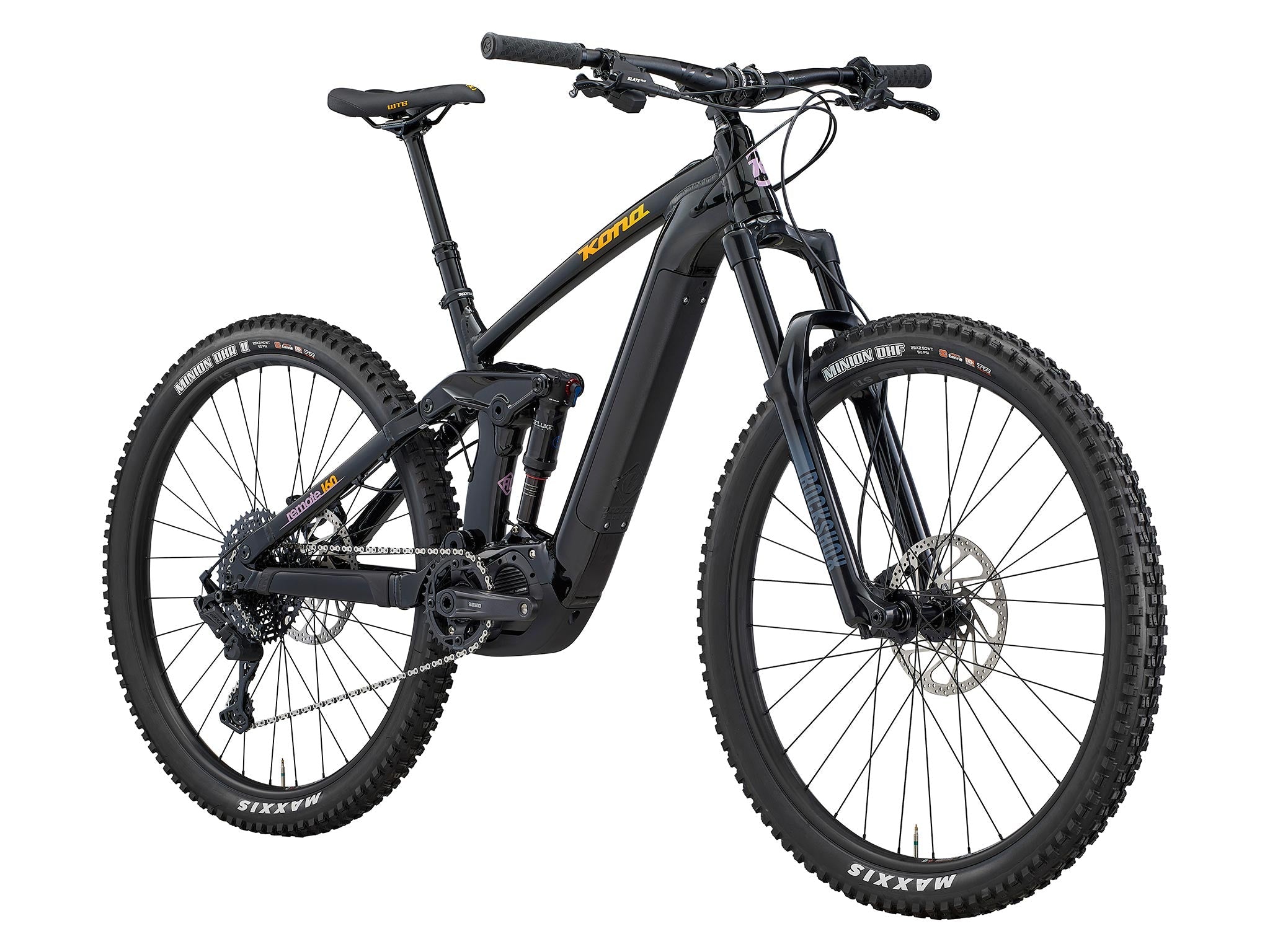

The Remote 160 brings the joy of a longer travel of an e-MTB to the masses. A 29” wheeled ripper, this bike brings all the fun of a 160mm travel e-MTB in a more affordable package. A Shimano motor and battery provide a customizable amount of pedal-assist ensuring you have the exact amount of power you want when you want it. Ultra-powerful hydraulic disc brakes and 200mm rotors front and rear provide controlled stopping even when you’re hauling ass on steeper terrain. No matter what your reasoning, the Remote 160 will have you laughing up and down the trails.
SPECS & GEOMETRY
SPECIFICATIONS
| Frame Material | Kona 6061 Aluminum Butted 160mm Travel |
| Sizes | S, M, L, XL |

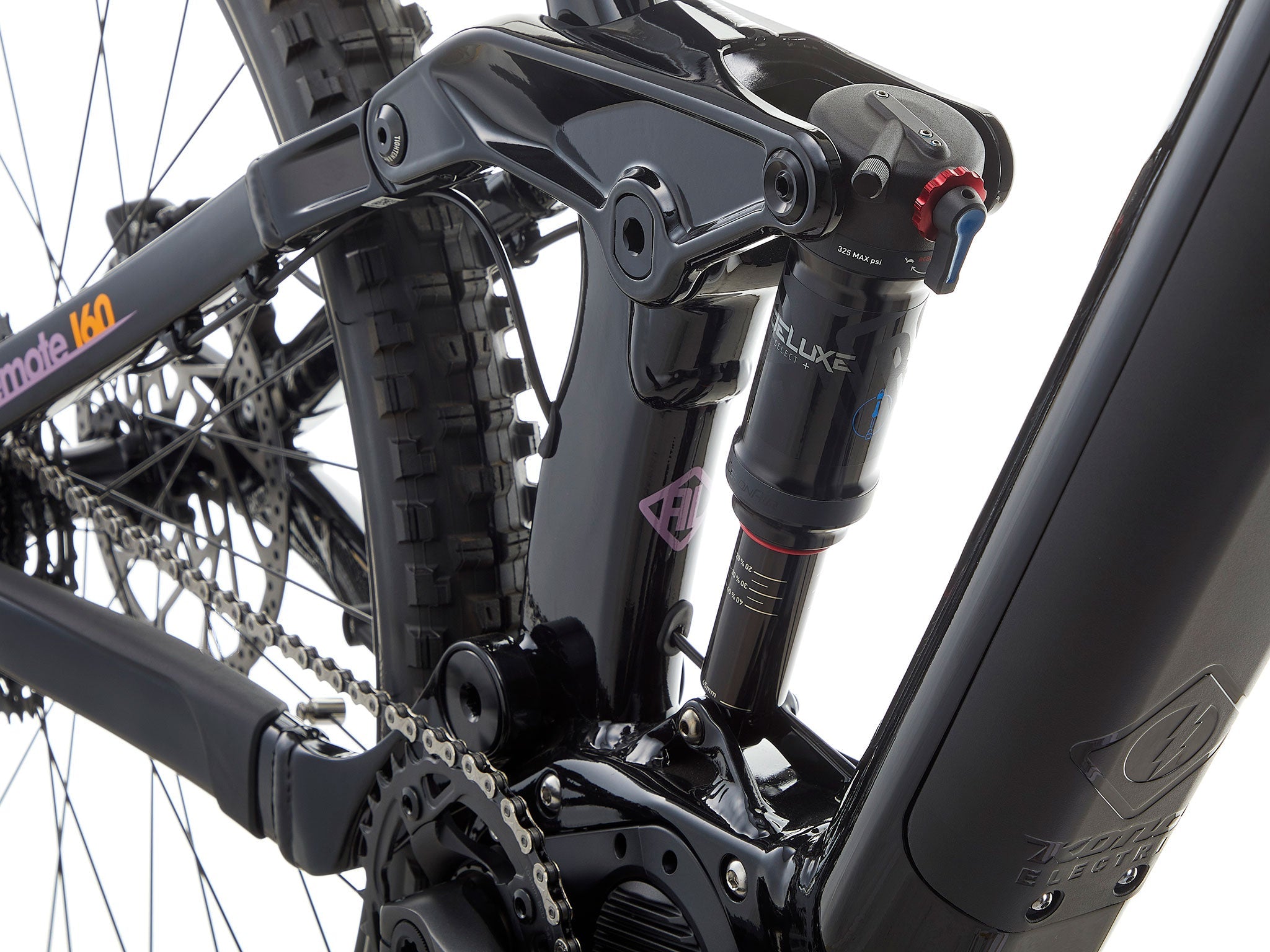

| Rear Shock | RockShox Deluxe Select + Trunnion |
| Fork | RockShox 35 Gold RL DebonAir 160mm Tapered 110 Spacing |
| Crankarms | Shimano E8000 |
| Chainrings | 34t |
| B/B | n/a |
| Pedals | n/a |
| Chain | KMC X10 |
| Cassette | Microshift Advent X 11-48t 10spd |
| Chainguide | n/a |
| F/D | n/a |
| R/D | Microshift Advent X |
| Shifters | Microshift Advent X |

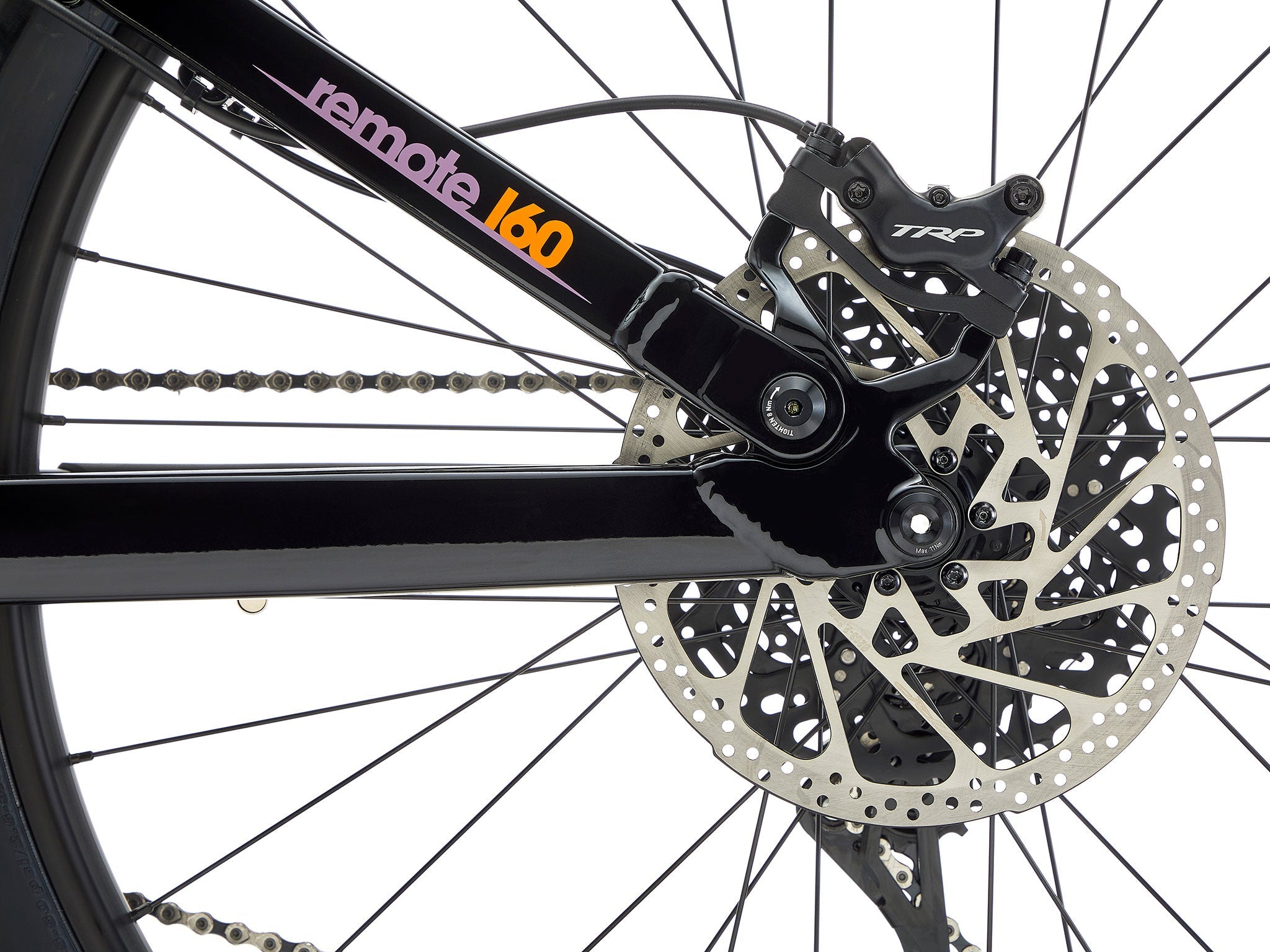

| Brake Calipers | TRP Slate EVO |
| Front Brake Rotor | TRP R203S01E 203mm |
| Rear Brake Rotor | TRP R203S01E 203mm |
| Brake Levers | TRP Slate EVO |
| Headset | FSA No.57E |
| Handlebar | Kona XC/BC 35 |
| Stem | Kona XC/BC 35 |
| Seatpost | TranzX Dropper Internal 31.6mm |
| Seat Clamp | Kona Clamp |
| Grips | Kona Key Grip |
| Saddle | WTB Volt |
| Front Hub | Formula 110x15mm |
| Rear Hub | Formula 157x12mm |
| Spokes | Stainless Black 14g |
| Rims | WTB ST i30 TCS 2.0 |
| Front Tire | Maxxis Minion DHF EXO+ TR 3C 29x2.5" WT |
| Rear Tire | Maxxis Minion DHR II EXO+ TR 3C 29x2.5" WT |
| DriveUnit | Shimano E7000 20MPH |
| Battery | Shimano 504Wh |
| Display | Shimano SC-E7000 Display |
| Charger | Shimano STEPS 2A |
| Paint Color | Gloss Black w/ Furnace Fade & Purple Decals |
All Kona e-bikes have passed EN 15194 (EPAC) and ISO 4210 testing.
All specifications are subject to change without notice.
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 385 | 410 | 450 | 485 |
| 2 | TT Length | 579 | 606 | 635 | 674 |
| 3 | Reach | 425 | 450 | 475 | 510 |
| 4 | Stack | 615 | 620 | 629 | 638 |
| 5 | Standover | 743 | 759 | 755 | 770 |
| 6 | HT Angle | 65.0 | 65.0 | 65.0 | 65.0 |
| 7 | HT Length | 115 | 120 | 130 | 140 |
| 8 | ST Angle | 75.9 | 75.9 | 75.7 | 75.6 |
| 9 | CS Length | 435 | 435 | 435 | 435 |
| 10 | BB Drop | 15 | 15 | 15 | 15 |
| 11 | BB Height | 345 | 345 | 345 | 345 |
| 12 | Wheelbase | 1196 | 1223 | 1252 | 1291 |
| 13 | Front Center | 761 | 788 | 818 | 857 |
| 14 | Fork Length | 571 | 571 | 571 | 571 |
| 15 | Fork Offset | 51 | 51 | 51 | 51 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
Electric Mountain Bikes
We've fallen head over heels for electric mountain bikes. They're proven time and time again to bring the fun, a deeper sense of adventure, and more exploration than we ever thought possible. Whether you're hauling the camping gear to the fire pit with the El Kahuna SUV, going for an epic trail adventure on your Remote 130, or self-shuttling on the Remote 160, you're going to reach new levels of good times with Kona electric mountain bikes.
A bike for every adventure
Remote 130
Remote 160
El Kahuna SUV
The Remote 130, the Remote 160, and the all-new El Kahuna SUV
El Kahuna
Remote
Remote 160
The Remote 160 makes gravity riding completely self-sufficient. A fully-integrated battery keeps the lines clean. With 160mm of travel, powerful disc brakes, and the ability to crush the biggest of hills, you'll never miss a chairlift again.

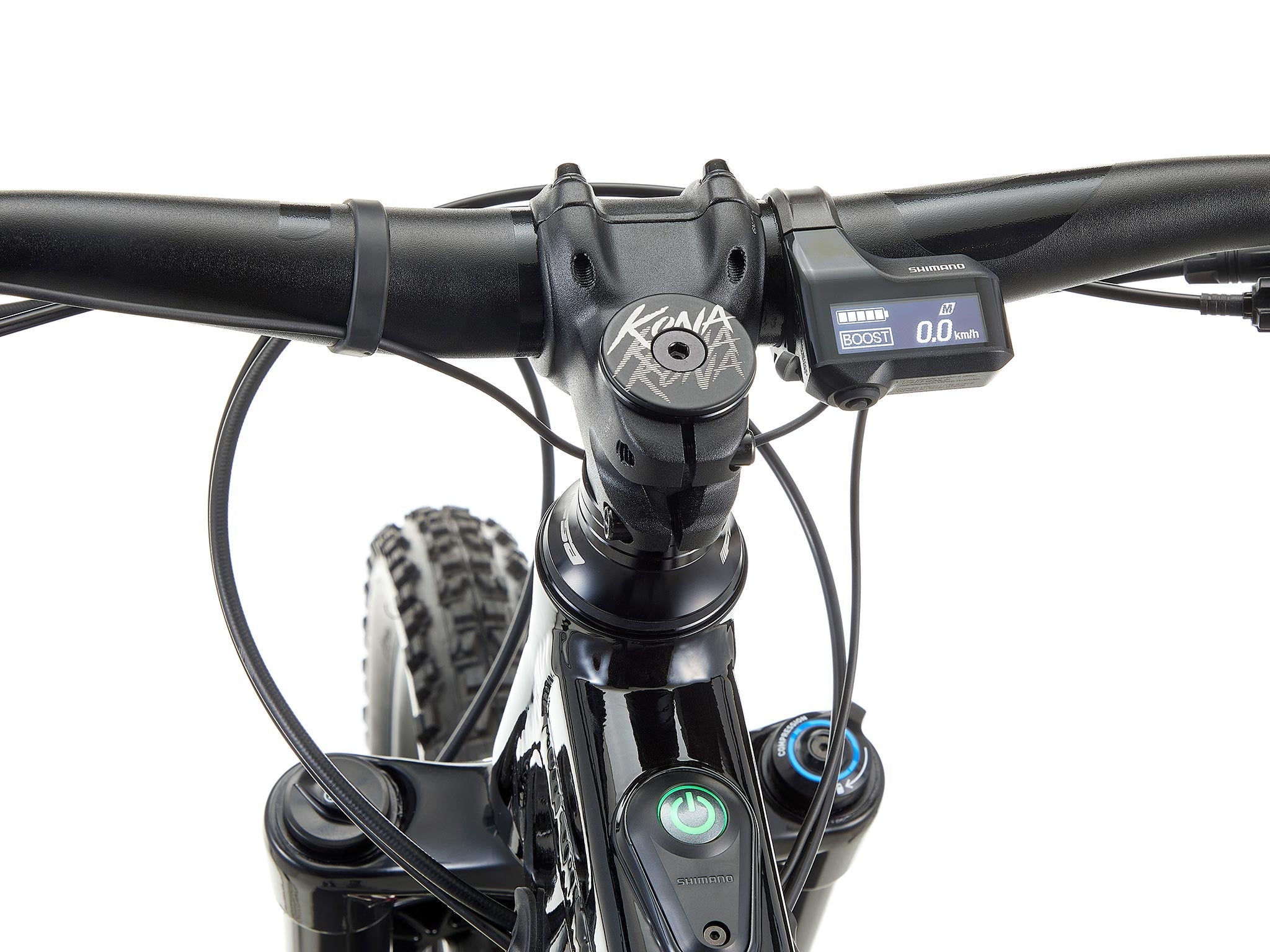

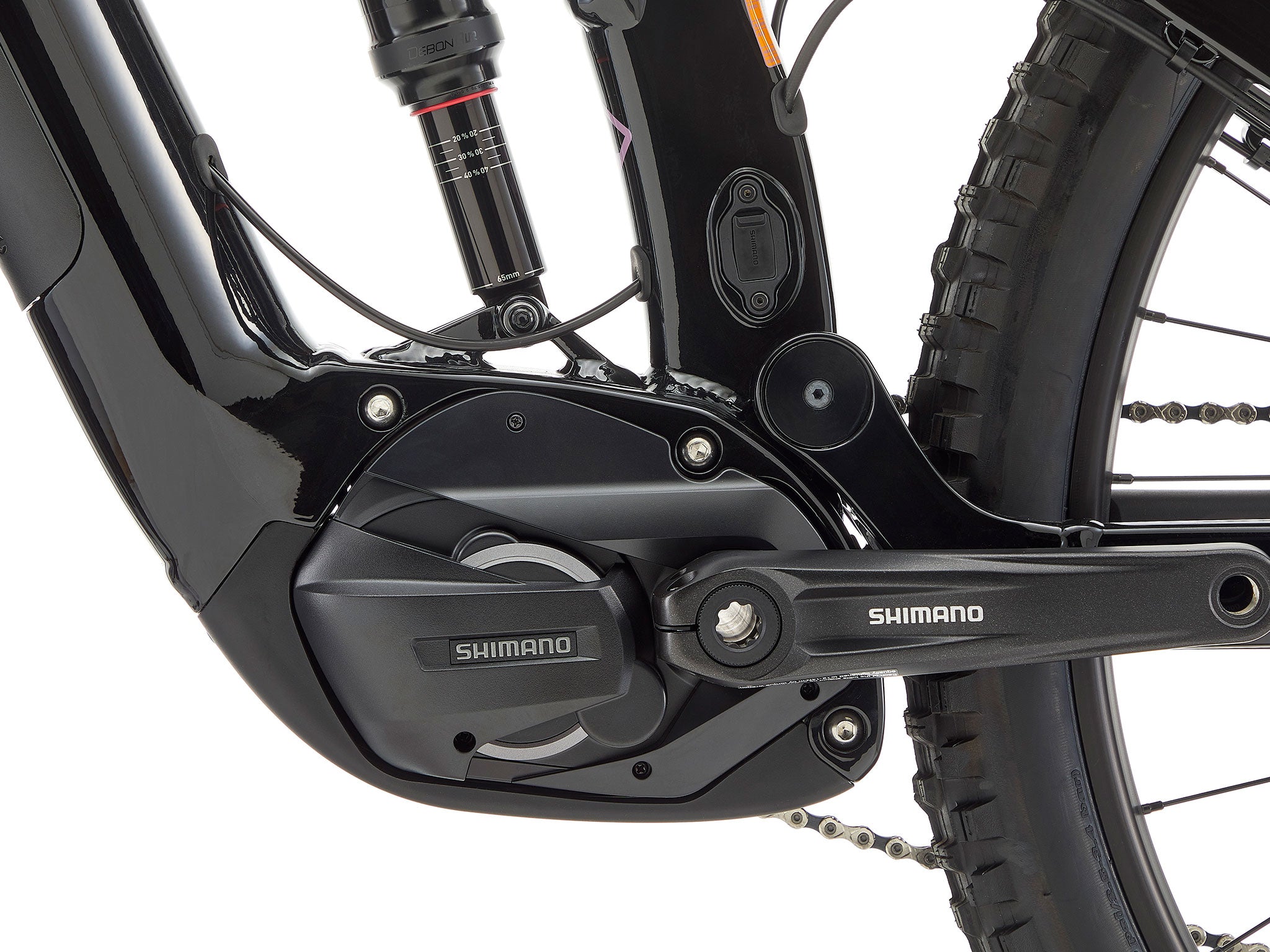

The Remote 160 features a Shimano E7000 motor and display.

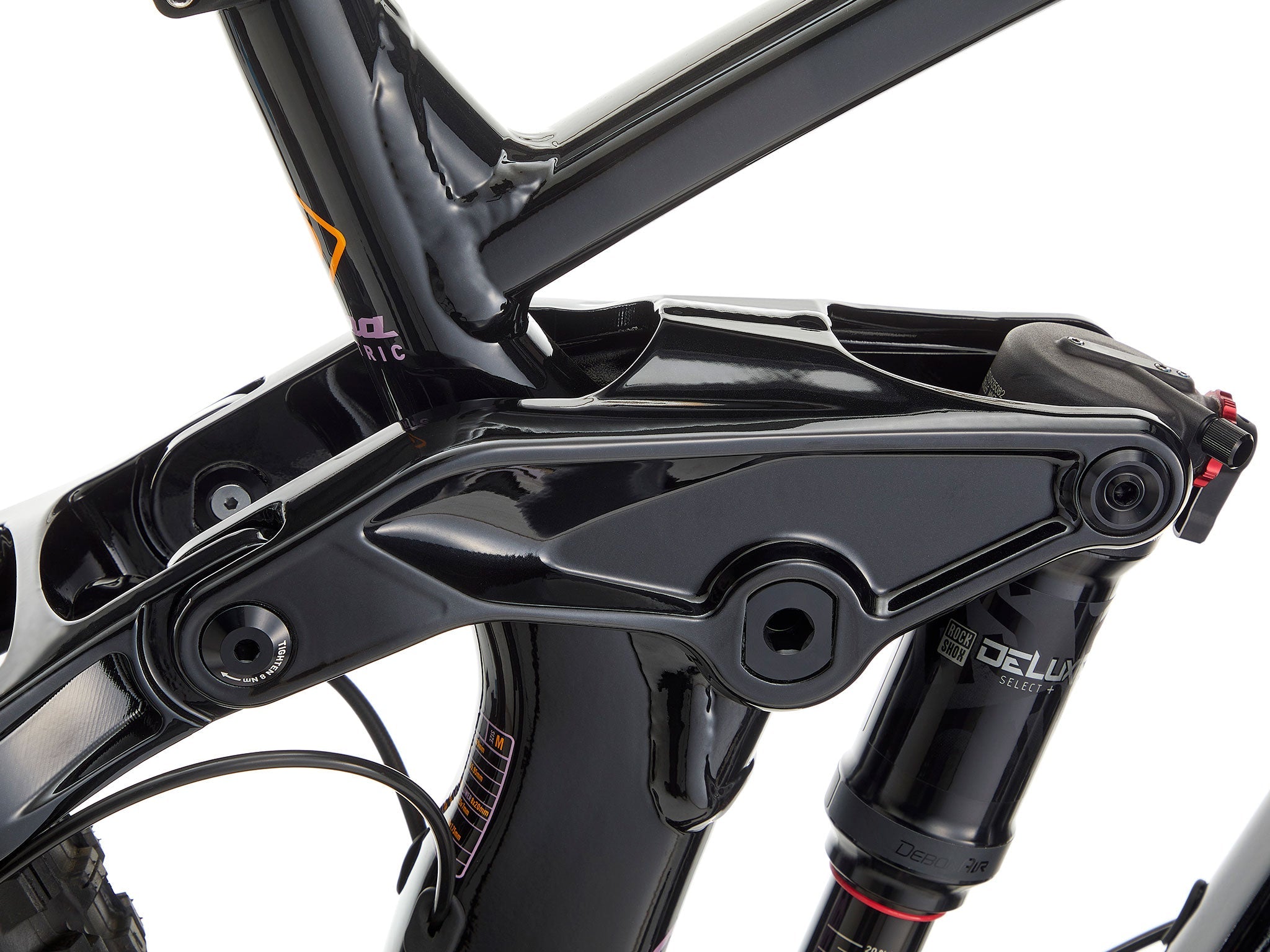

The Remote 160 is running a RockShox Gold RL DebonAir fork and Deluxe Select+ rear shock.
Remote 130
The Remote 130 strikes perfect harmony between an all-mountain trail bike and pedal-assist electric bike. Its geometry is derived from the Process 134 and features a 65° head tube angle, 435mm chainstays, and the same reach as its sister 134 bikes.
A sturdy aluminum frame holds Shimano’s E7000 motor and 504 Wh battery.
Tire clearance allows you to run up to a 29x2.5" tire.

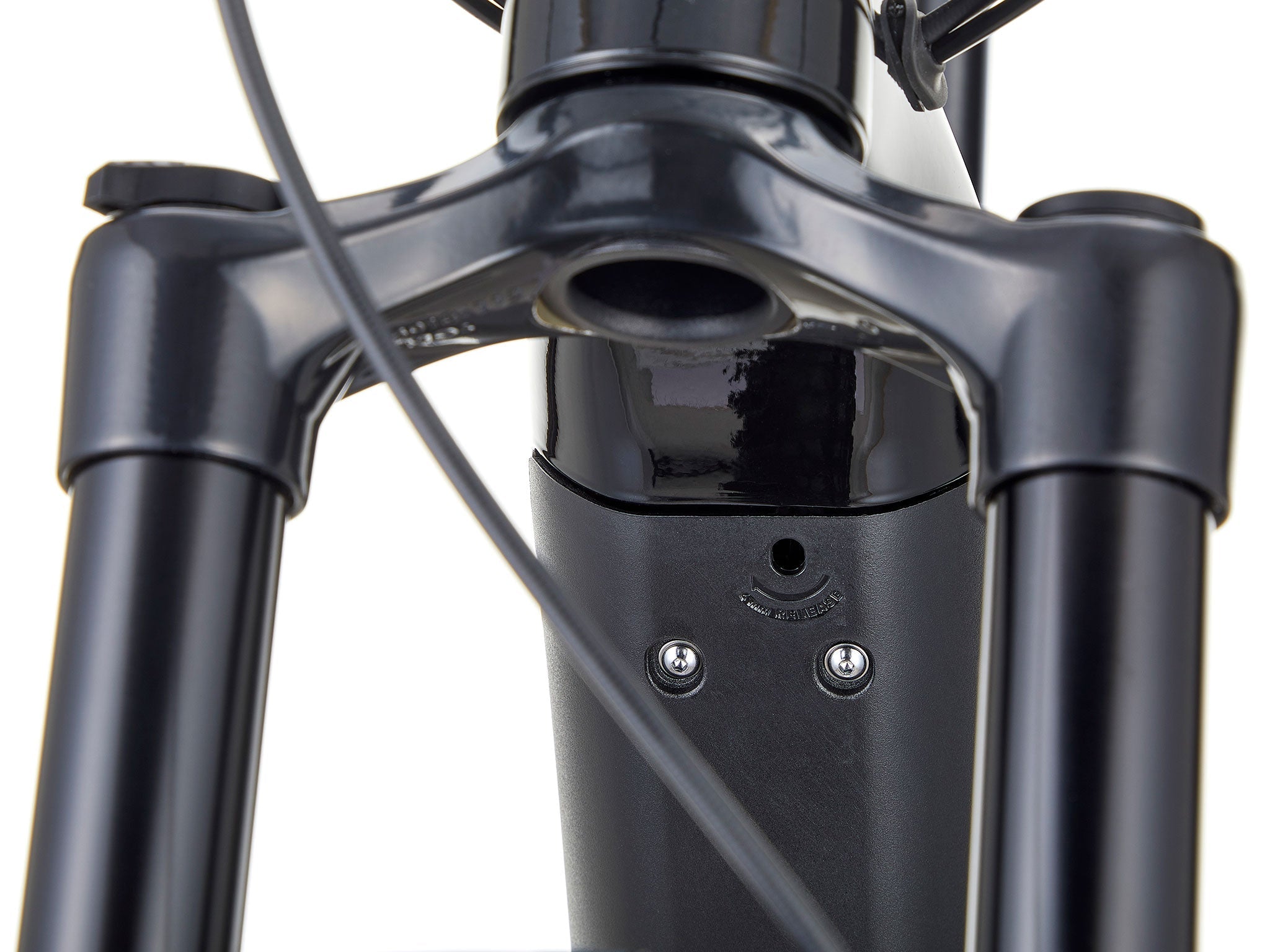

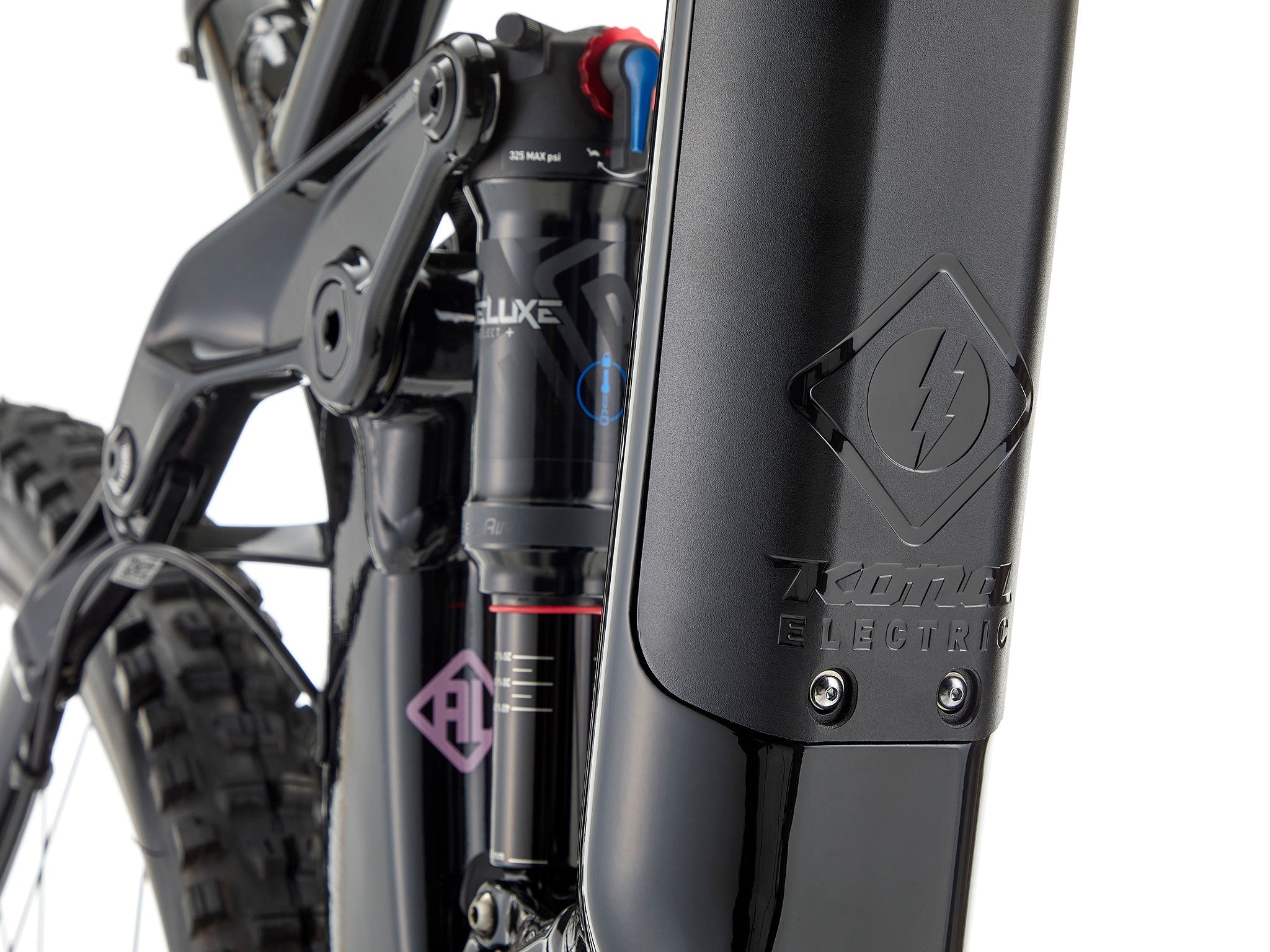

Both the Remote 160 and the Remote 130 have a durable, removable battery cover that stands up to abuse from trail debris.
El Kahuna SUV
The new El Kahuna SUV is the perfect answer to your gear-hauling needs. No more struggling to carry heavy loads. A rear rack hauls the pony keg and your tent, while front and rear lights illuminate the path to ensure you don't get lost on the way to the fire pit.
A long-lasting 630 Wh battery provides a longer ride, so more adventures are within reach.
The ROCKSHOX 35 SILVER R fork features 100mm of air-sprung travel.
Schwalbe G-One Allround 29x2.25" tires add an extra bit of traction to every ride.
The rear rack integrates seamlessly with the fender for a clean design.
Front and rear Busch and Müller lights illuminate the darkest of trails and roads.
Hauling gear can make stopping challenging. Fortunately, the kickstand will keep things upright and balanced.
Remote
With geometry similar to that of a Honzo DL, and featuring a 140mm fork, the Remote is the ultimate electric hardtail weapon for full-on trail shredding.
A fully-integrated 504 Wh internal battery runs Shimano's E7000 motor.
The reach of the Remote matches the reach of the Honzo DL.
A 76° seat tube angle and 66° head tube angle put the rider in a position that is comfortable to pedal, and perfect for descending.
