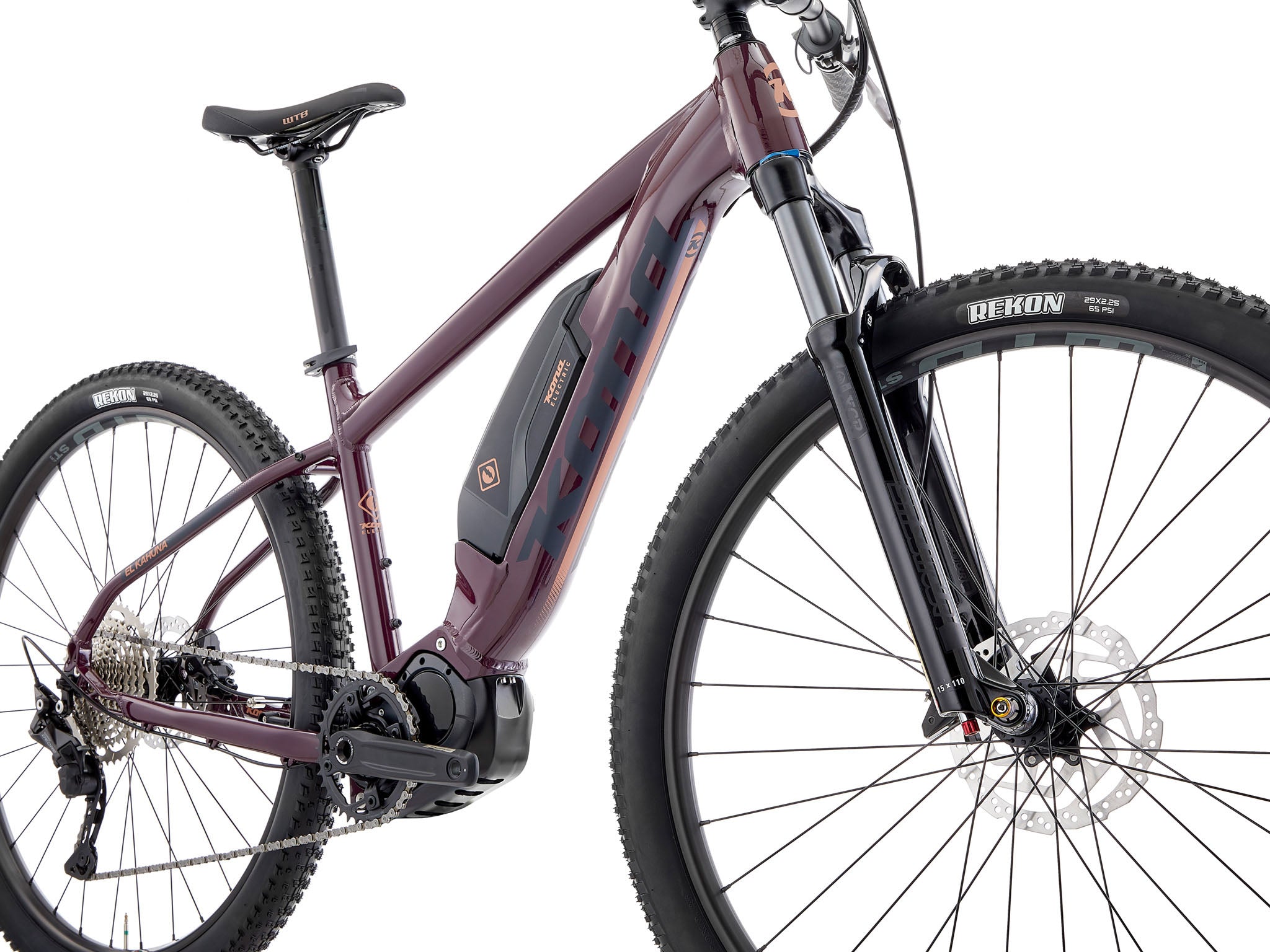

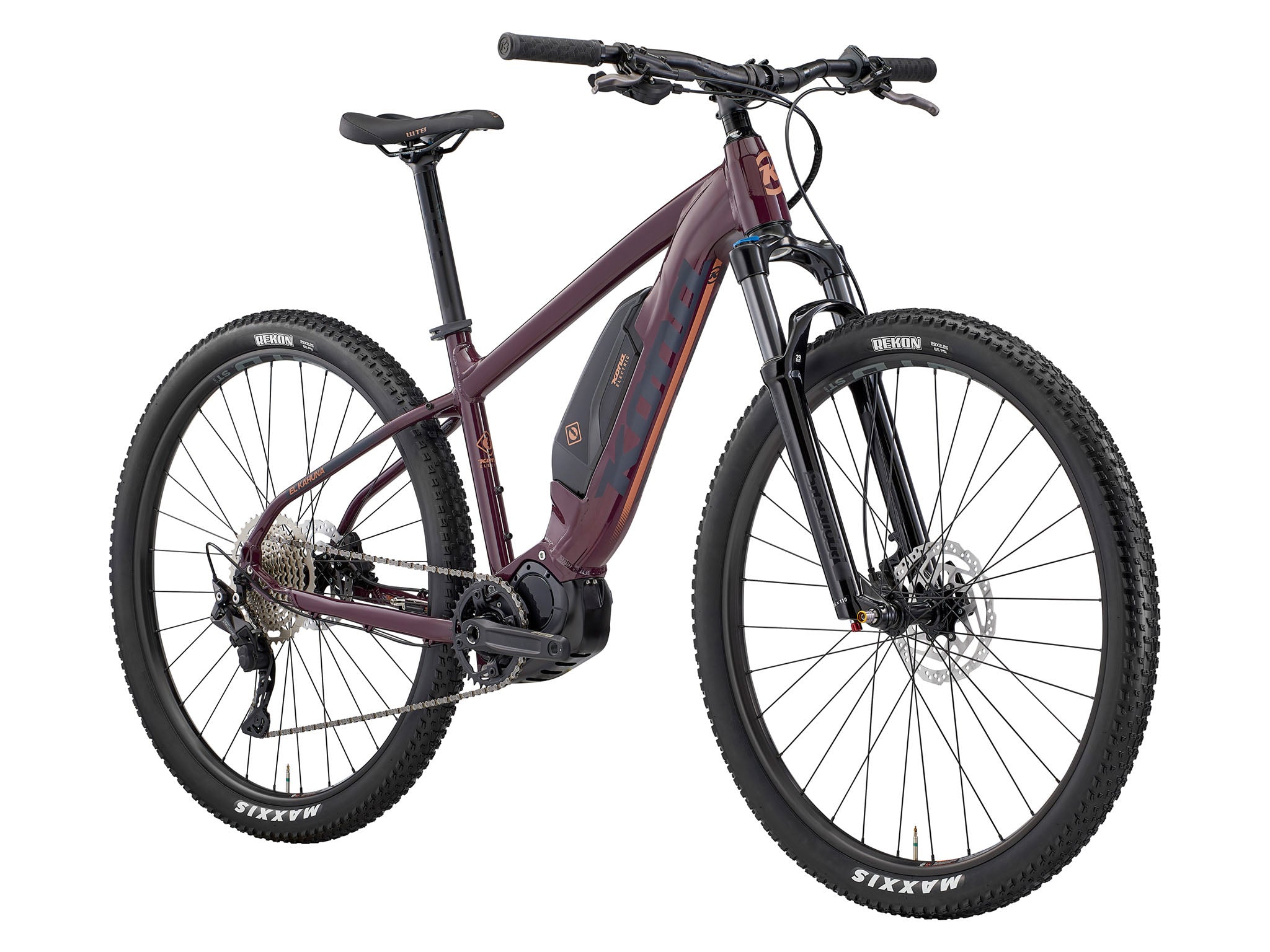

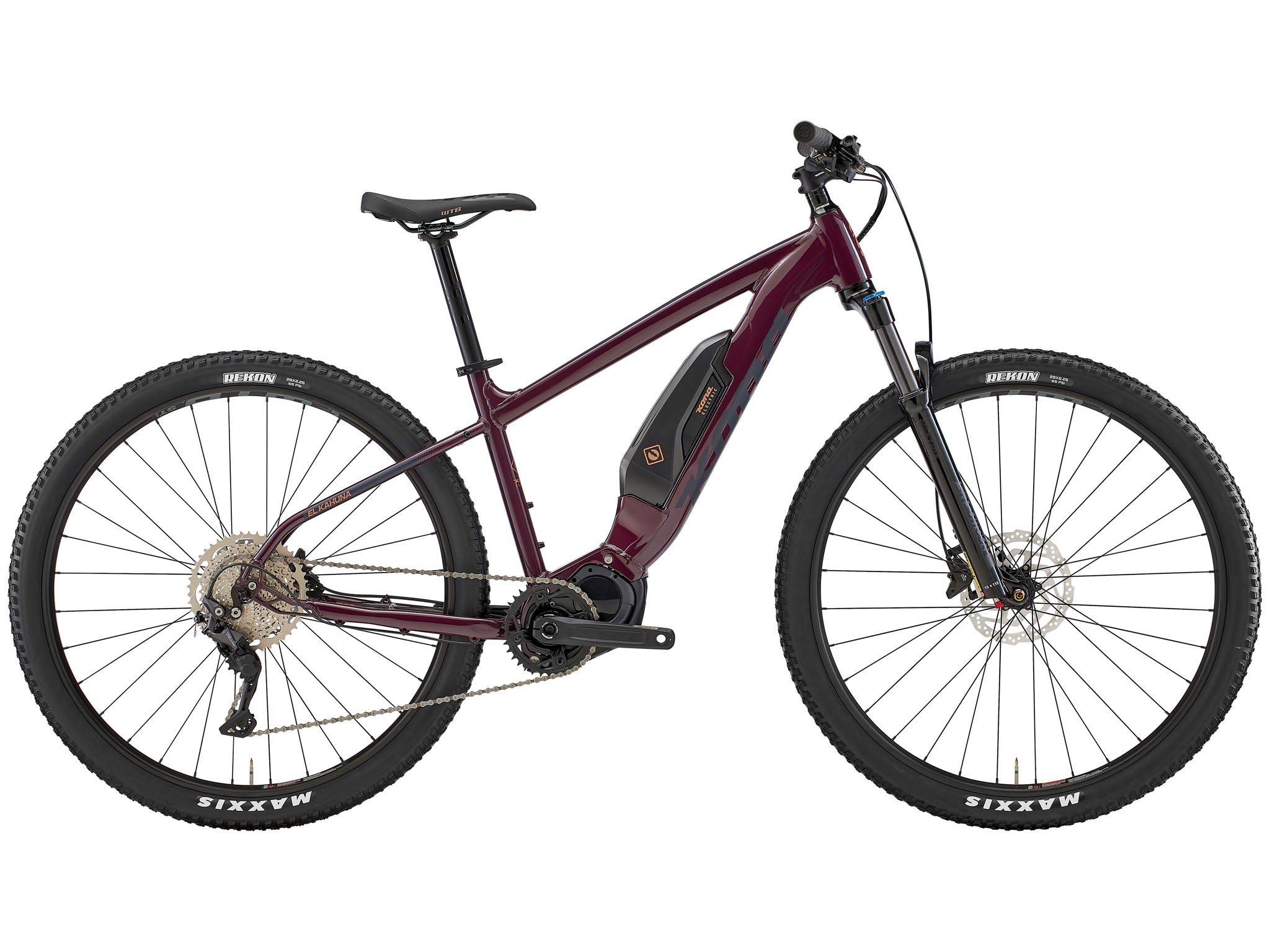

El Kahuna
Not finding what you want here?
Contact your local Kona Dealer.
SPECS & GEOMETRY
SPECIFICATIONS
| Frame Material | Kona 6061 Aluminum Butted |
| Sizes | S, M, L, XL |
| Rear Shock | n/a |
| Fork | Suntour XCR34 Air 100mm Tapered 110 Spacing |
| Crankarms | FSA E-Bike |
| Chainrings | 36t |
| B/B | n/a |
| Pedals | n/a |
| Chain | Shimano HG54 |
| Cassette | Shimano Deore 11-46t 10spd |
| Chainguide | n/a |
| F/D | n/a |
| R/D | Shimano Deore |
| Shifters | Shimano Deore |

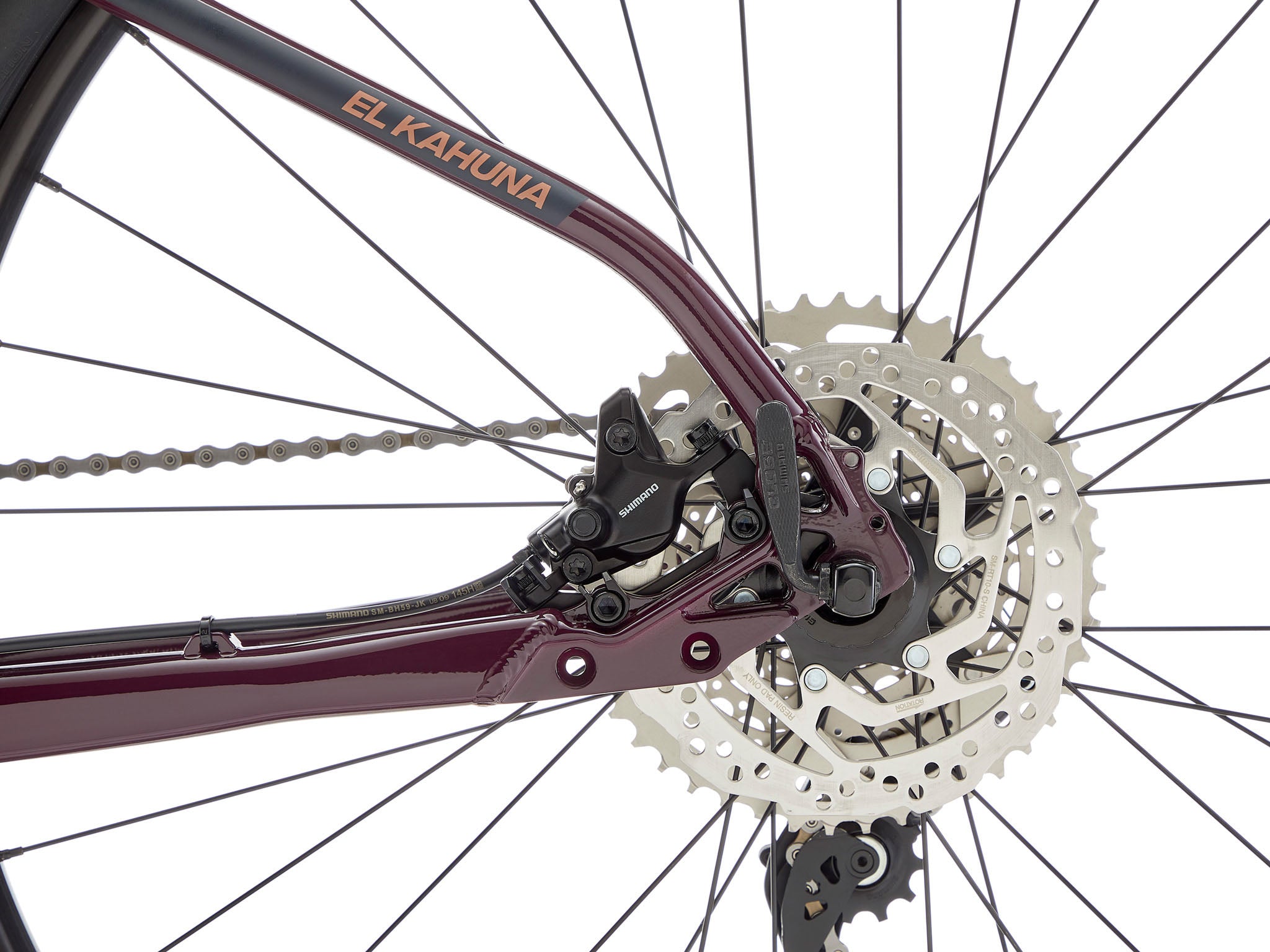

| Brake Calipers | Shimano MT410 |
| Front Brake Rotor | Shimano RT10 180mm (centerlock) |
| Rear Brake Rotor | Shimano RT10 160mm (centerlock) |
| Brake Levers | Shimano MT401 |

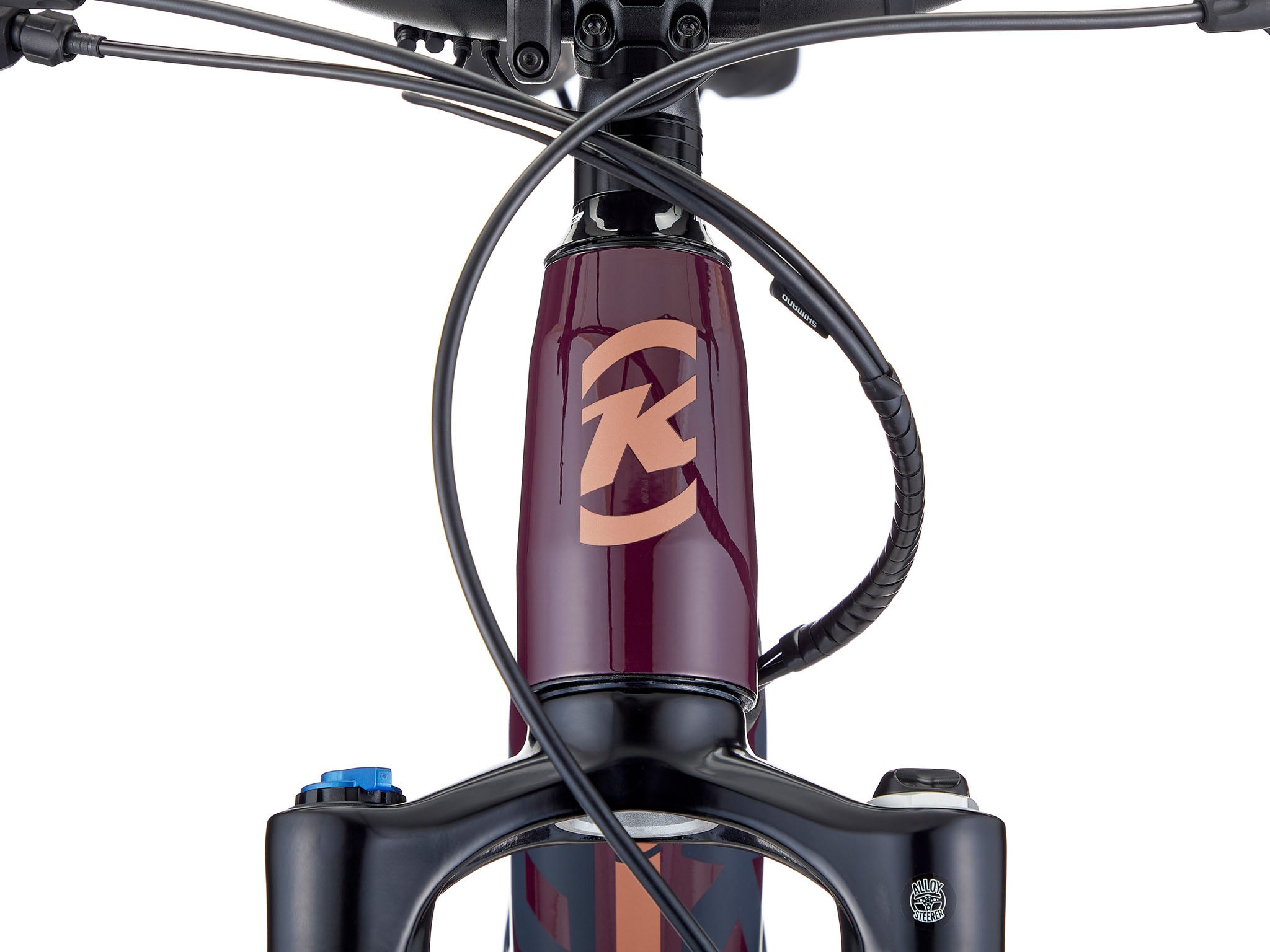

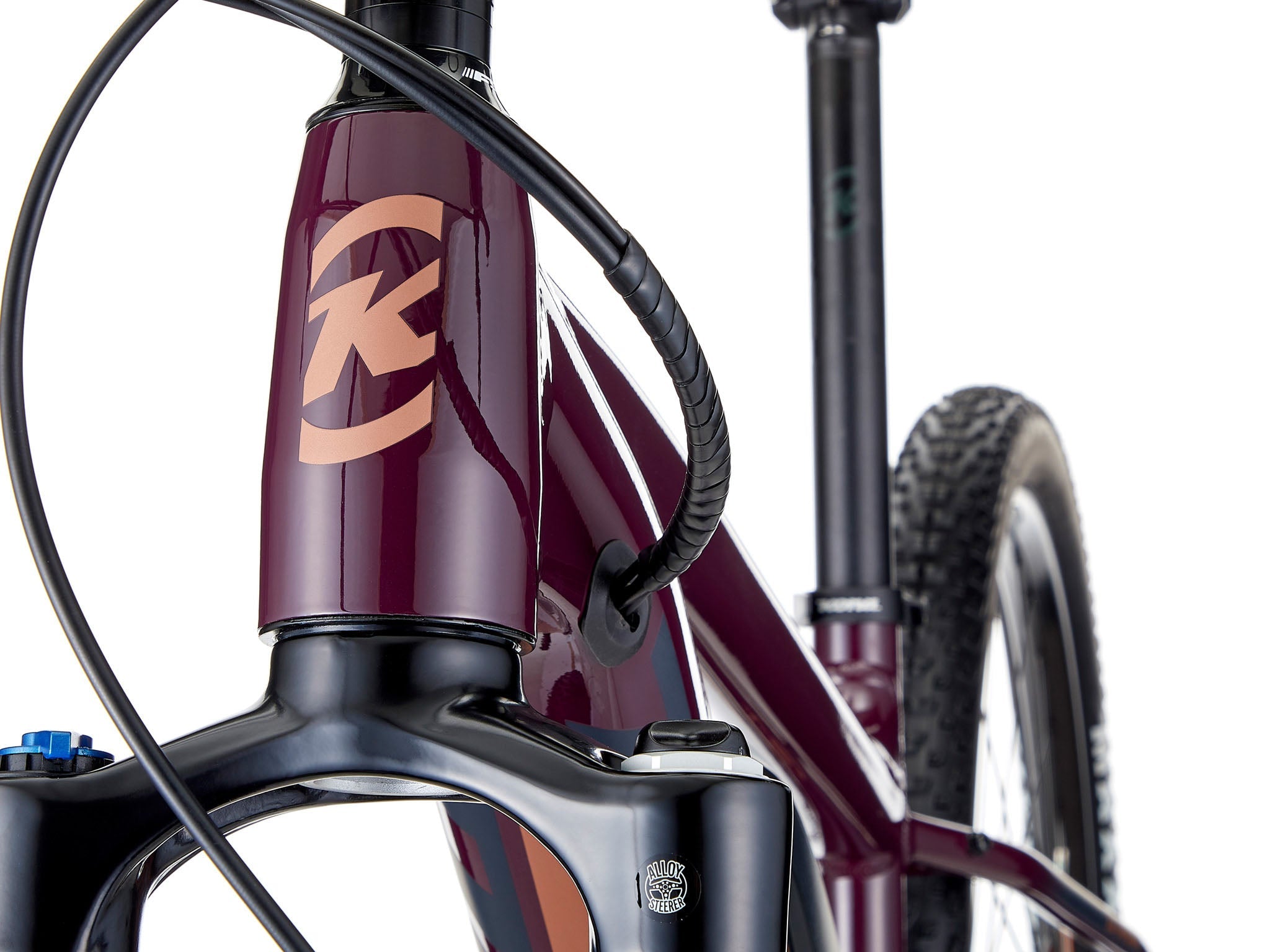

| Headset | FSA No.57BP |
| Handlebar | Kona XC/BC Riser |
| Stem | Kona XC |
| Seatpost | Kona Thumb w/Offset 31.6mm |
| Seat Clamp | Kona QR |
| Grips | Kona Key Grip |
| Saddle | WTB Volt |
| Front Hub | Shimano 110x15mm |
| Rear Hub | Shimano 135x10mm |
| Spokes | Stainless 14g |
| Rims | WTB ST i27 TCS 2.0 |
| Front Tire | WTB Trail Boss 29x2.25" |
| Rear Tire | WTB Trail Boss 29x2.25" |

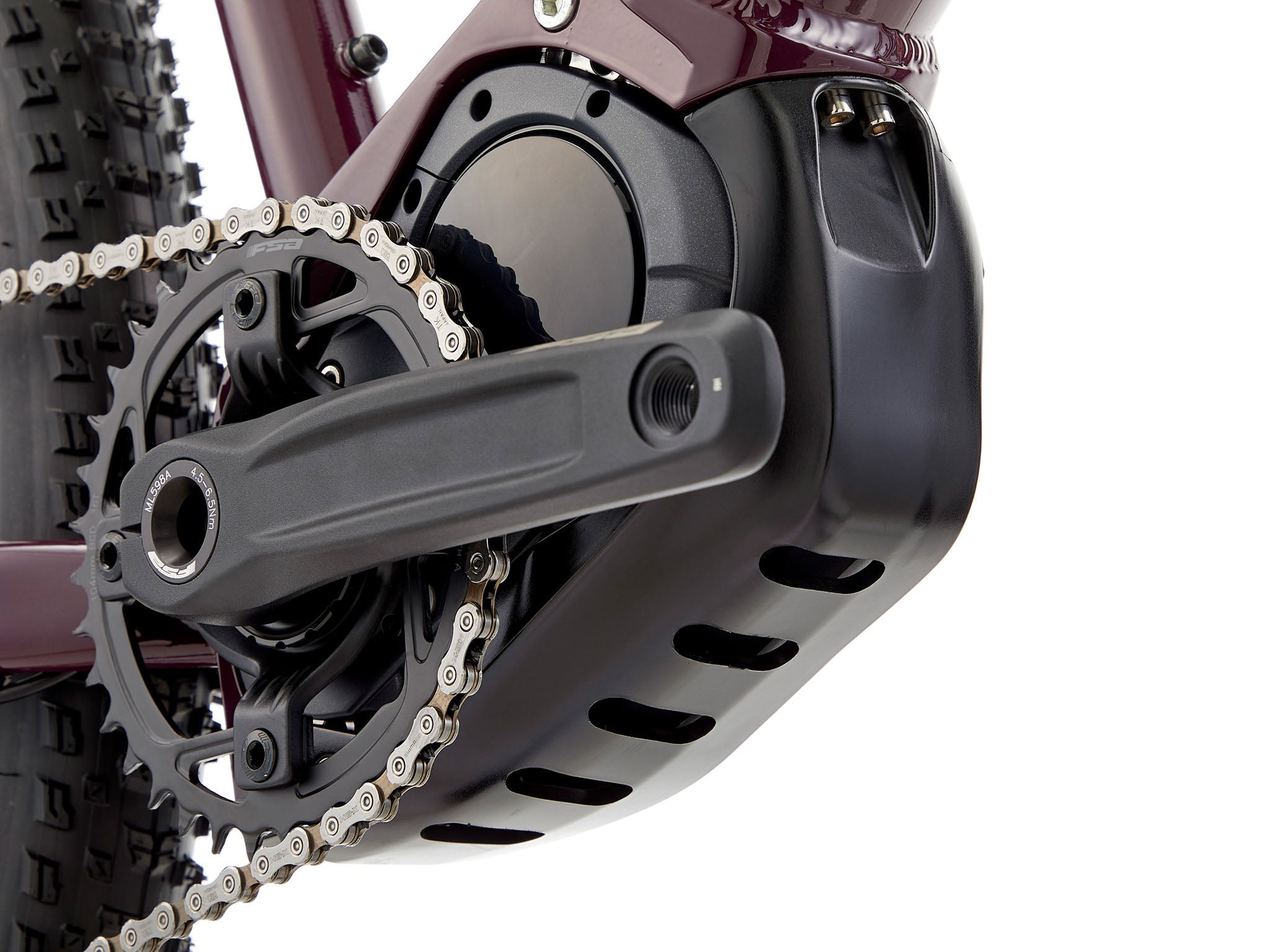

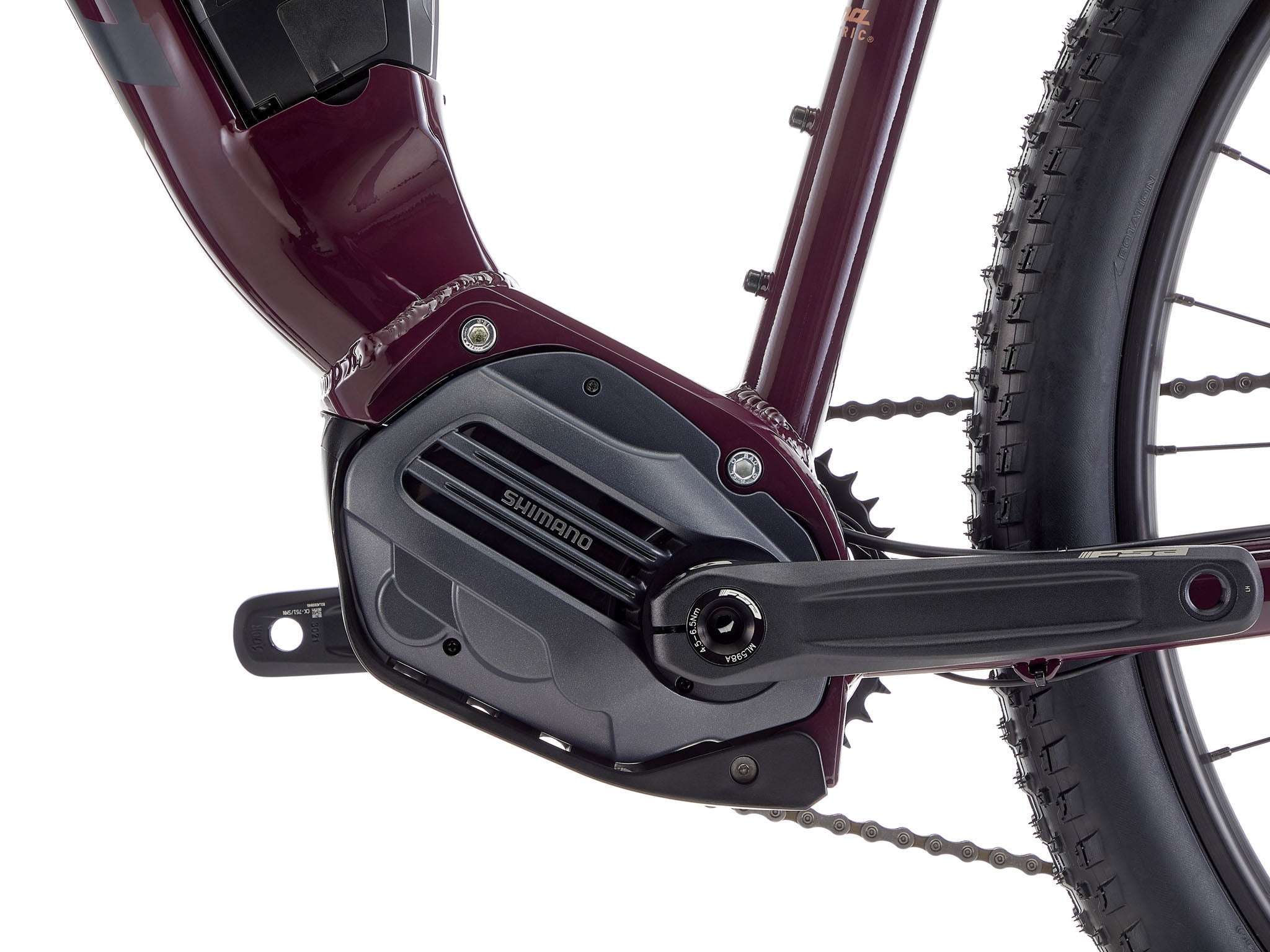

| DriveUnit | Shimano E6100 20MPH |

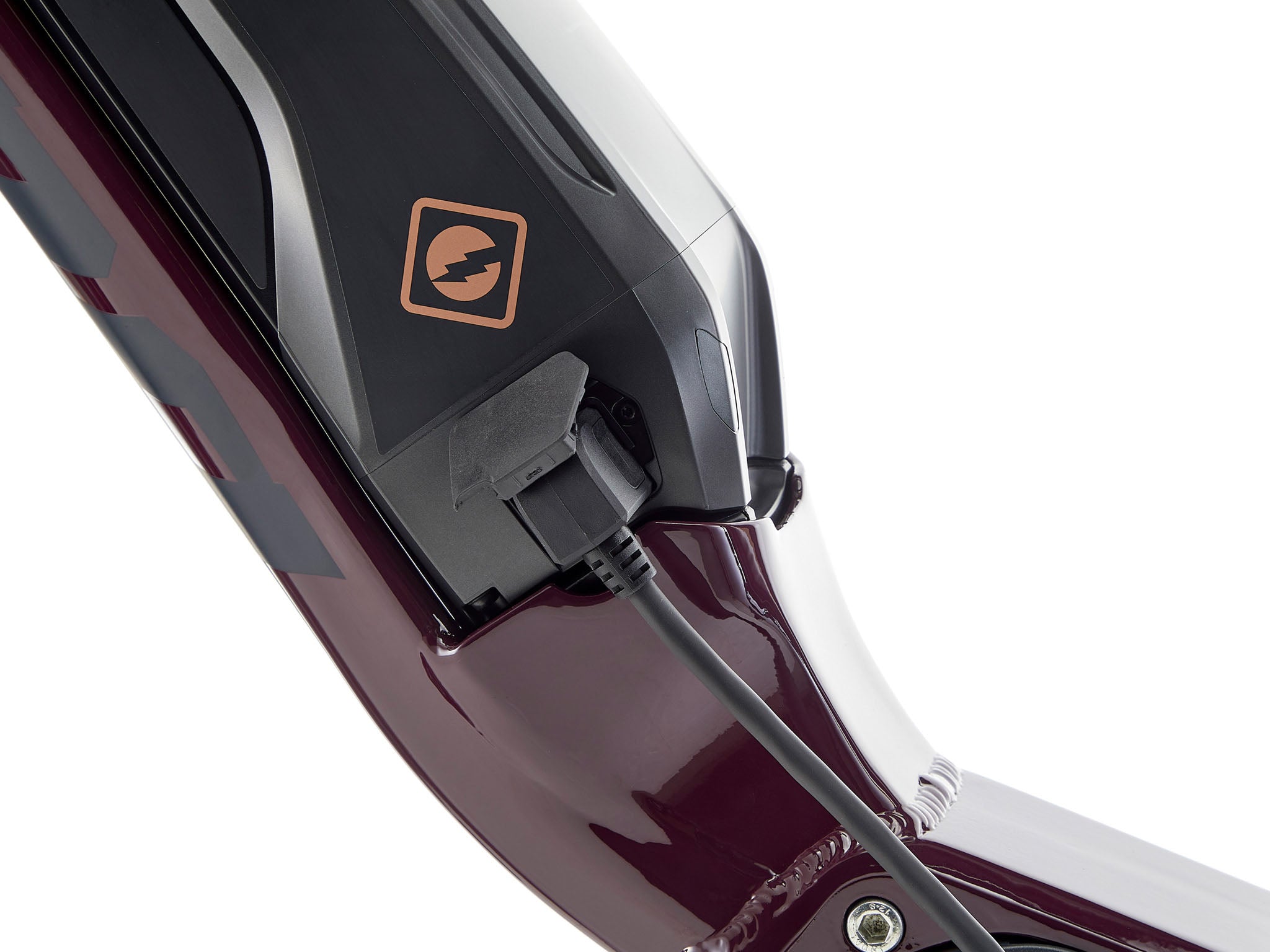

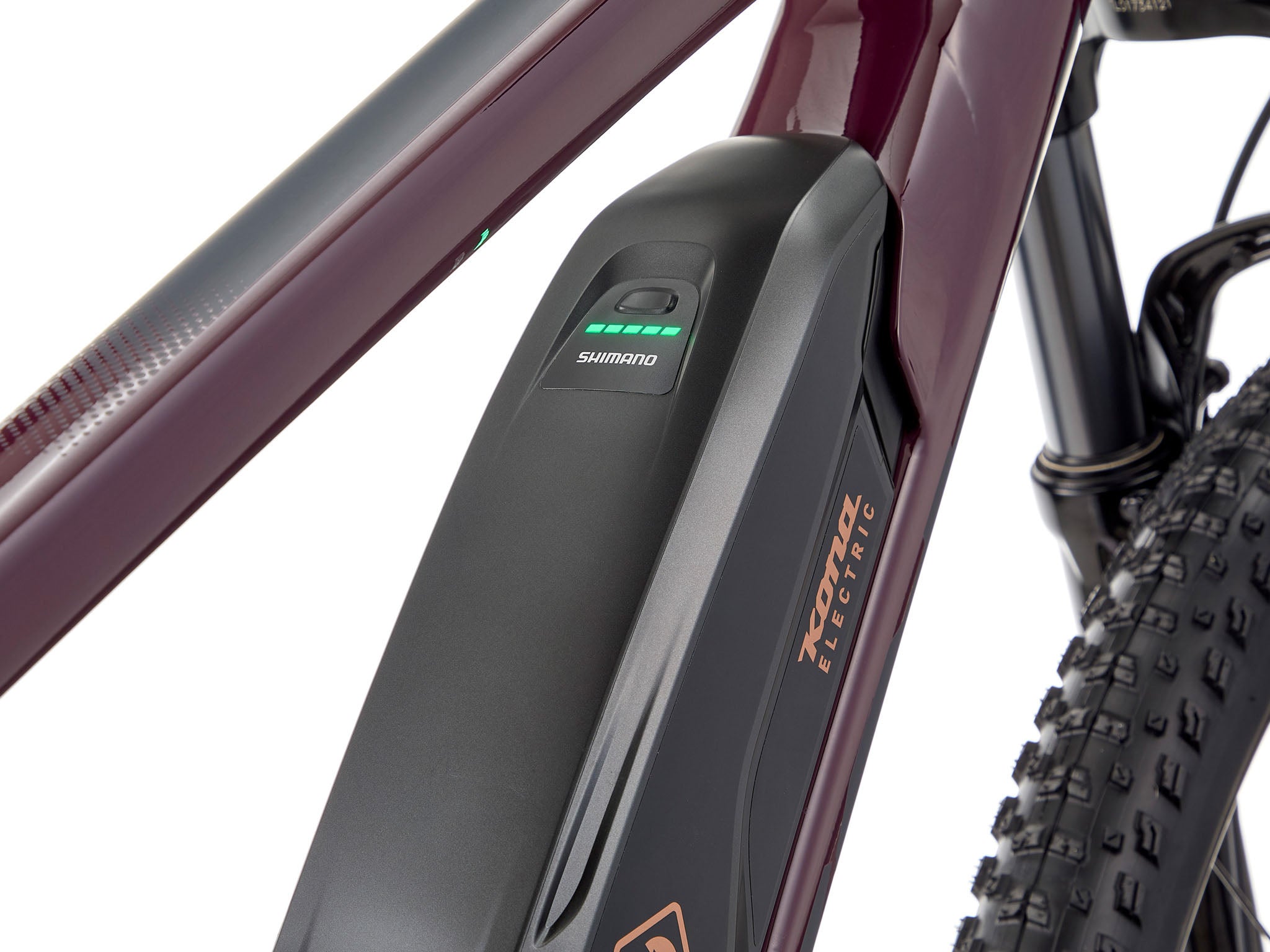

| Battery | Shimano 504Wh |

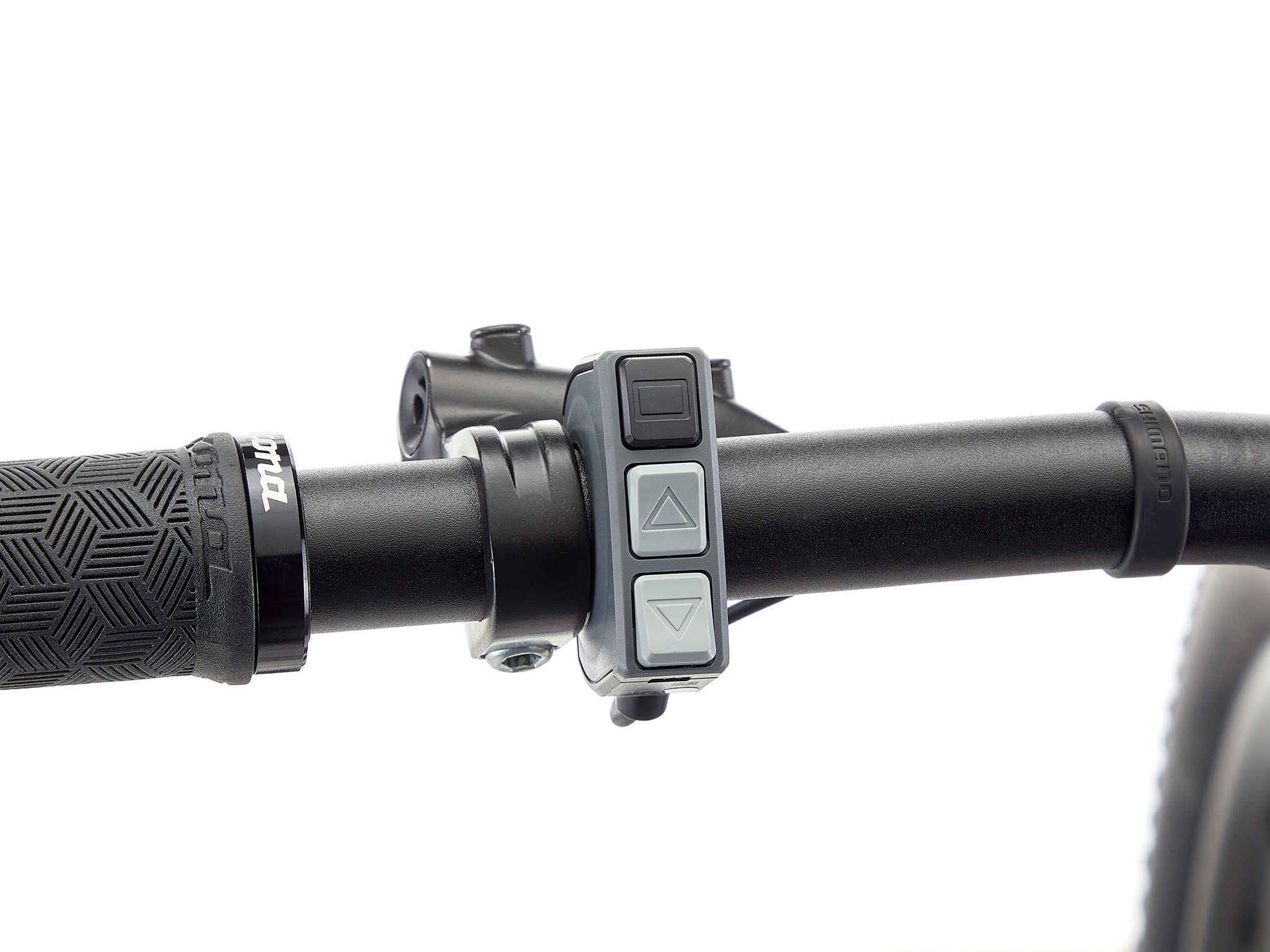

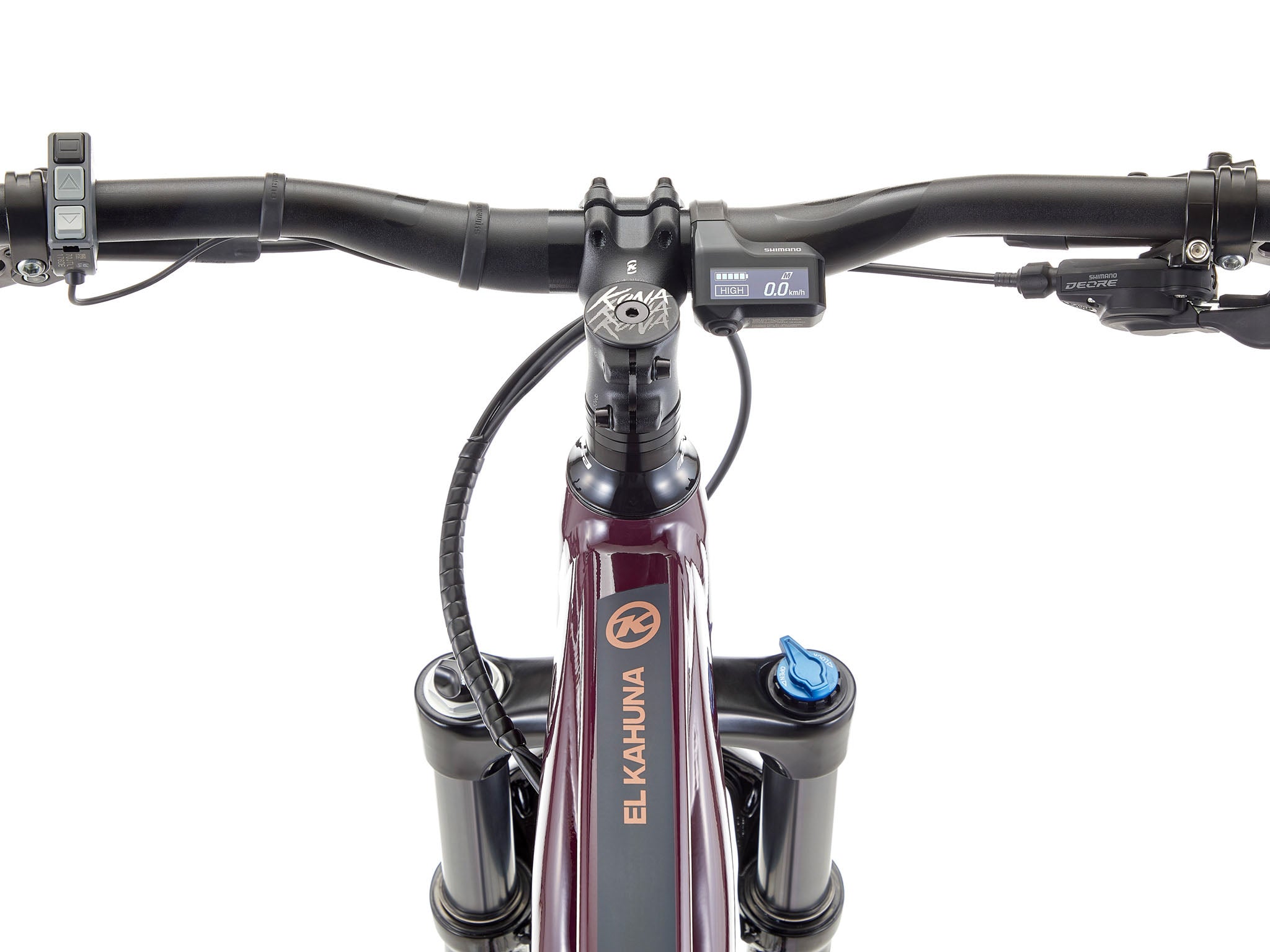

| Display | Shimano SC-E7000 Display |
| Charger | Shimano STEPS 2A |

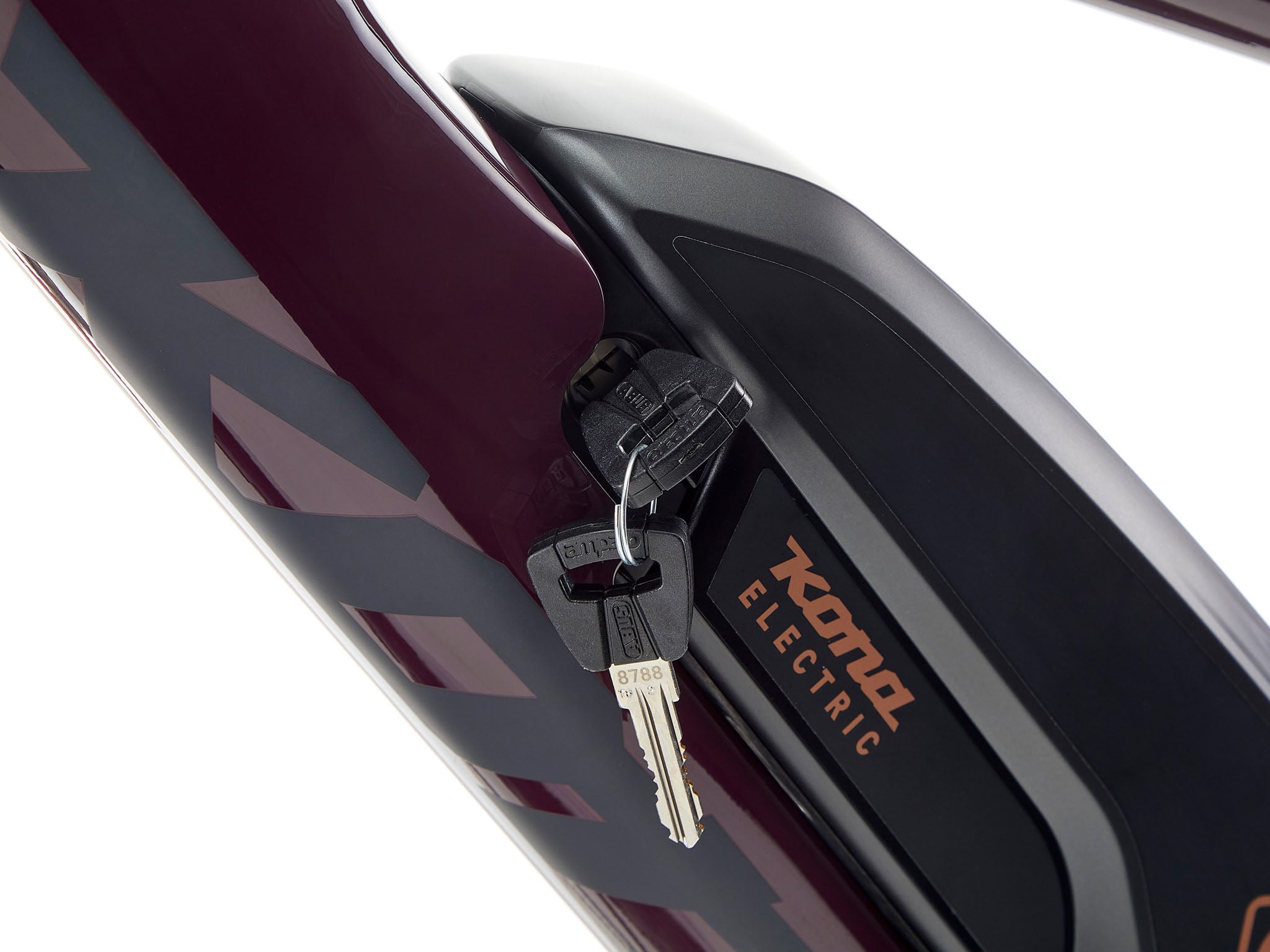

| BatteryLock | Abus |

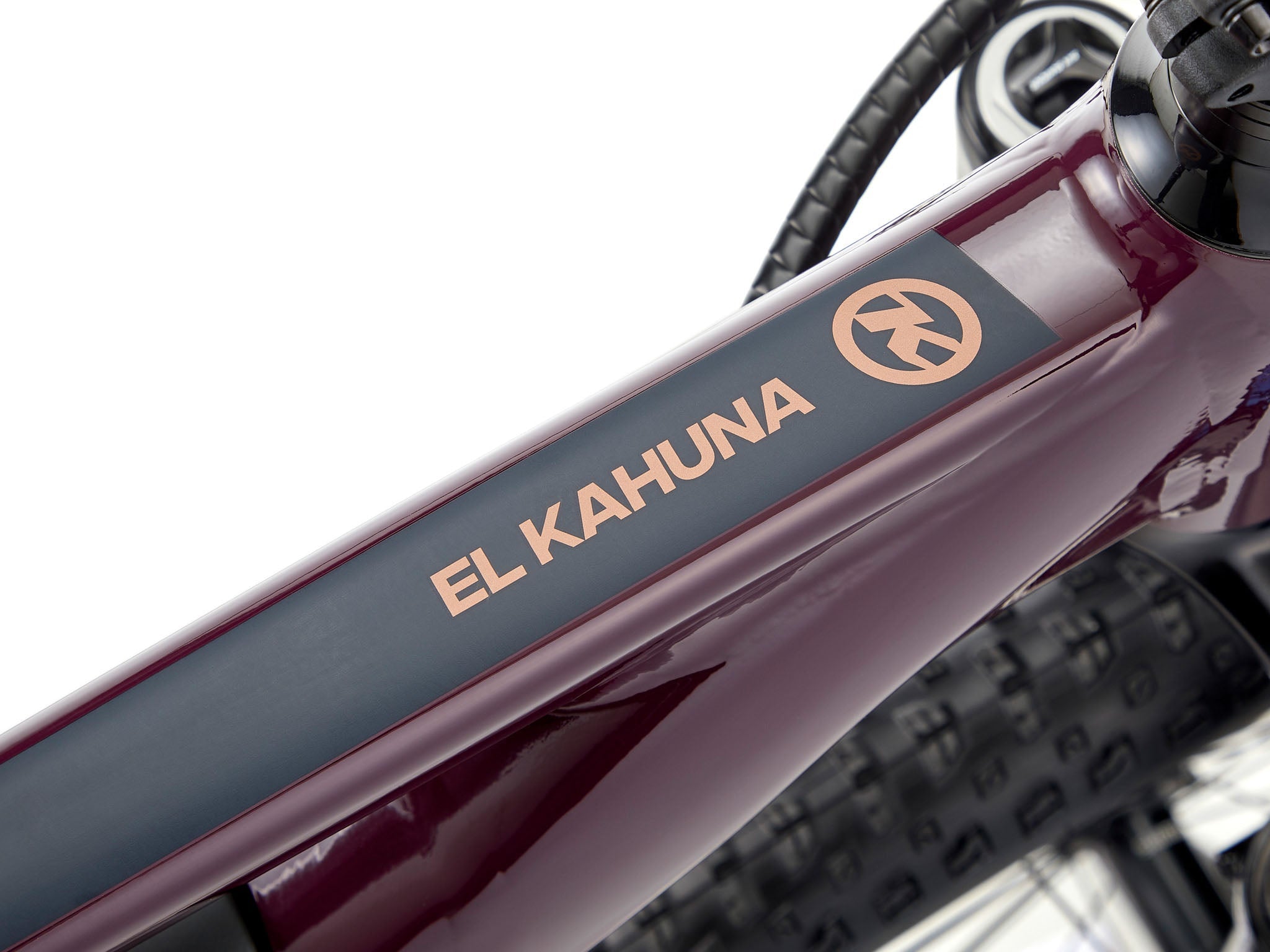

| Paint Color | Gloss Plum w/ Metallic Brass & Matte Ink Decals |
| Extras | n/a |
All Kona e-bikes have passed EN 15194 (EPAC) and ISO 4210 testing.
All specifications are subject to change without notice.
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 370 | 420 | 470 | 530 |
| 2 | TT Length | 581 | 607 | 633 | 665 |
| 3 | Reach | 404 | 428 | 453 | 484 |
| 4 | Stack | 619 | 623 | 628 | 633 |
| 5 | Standover | 738 | 742 | 747 | 766 |
| 6 | HT Angle | 69.0 | 69.0 | 69.0 | 69.0 |
| 7 | HT Length | 110 | 115 | 120 | 125 |
| 8 | ST Angle | 74.0 | 74.0 | 74.0 | 74.0 |
| 9 | CS Length | 465 | 465 | 465 | 465 |
| 10 | BB Drop | 60 | 60 | 60 | 60 |
| 11 | BB Height | 315 | 315 | 315 | 315 |
| 12 | Wheelbase | 1134 | 1160 | 1187 | 1220 |
| 13 | Front Center | 676 | 701 | 728 | 761 |
| 14 | Fork Length | 506 | 506 | 506 | 506 |
| 15 | Fork Offset | 51 | 51 | 51 | 51 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
Electric Mountain Bikes
We've fallen head over heels for electric mountain bikes. They're proven time and time again to bring the fun, a deeper sense of adventure, and more exploration than we ever thought possible. Whether you're hauling the camping gear to the fire pit with the El Kahuna SUV, going for an epic trail adventure on your Remote 130, or self-shuttling on the Remote 160, you're going to reach new levels of good times with Kona electric mountain bikes.
A bike for every adventure
Remote 130
Remote 160
El Kahuna SUV
The Remote 130, the Remote 160, and the all-new El Kahuna SUV
El Kahuna
Remote
Remote 160
The Remote 160 makes gravity riding completely self-sufficient. A fully-integrated battery keeps the lines clean. With 160mm of travel, powerful disc brakes, and the ability to crush the biggest of hills, you'll never miss a chairlift again.
The Remote 160 features a Shimano E7000 motor and display.
The Remote 160 is running a RockShox Gold RL DebonAir fork and Deluxe Select+ rear shock.
Remote 130
The Remote 130 strikes perfect harmony between an all-mountain trail bike and pedal-assist electric bike. Its geometry is derived from the Process 134 and features a 65° head tube angle, 435mm chainstays, and the same reach as its sister 134 bikes.
A sturdy aluminum frame holds Shimano’s E7000 motor and 504 Wh battery.
Tire clearance allows you to run up to a 29x2.5" tire.
Both the Remote 160 and the Remote 130 have a durable, removable battery cover that stands up to abuse from trail debris.
El Kahuna SUV
The new El Kahuna SUV is the perfect answer to your gear-hauling needs. No more struggling to carry heavy loads. A rear rack hauls the pony keg and your tent, while front and rear lights illuminate the path to ensure you don't get lost on the way to the fire pit.
A long-lasting 630 Wh battery provides a longer ride, so more adventures are within reach.
The ROCKSHOX 35 SILVER R fork features 100mm of air-sprung travel.
Schwalbe G-One Allround 29x2.25" tires add an extra bit of traction to every ride.
The rear rack integrates seamlessly with the fender for a clean design.
Front and rear Busch and Müller lights illuminate the darkest of trails and roads.
Hauling gear can make stopping challenging. Fortunately, the kickstand will keep things upright and balanced.
Remote
With geometry similar to that of a Honzo DL, and featuring a 140mm fork, the Remote is the ultimate electric hardtail weapon for full-on trail shredding.
A fully-integrated 504 Wh internal battery runs Shimano's E7000 motor.
The reach of the Remote matches the reach of the Honzo DL.
A 76° seat tube angle and 66° head tube angle put the rider in a position that is comfortable to pedal, and perfect for descending.
Call2Recycle FAQ
Does Kona participate in any ebike battery recycling programs?
Yep! Kona has partnered with Call2Recycle to take care of all battery recycling at the end of their life.
Who is Call2Recycle?
Call2Recycle is the country’s largest consumer battery stewardship and recycling program, with a network of thousands of public collection sites. Founded in the mid-1990s as a voluntary, industry-run initiative to keep the heavy metals from rechargeable batteries out of the solid waste stream.
Are there any fees associated with this service?
Yes, the structure is set up so that the eco fee is passed along the chain to the end consumer. These fees ensure that the program runs effectively and that all collection sites can be outfitted with the appropriate safety and recycling materials. Here’s how it works:
- As the importer of record, Kona will remit the fees to C2R. It’s $15 per electric bike or aftermarket battery.
- Kona will be passing the eco fee to the dealer when they are shipped any ebikes or batteries.
- The consumer buying the bike or battery will pay the dealer the fee.
- This fee ensures that when your battery has reached the end of its life that it will be safely recycled and there will be no additional fee.
Do I need to pay a fee when the battery is ready to be recycled too?
Nope. The fee you paid at the time of purchase is the only fee you’ll ever need to pay to recycle your battery.
Will my dealer take the battery when I can no longer use it?
This will vary from dealer to dealer as it’s up to them if they want to sign up to be a battery collection site. You can find a participating dealer near you on the call2recycle locator.
I’m a dealer and want to become a collection site. How do I sign up?
Great! The more collection sites the better! It costs nothing to become a collection site. Find out more info here. Once registered, you will complete a short training and have access to recycling and safety materials
I’m a consumer and my local dealer isn’t a collection site. Where can I recycle my batteries?
We will do our best to encourage our dealer network to participate in the program, but if they haven’t had time or choose not to participate, please use the locator to find your nearest location.
Why should I recycle my batteries?
Ensuring your e-bike battery is disposed of in the proper waste stream is an important part of responsible e-bike ownership. Metals in both batteries and cellphones can be recycled and used in new products such as new batteries, stainless steel alloy and cement additives. Recycling reduces the need to mine for virgin material to manufacture these products. Additionally, Universal waste laws prohibit throwing lithium-ion batteries in the trash as they pose safety risks to people, property, and the natural environment. The Call2Recycle program ensures these products are safely and compliantly recycled through the proper channels.
Where can I find more information aboutCall2Recycle?
Right here!
