Dew-E DL
Not finding what you want here?
Contact your local Kona Dealer.
SPECS & GEOMETRY
SPECIFICATIONS
| Frame Material | Kona 6061 Aluminum Butted |
| Sizes | S, M, L, XL |
| Rear Shock | n/a |
| Fork | Kona Rove Verso Full Carbon Flat Mount Disc |
| Crankarms | Shimano E6100 |
| Chainrings | 38t |
| B/B | n/a |
| Pedals | n/a |
| Chain | Shimano HG54 |
| Cassette | Shimano Deore 11-46t 10spd |
| Chainguide | n/a |
| F/D | n/a |
| R/D | Shimano Deore |
| Shifters | Shimano Deore |
| Brake Calipers | Shimano Hydraulic |

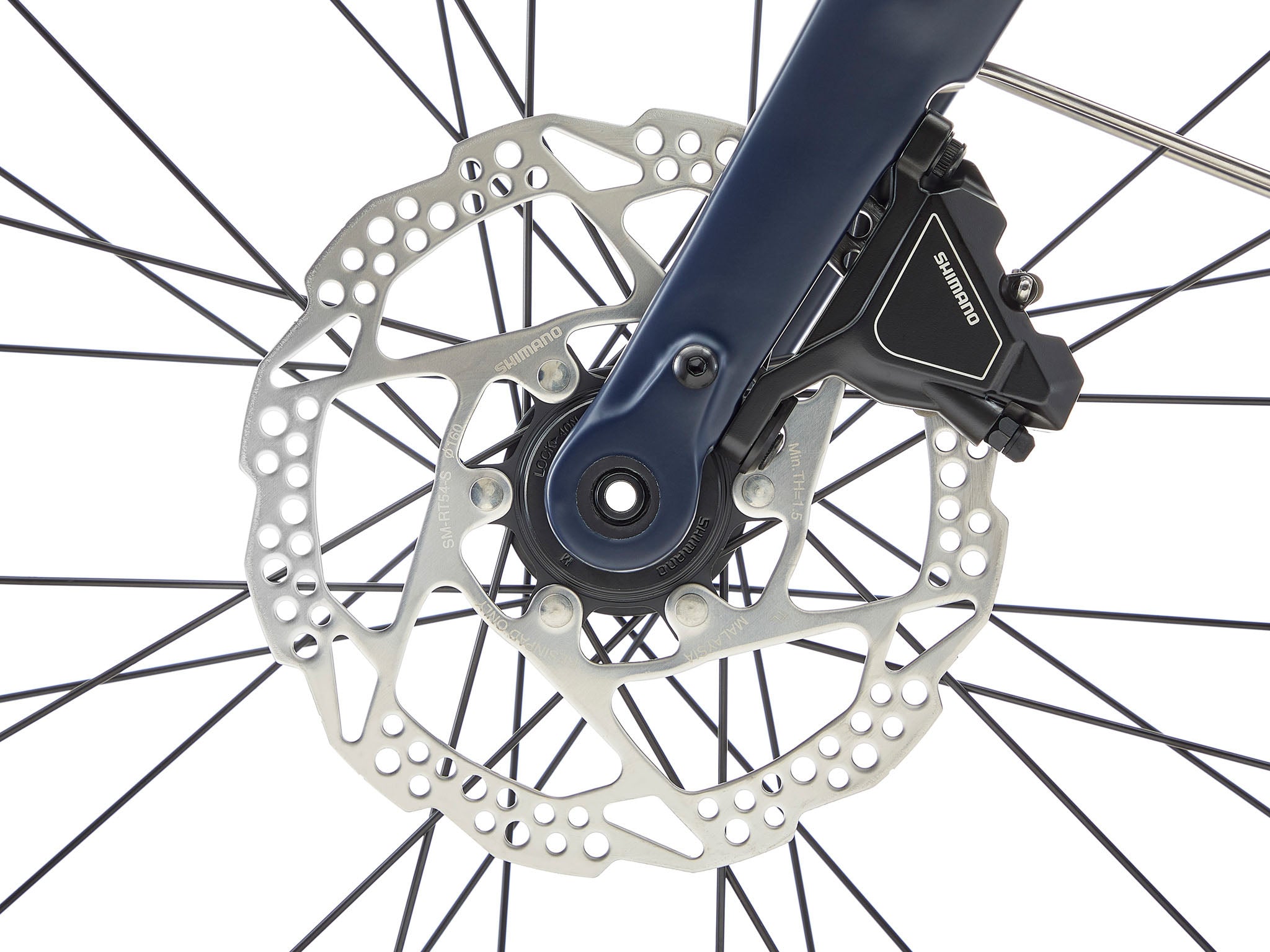

| Front Brake Rotor | Shimano RT54 160mm (centerlock) |
| Rear Brake Rotor | Shimano RT54 160mm (centerlock) |
| Brake Levers | Shimano MT201 Hydraulic |
| Headset | FSA No.57BP |
| Handlebar | Kona Aluminum Riser |
| Stem | Kona Control |
| Seatpost | Kona Commuter 31.6mm |
| Seat Clamp | Kona Clamp |
| Grips | Kona Key Grip |
| Saddle | WTB Volt |
| Front Hub | Shimano Tiagra 100x12mm |
| Rear Hub | Shimano Tiagra 142x12mm |
| Spokes | Stainless 14g |
| Rims | WTB ST i23 TCS 2.0 |
| Front Tire | WTB Horizon TCS w/ Puncture Protection 650x47c |
| Rear Tire | WTB Horizon TCS w/ Puncture Protection 650x47c |
| DriveUnit | Shimano E6100 20MPH |
| Battery | Shimano 504Wh |

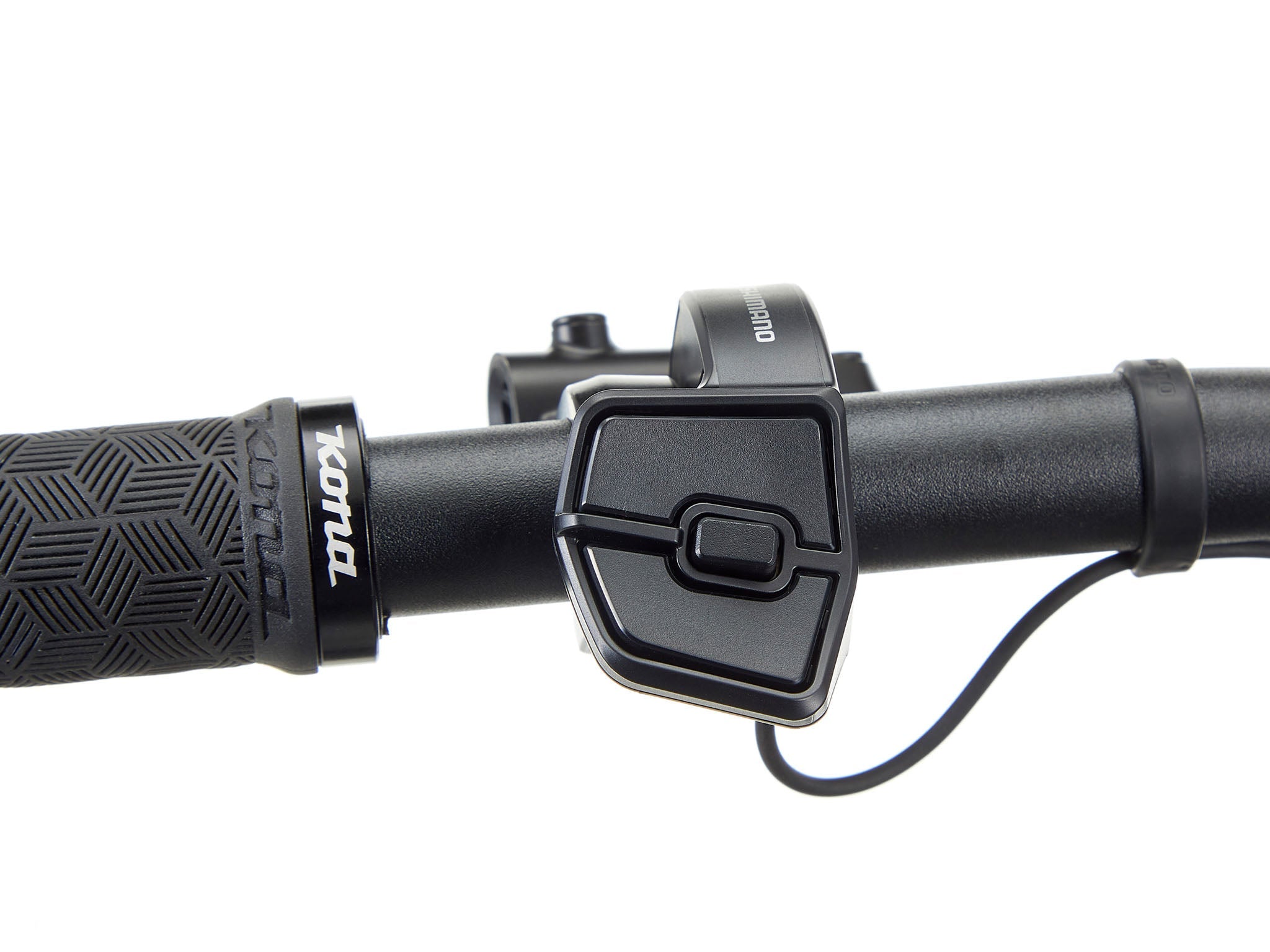

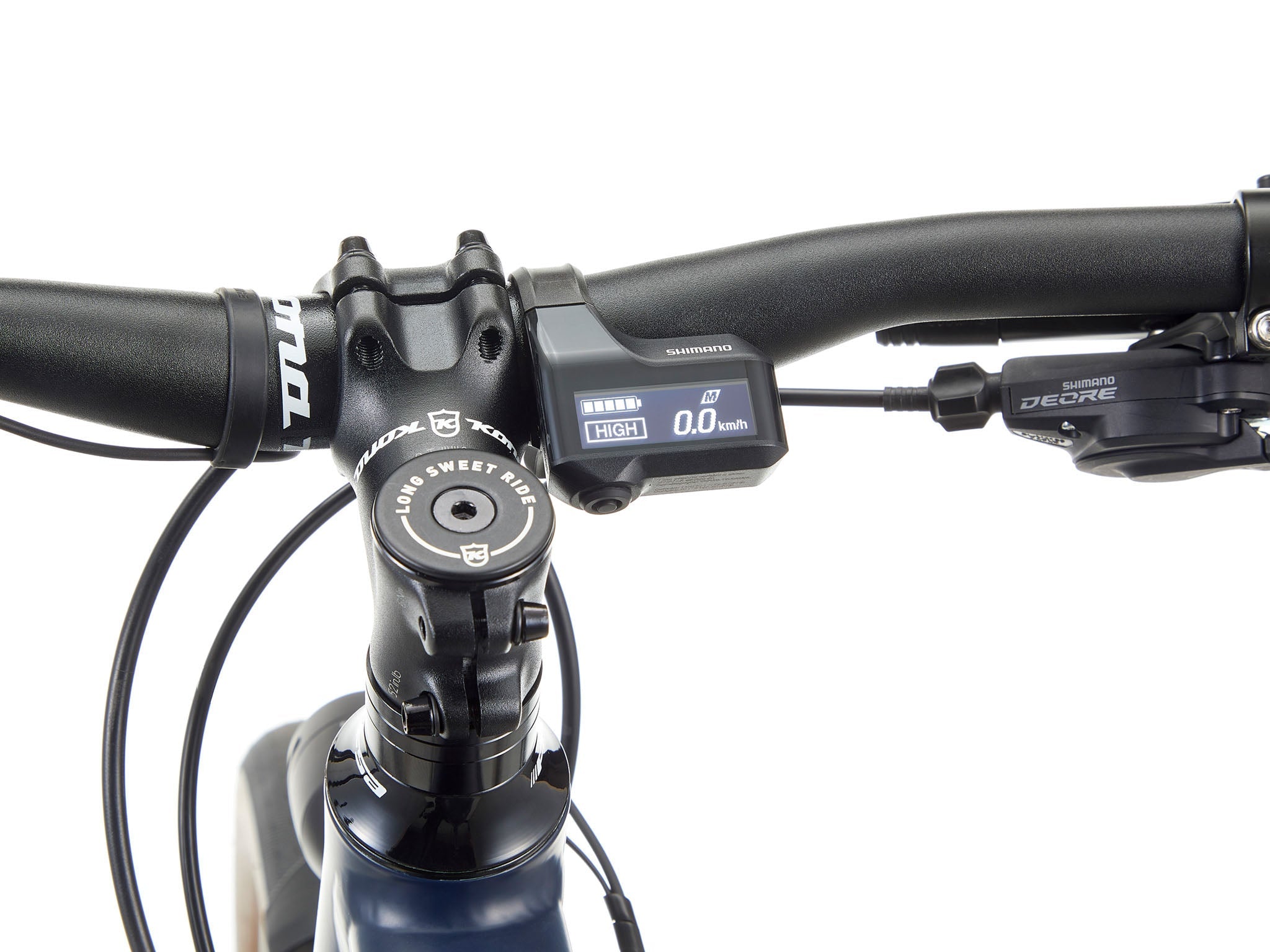

| Display | Shimano SC-E7000 Display |
| Charger | Shimano STEPS 2A |
| BatteryLock | n/a |
| Paint Color | Matte Midnight w/ Blue-Grey Decals |
| Extras | Fenders, Busch & Müller Front & Rear Light, Kickstand |
All Kona e-bikes have passed EN 15194 (EPAC) and ISO 4210 testing.
All specifications are subject to change without notice.
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 420 | 470 | 520 | 580 |
| 2 | TT Length | 551 | 596 | 635 | 678 |
| 3 | Reach | 404 | 430 | 446 | 471 |
| 4 | Stack | 548 | 579 | 617 | 636 |
| 5 | Standover | 700 | 741 | 786 | 830 |
| 6 | HT Angle | 70.0 | 70.0 | 70.0 | 70.0 |
| 7 | HT Length | 135 | 168 | 208 | 228 |
| 8 | ST Angle | 75.0 | 74.0 | 73.0 | 72.0 |
| 9 | CS Length | 450 | 450 | 450 | 450 |
| 10 | BB Drop | 60 | 60 | 60 | 60 |
| 11 | BB Height | 282 | 282 | 282 | 282 |
| 12 | Wheelbase | 1081 | 1118 | 1148 | 1180 |
| 13 | Front Center | 638 | 675 | 705 | 736 |
| 14 | Fork Length | 400 | 400 | 400 | 400 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
Electric Commuter
The world seems to have ushered in a new era of car-free living. With more cities closing down roads to cars, electric bikes are taking over the pavement all around the world. We offer several electric commuter bikes that will make you wonder why you ever needed a car for commuting in the first place.
Three models, three styles, one hell of a good time

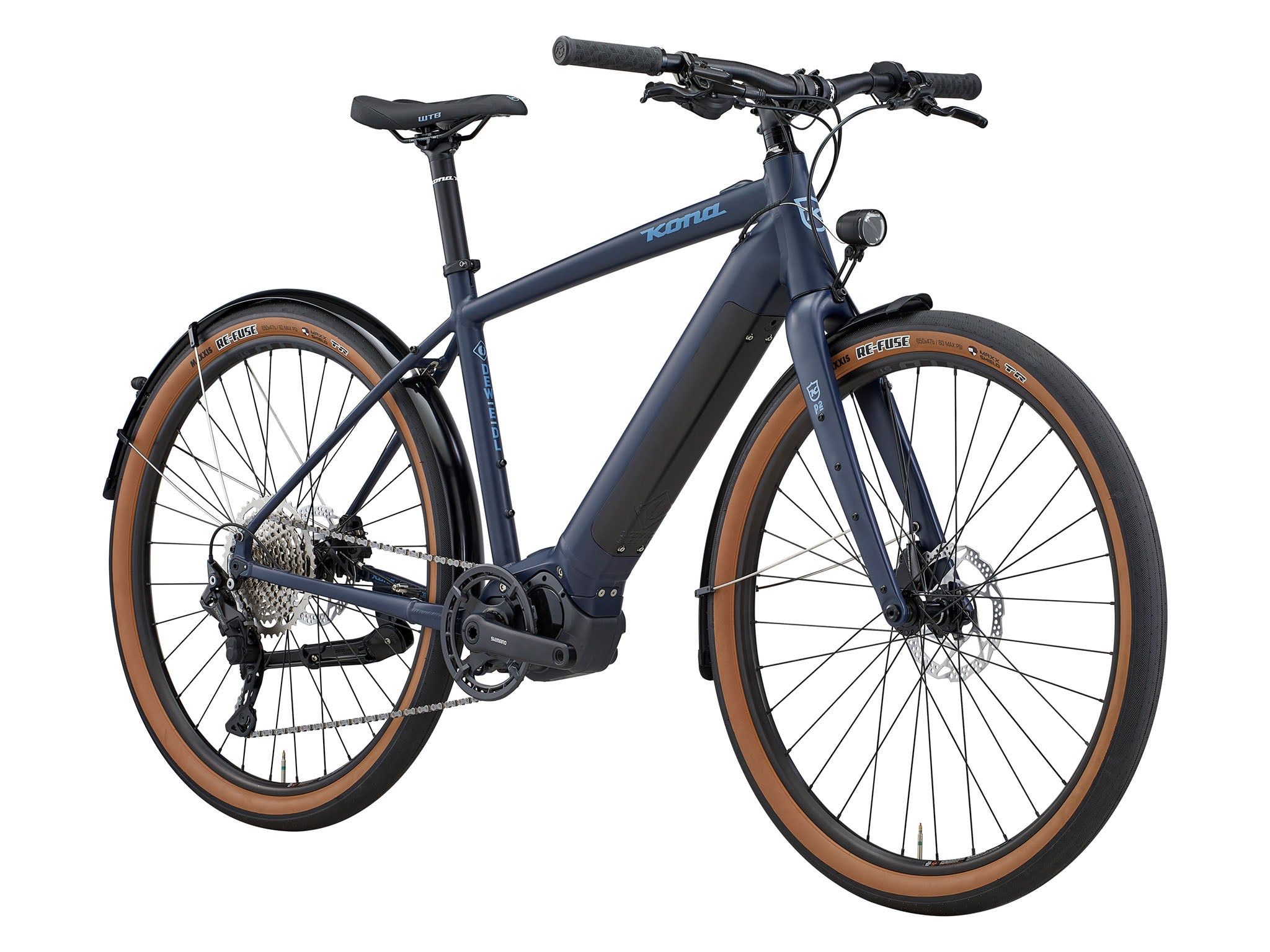

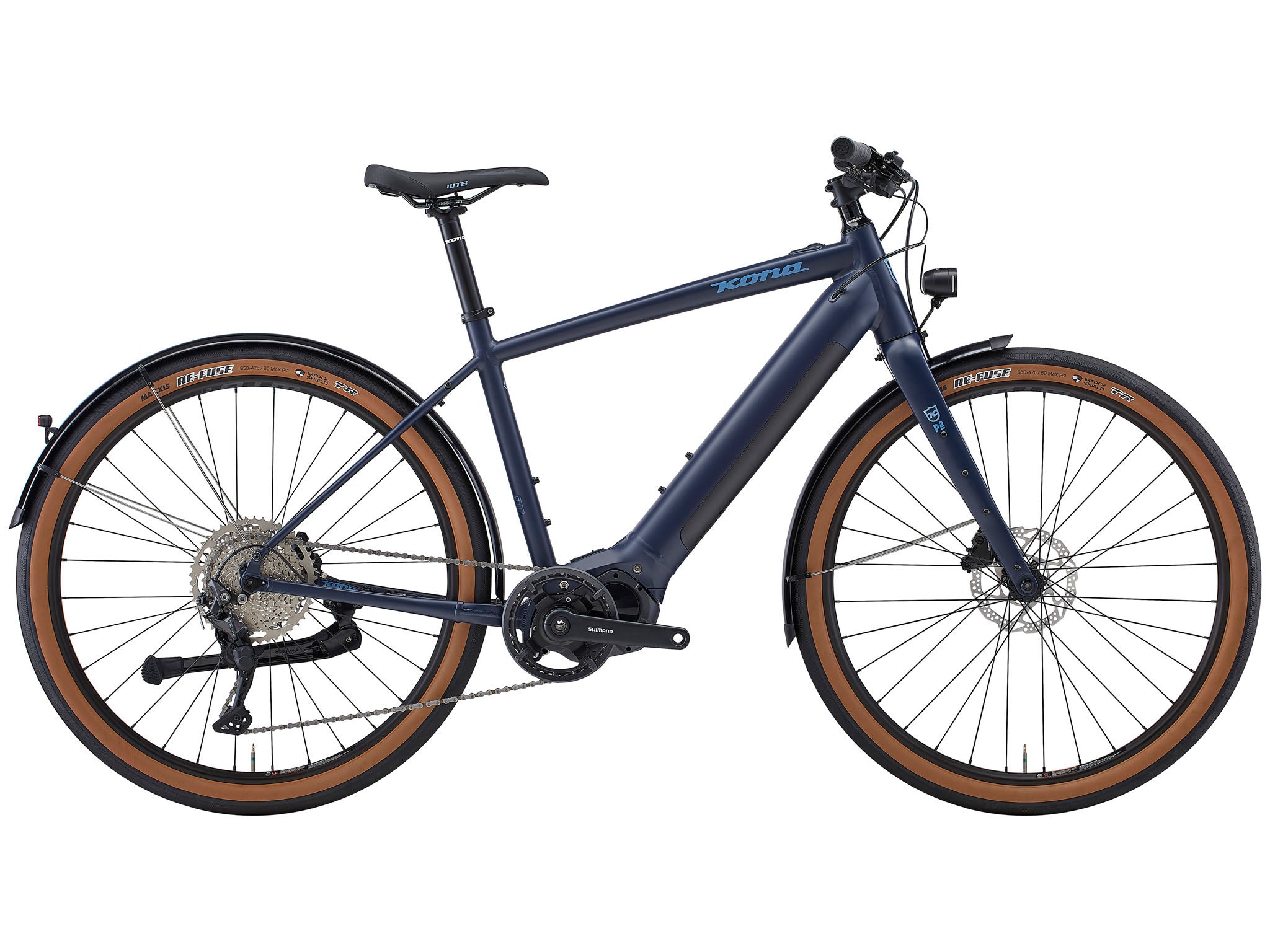

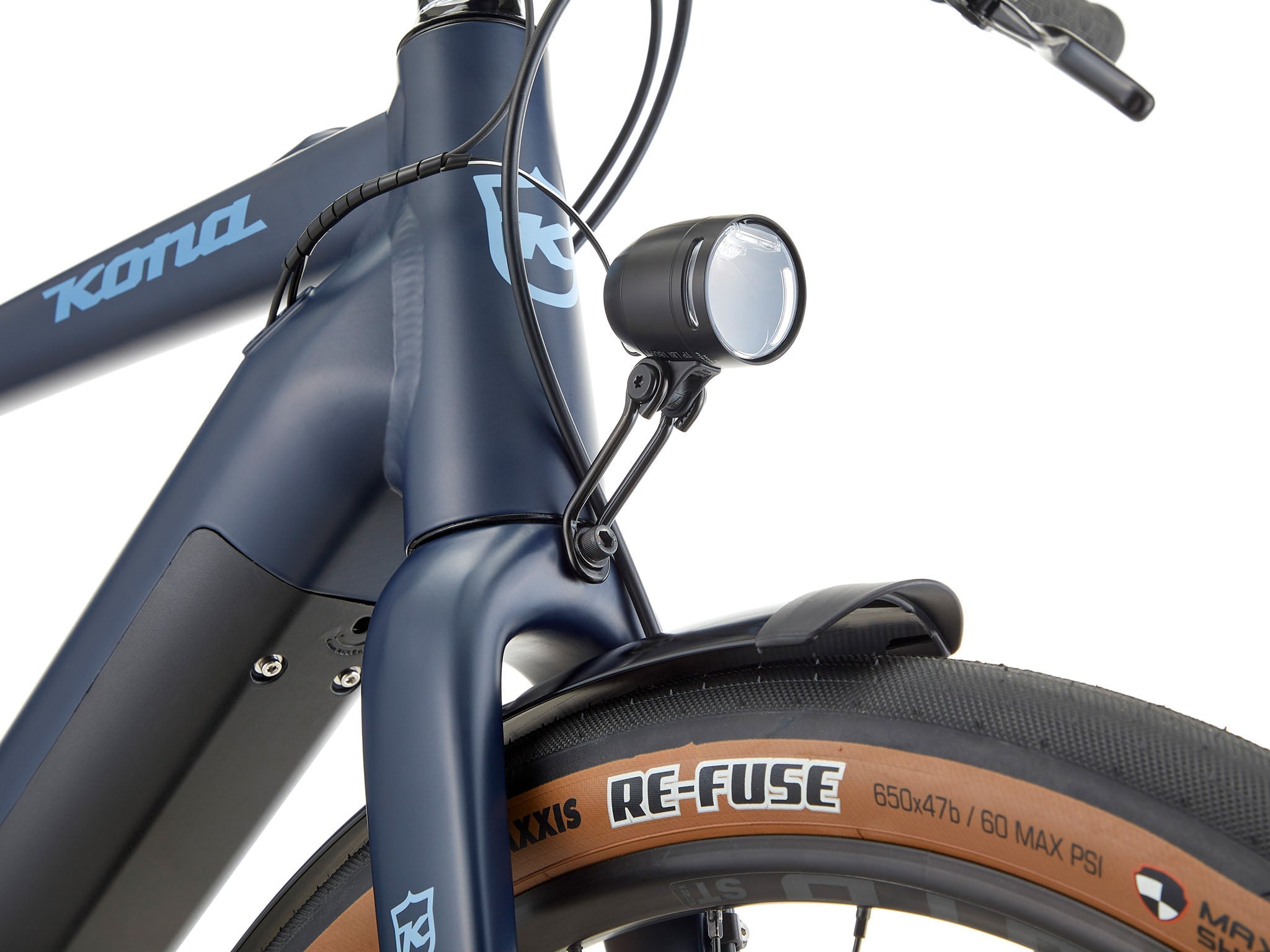

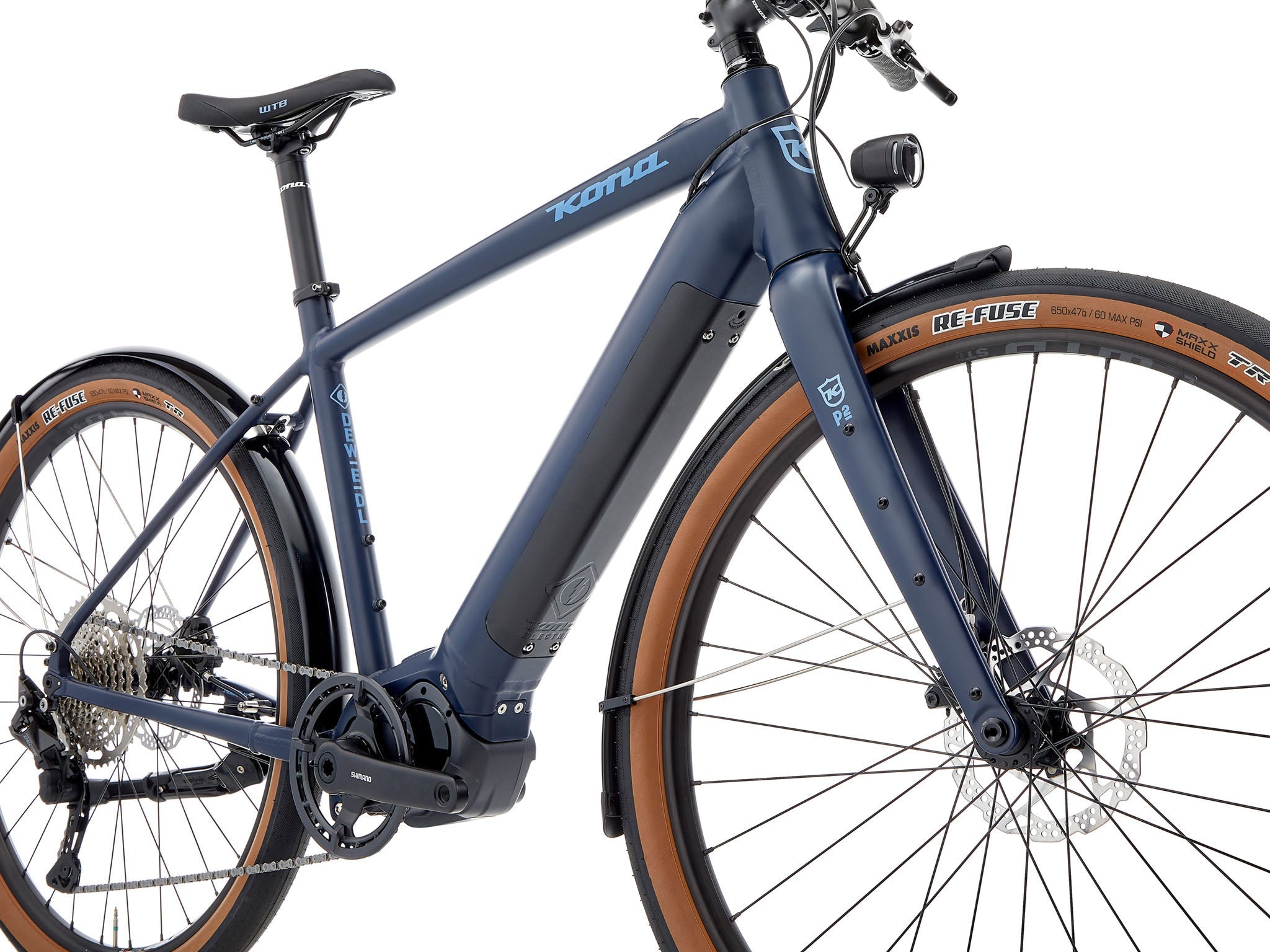

The Dew-E DL is built for the commuter with discerning taste. Tubeless, puncture-resistant tires, front and rear Busch & Müller lights, front and rear fenders, and a 10-speed Shimano drivetrain provide a reliable ride in any conditions.

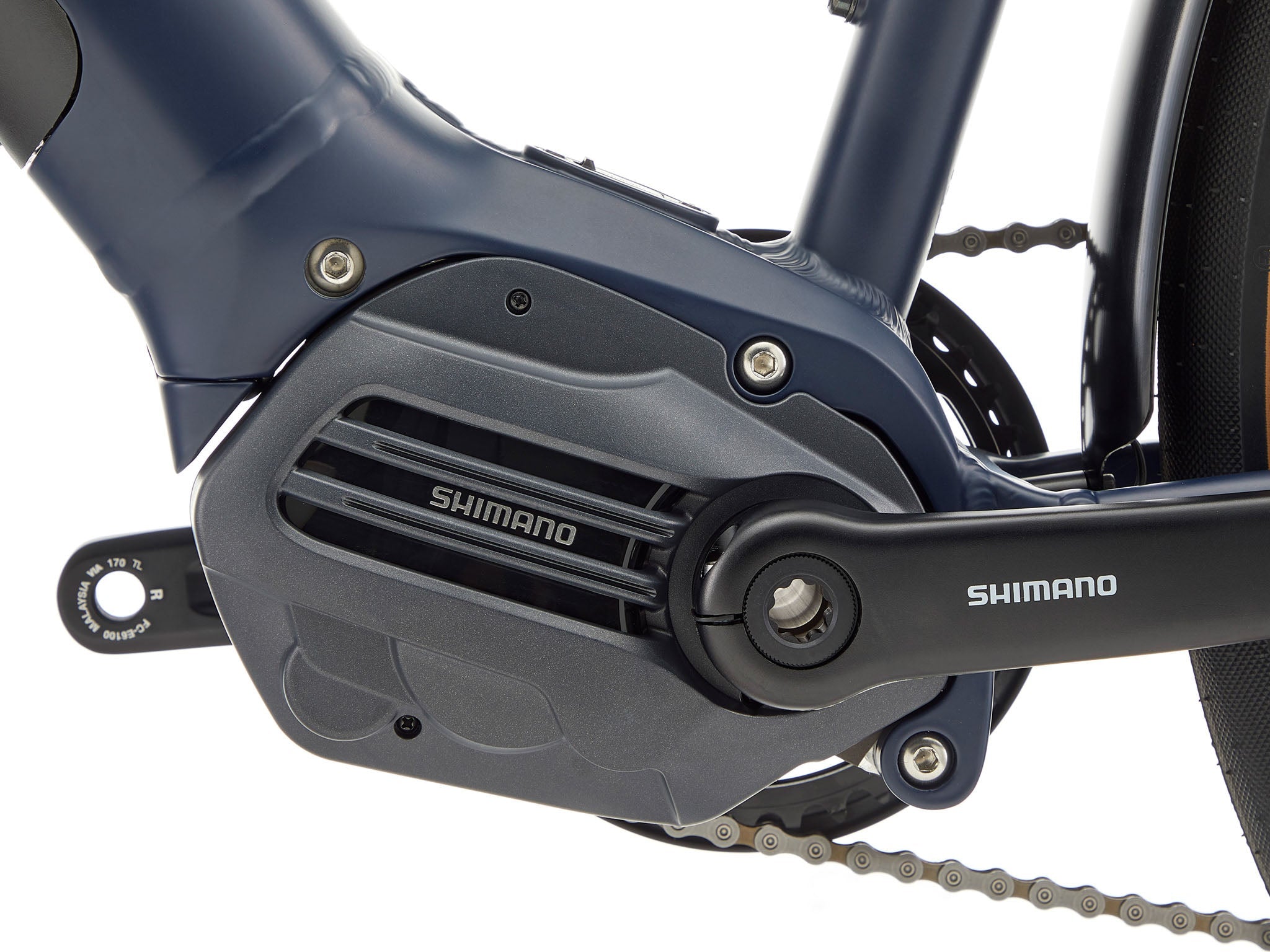

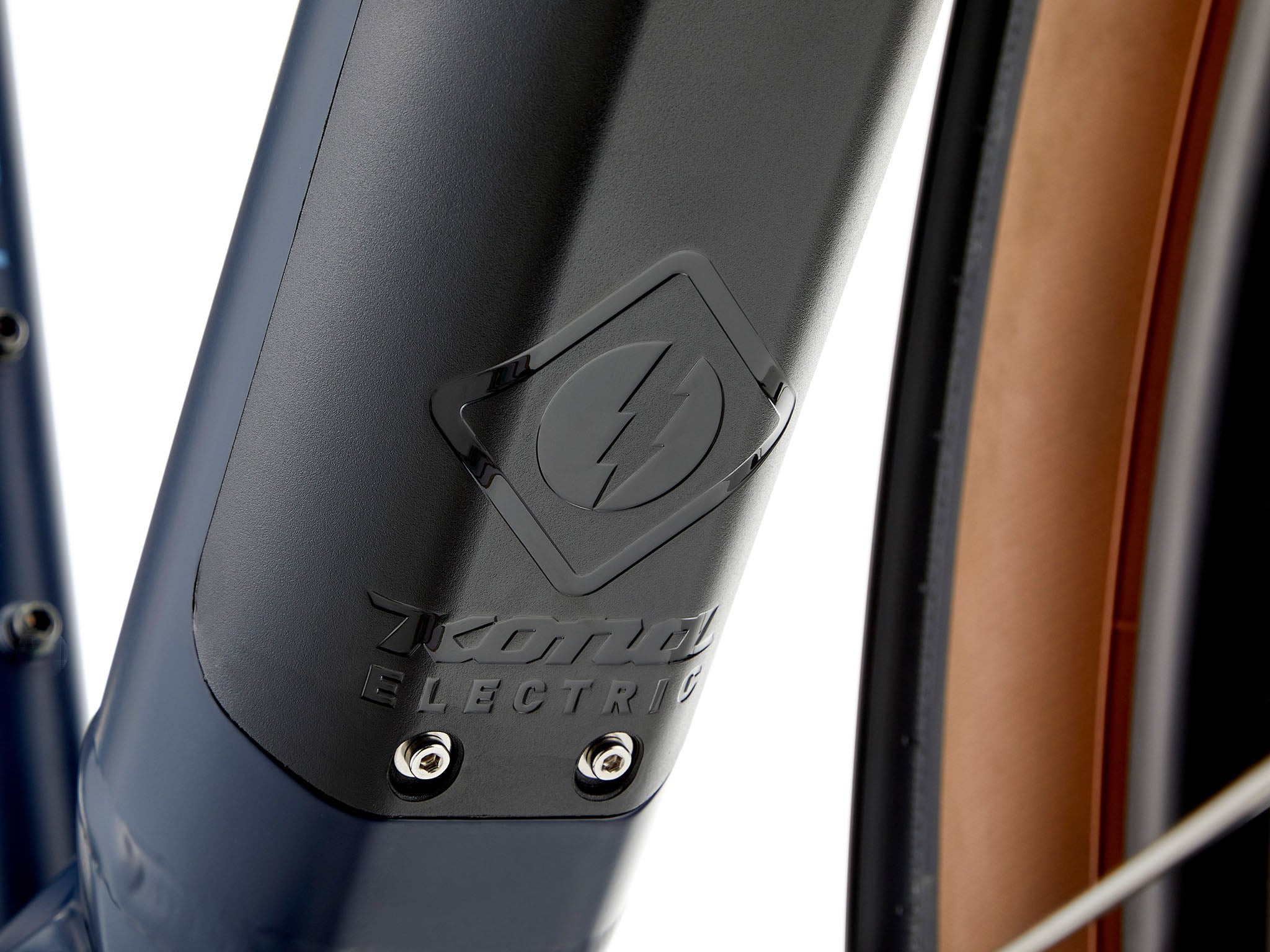

The Dew-E DL features a Shimano e6100 motor powered by a fully-integrated 504 WH battery.
The Dew-E DL has a Kona Rove Carbon fork with three bosses capable of carrying heavy loads.
The Dew-E and Ecoco are easy on the eyes, ready to cruise up the steepest of hills, and make light work of your most tiring commutes. Both bikes feature a semi-integrated 504 Wh battery that powers a Shimano E6100 motor. With the Dew-E and the Ecoco, a little pedaling goes a long way.

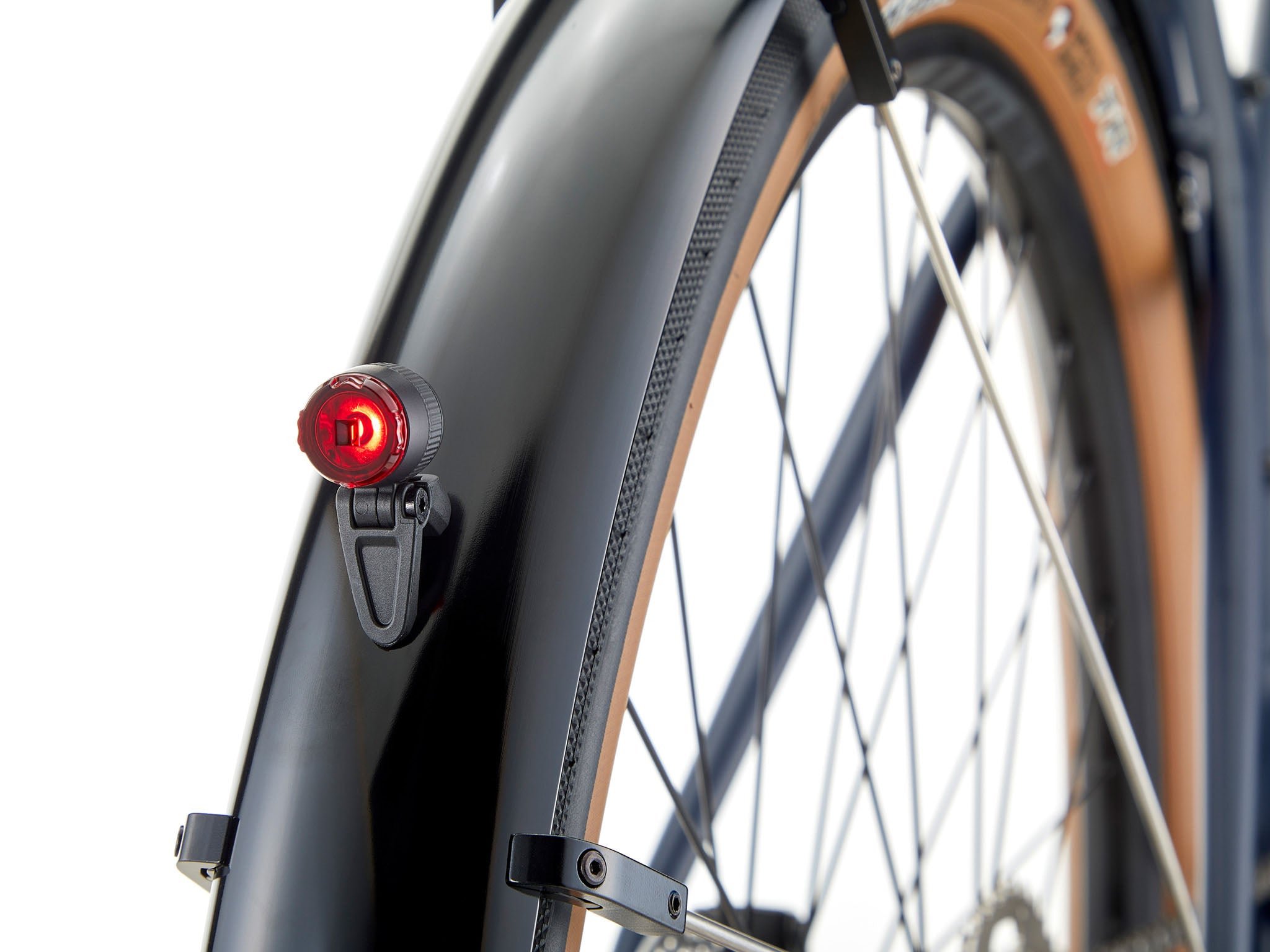

Both the Dew-E and the Ecoco feature front and rear fenders and lights, keeping you safe and clean on your commute.

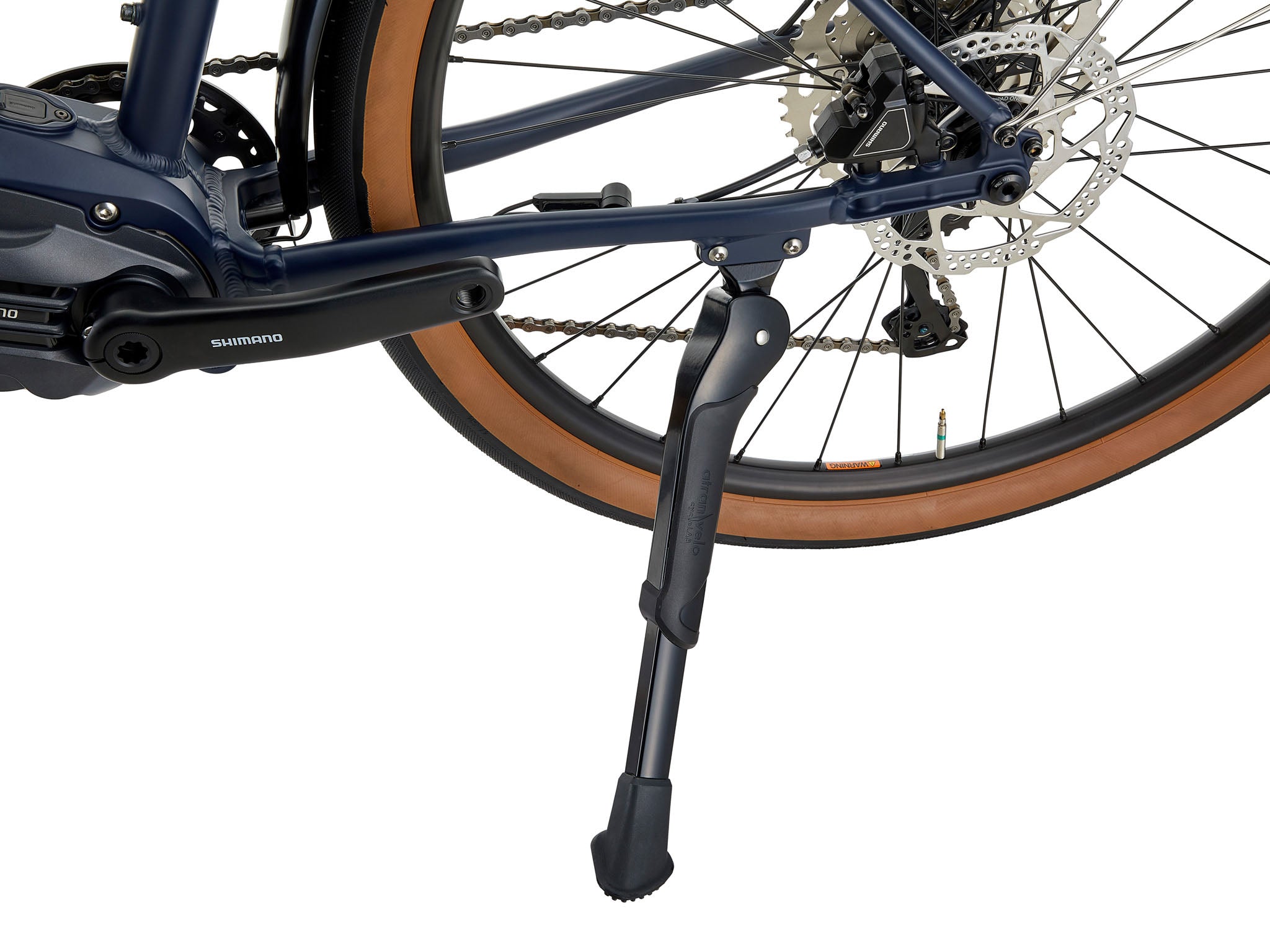

Both bikes rely on a sturdy integrated kickstand.
The Ecoco uses swept back bars for a more upright riding position. The bars easily accept a front basket to help haul groceries or a six pack.
WTB Horizon Comp Puncture Protect tires on both the Dew-e and Ecoco
Call2Recycle FAQ
Does Kona participate in any ebike battery recycling programs?
Yep! Kona has partnered with Call2Recycle to take care of all battery recycling at the end of their life.
Who is Call2Recycle?
Call2Recycle is the country’s largest consumer battery stewardship and recycling program, with a network of thousands of public collection sites. Founded in the mid-1990s as a voluntary, industry-run initiative to keep the heavy metals from rechargeable batteries out of the solid waste stream.
Are there any fees associated with this service?
Yes, the structure is set up so that the eco fee is passed along the chain to the end consumer. These fees ensure that the program runs effectively and that all collection sites can be outfitted with the appropriate safety and recycling materials. Here’s how it works:
- As the importer of record, Kona will remit the fees to C2R. It’s $15 per electric bike or aftermarket battery.
- Kona will be passing the eco fee to the dealer when they are shipped any ebikes or batteries.
- The consumer buying the bike or battery will pay the dealer the fee.
- This fee ensures that when your battery has reached the end of its life that it will be safely recycled and there will be no additional fee.
Do I need to pay a fee when the battery is ready to be recycled too?
Nope. The fee you paid at the time of purchase is the only fee you’ll ever need to pay to recycle your battery.
Will my dealer take the battery when I can no longer use it?
This will vary from dealer to dealer as it’s up to them if they want to sign up to be a battery collection site. You can find a participating dealer near you on the call2recycle locator.
I’m a dealer and want to become a collection site. How do I sign up?
Great! The more collection sites the better! It costs nothing to become a collection site. Find out more info here. Once registered, you will complete a short training and have access to recycling and safety materials
I’m a consumer and my local dealer isn’t a collection site. Where can I recycle my batteries?
We will do our best to encourage our dealer network to participate in the program, but if they haven’t had time or choose not to participate, please use the locator to find your nearest location.
Why should I recycle my batteries?
Ensuring your e-bike battery is disposed of in the proper waste stream is an important part of responsible e-bike ownership. Metals in both batteries and cellphones can be recycled and used in new products such as new batteries, stainless steel alloy and cement additives. Recycling reduces the need to mine for virgin material to manufacture these products. Additionally, Universal waste laws prohibit throwing lithium-ion batteries in the trash as they pose safety risks to people, property, and the natural environment. The Call2Recycle program ensures these products are safely and compliantly recycled through the proper channels.
Where can I find more information aboutCall2Recycle?
Right here!
