Big Honzo DL
Sale price$1,399.00 USD
Regular price$0.00 USD (/)

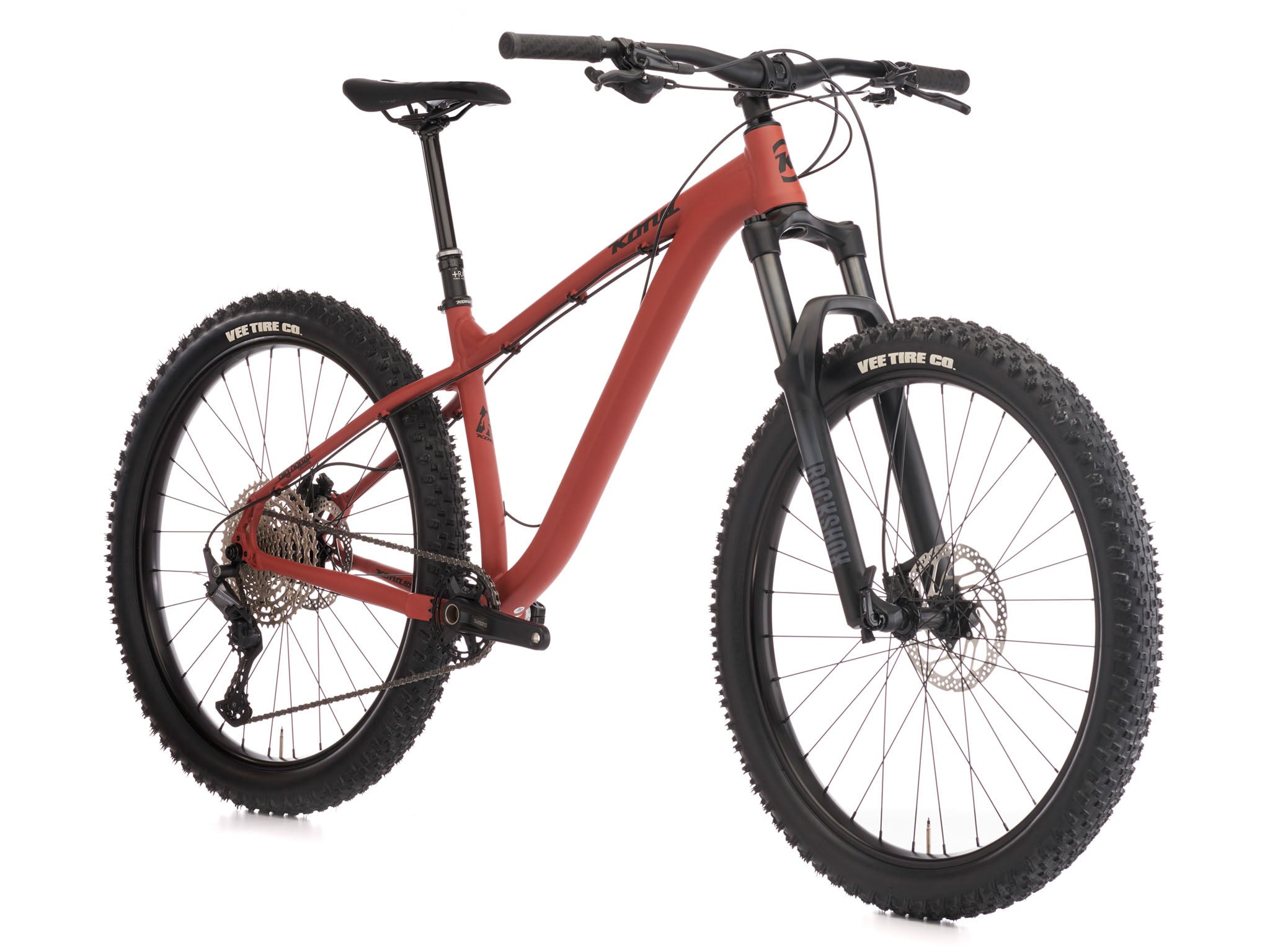

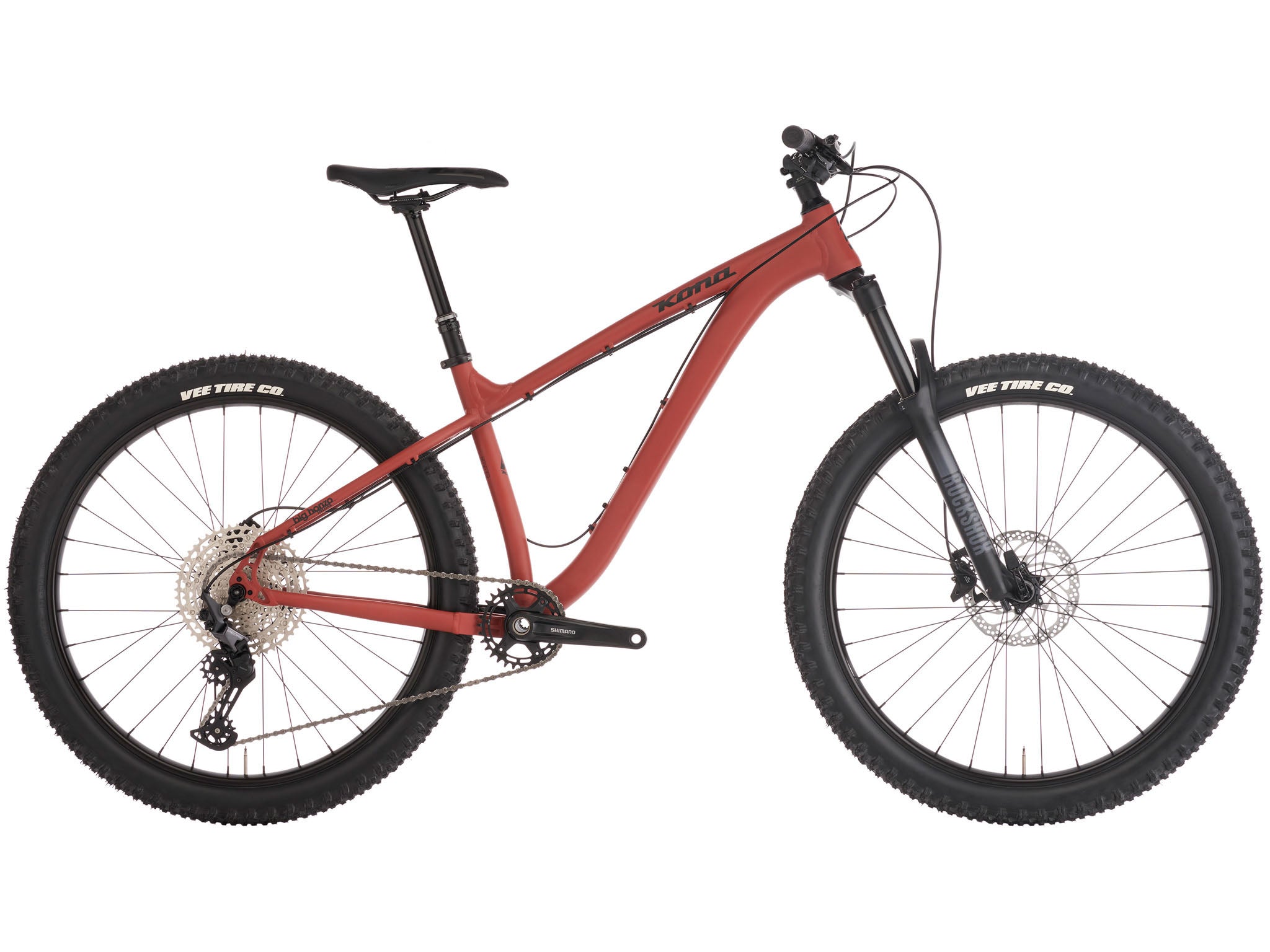

The Big Honzo DL is exactly what the name implies. It’s a Honzo with bigger tires and a nice build kit featuring hydraulic disc brakes and 130mm of suspension. You’ll get a little extra squish thanks to the 2.8” tires that absorb bumps with ease. Comfortable geometry and an adjustable travel dropper post ensure you’re always at just the right position on your bike whether you’re climbing that big mountain or descending your favorite flow trail!
SPECS & GEOMETRY
SPECIFICATIONS
| Frame Material | Kona 6061 Aluminum Butted |
| Sizes | S, M, L, XL |
| Rear Shock | n/a |

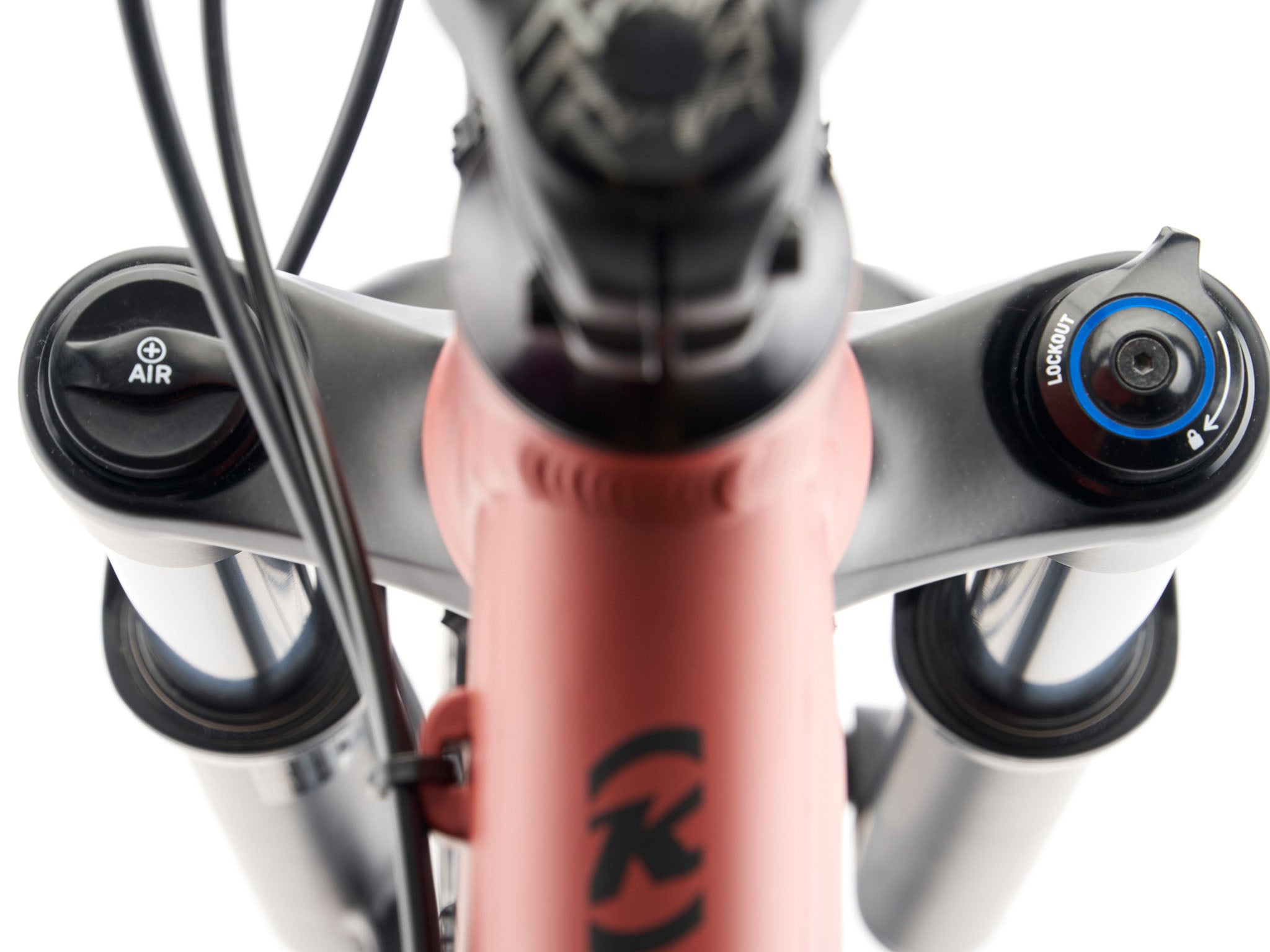

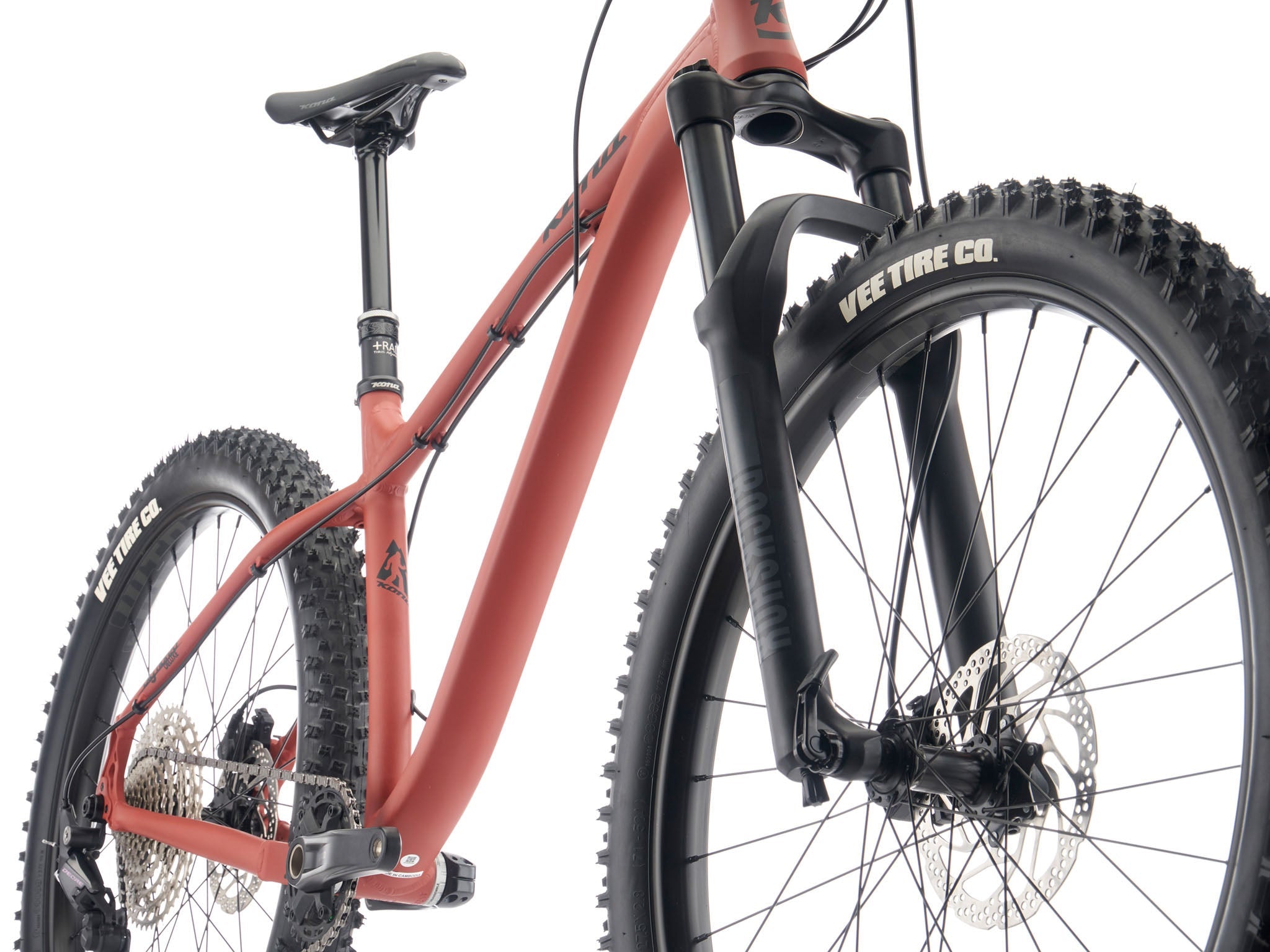

| Fork | RockShox 35 Silver TK Solo Air 130mm Tapered 110mm Spacing |

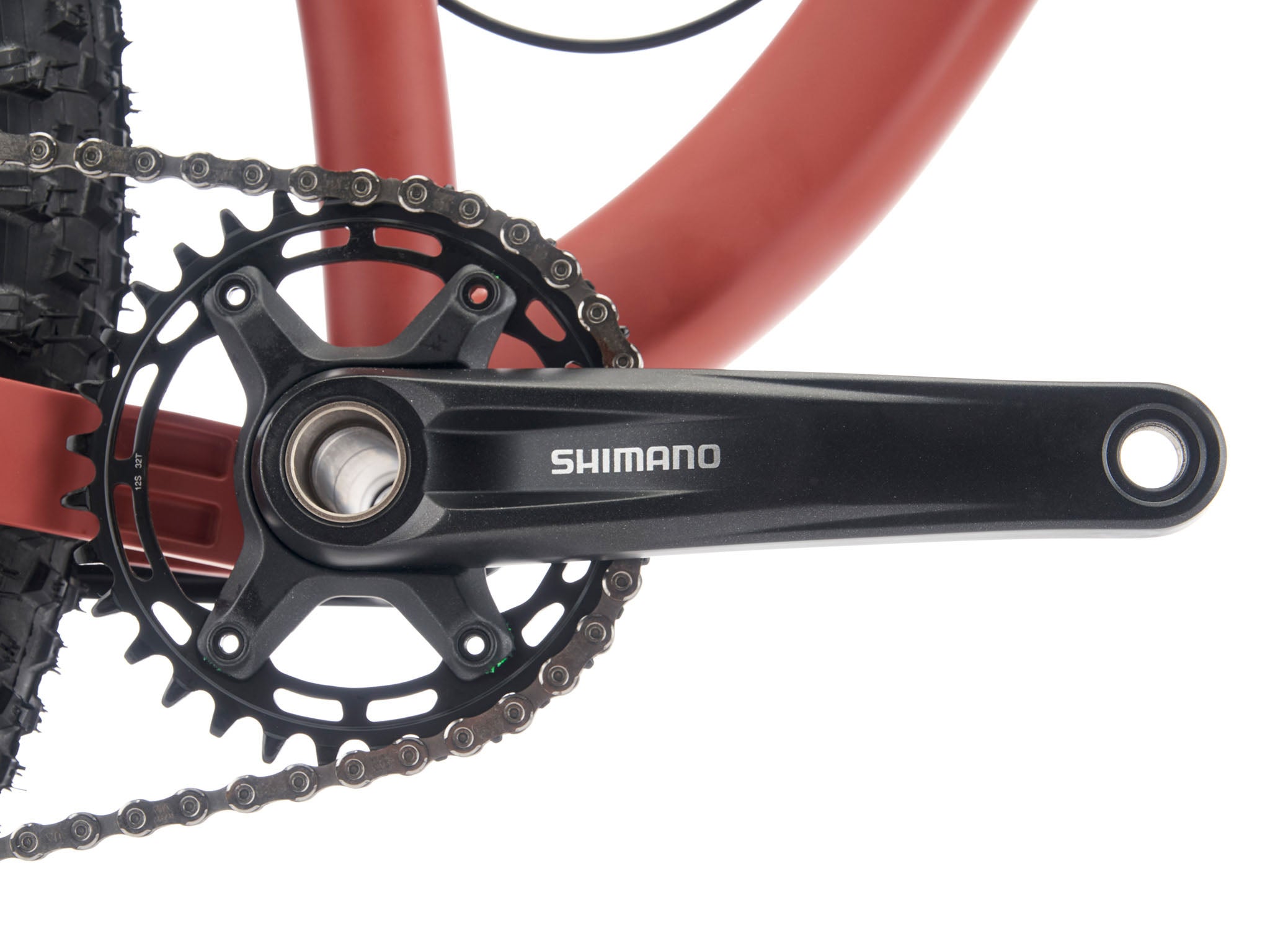

| Crankarms | Shimano Deore 12 spd |
| Chainrings | 32t |
| B/B | Shimano 73mm |
| Pedals | n/a |
| Chain | Shimano Deore 12spd |
| Cassette | Shimano Deore 10-51t 12spd |
| Chainguide | n/a |
| F/D | n/a |

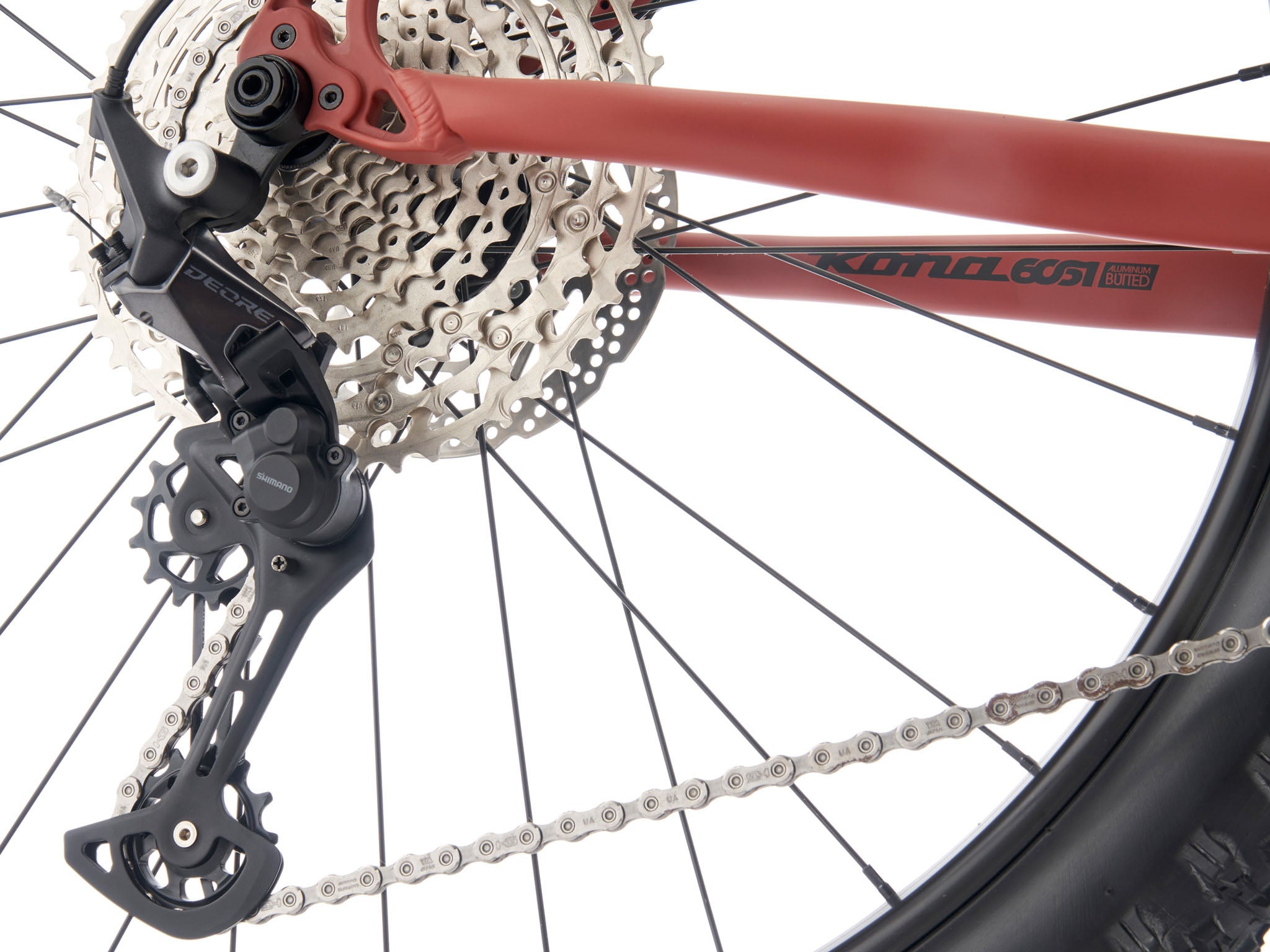

| R/D | Shimano Deore 12spd |

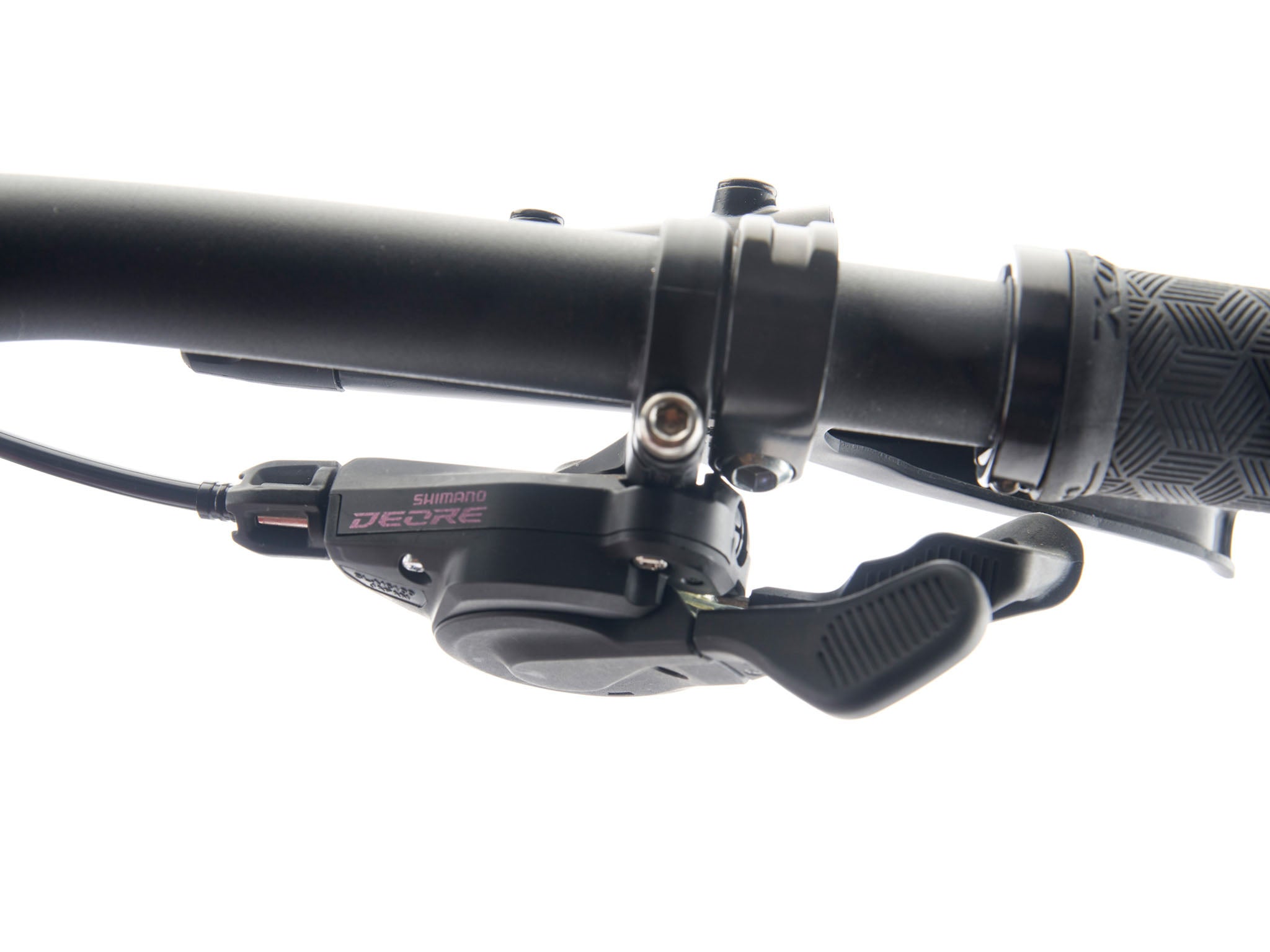

| Shifters | Shimano Deore 12spd |

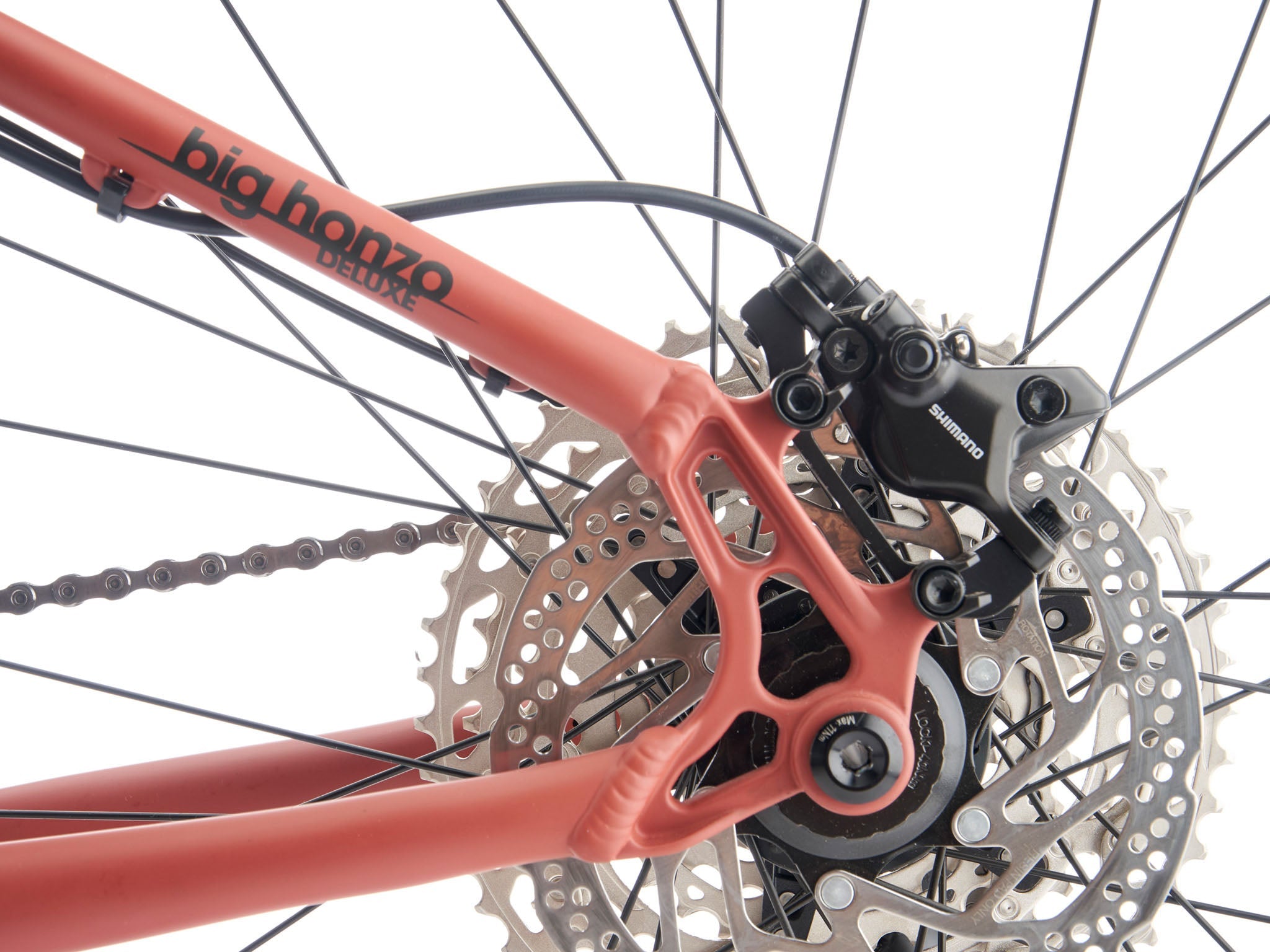

| Brake Calipers | Shimano MT410 Hydraulic |
| Front Brake Rotor | Shimano RT30 180mm (centerlock) |
| Rear Brake Rotor | Shimano RT30 160mm (centerlock) |

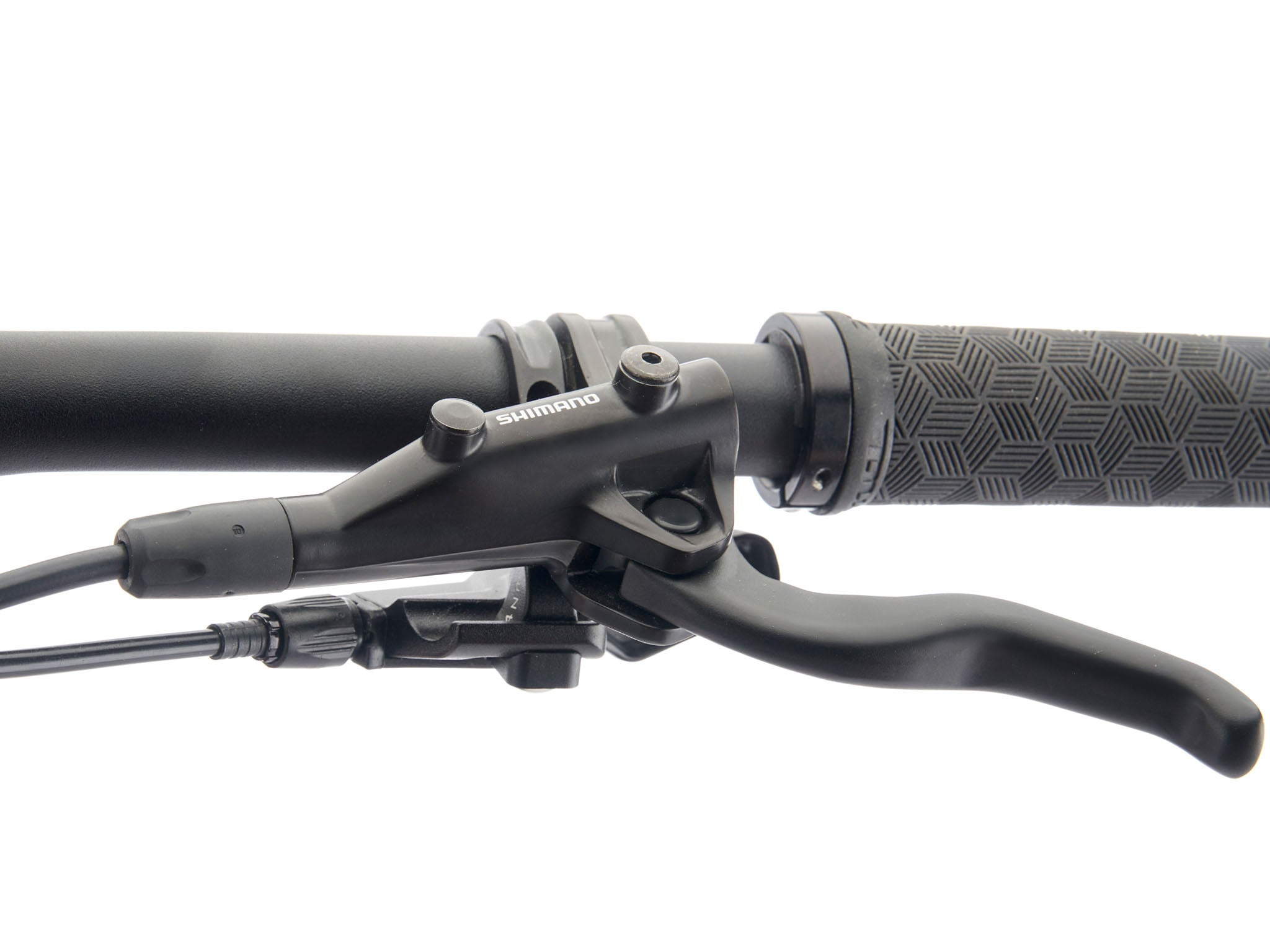

| Brake Levers | Shimano MT410 Hydraulic |

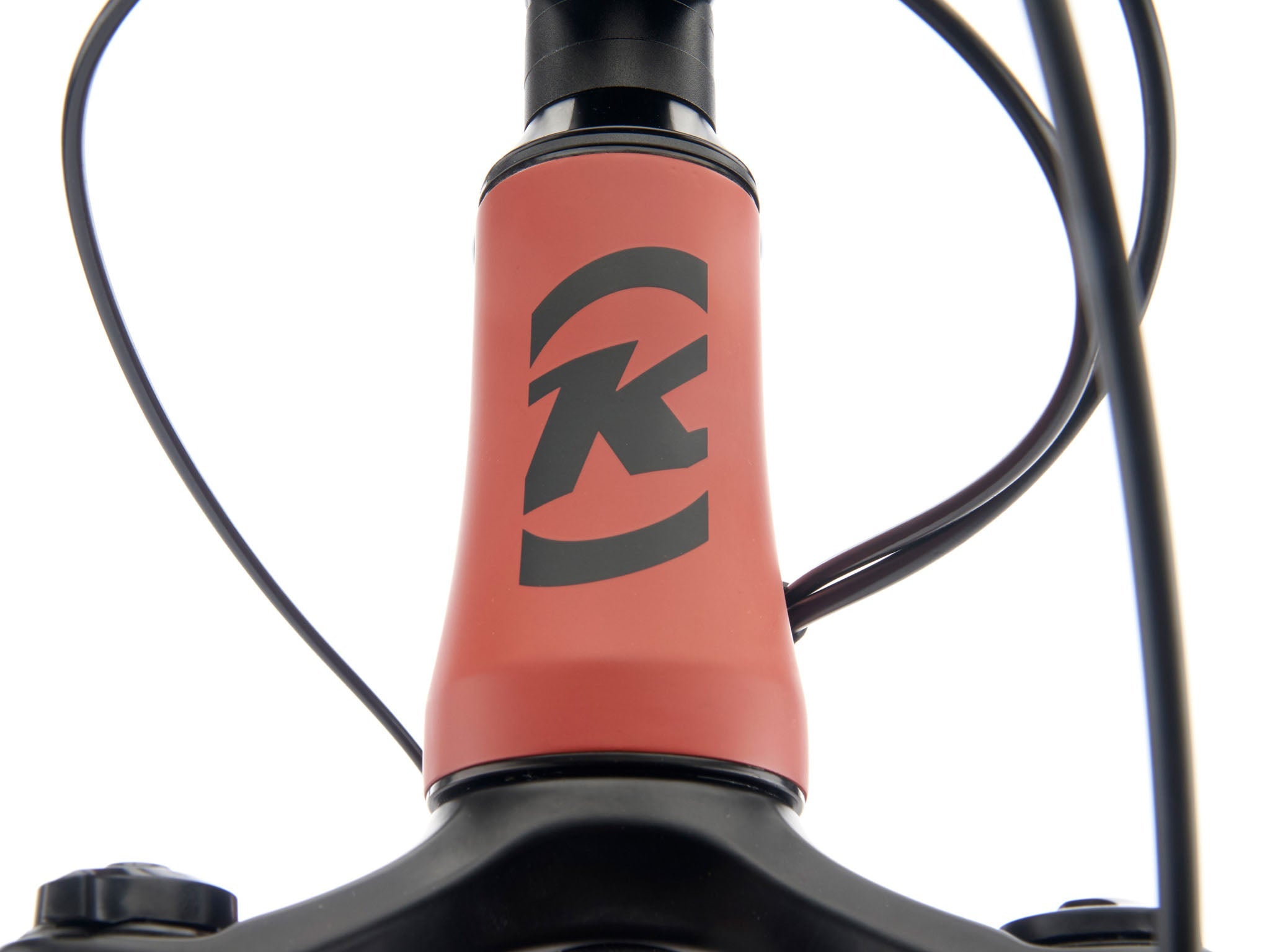

| Headset | Feimen HP-H868B |
| Handlebar | Kona XC/BC 35 |
| Stem | Kona XC/BC 35 |

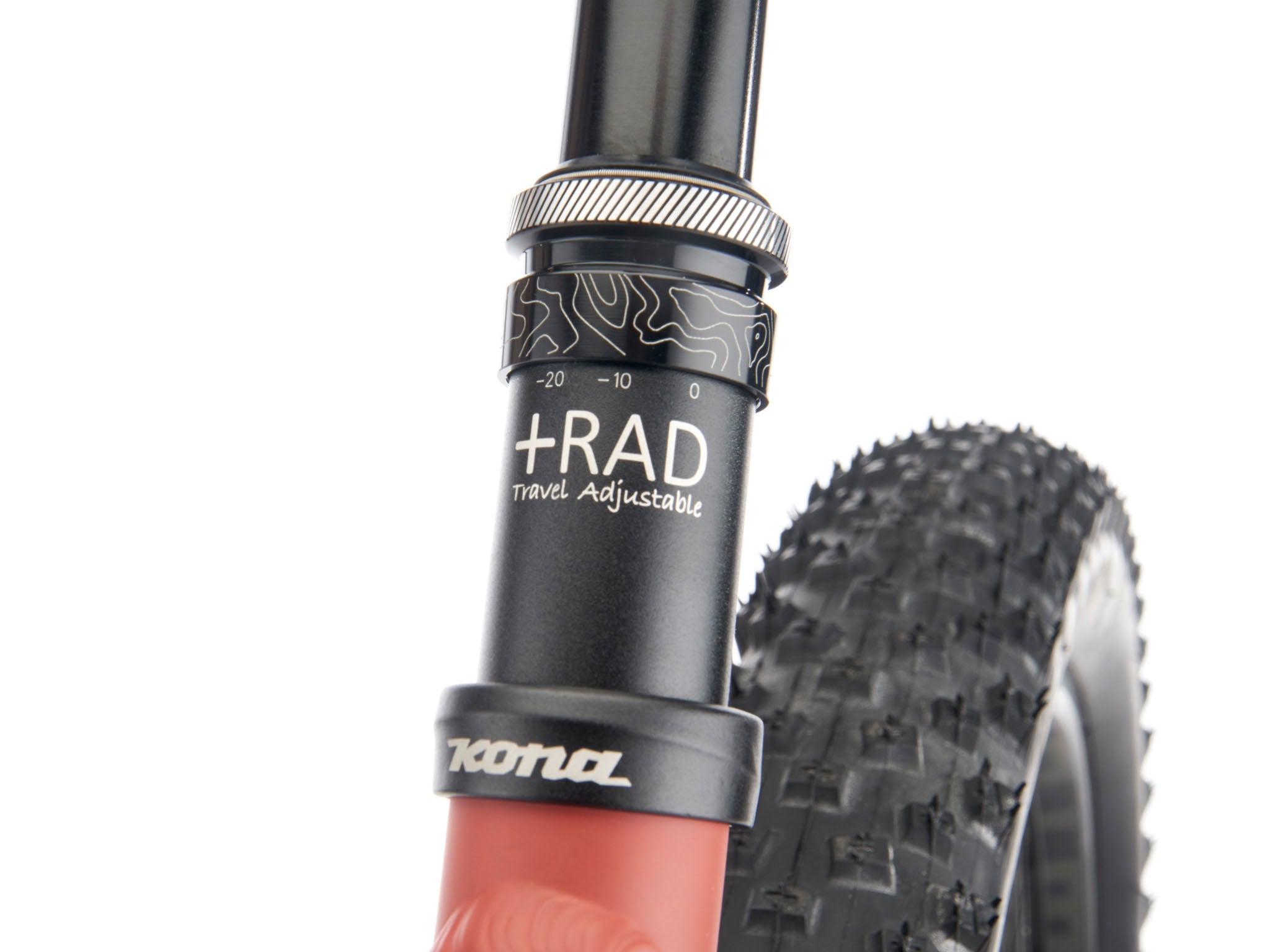

| Seatpost | TranzX Dropper +RAD Internal 31.6mm |
| Seat Clamp | Kona Clamp |
| Grips | Kona Key Grip |
| Saddle | Kona Trail |
| Front Hub | Shimano 110x15mm (centerlock) |
| Rear Hub | Shimano 148x12mm (centerlock) |
| Spokes | Stainless Black 14g |
| Rims | WTB ST i35 TCS 2.0 |
| Front Tire | Vee Tire Crown Gem MPC TR 27.5x2.8" |
| Rear Tire | Vee Tire Crown Gem MPC TR 27.5x2.8" |
| Paint Color | Matte Bloodstone w/ Charcoal Decals |
| Extras | n/a |
All specifications are subject to change without notice.
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 370 | 420 | 470 | 530 |
| 2 | TT Length | 592 | 619 | 647 | 684 |
| 3 | Reach | 425 | 450 | 475 | 510 |
| 4 | Stack | 622 | 631 | 640 | 649 |
| 5 | Standover | 723 | 729 | 736 | 758 |
| 6 | HT Angle | 67.5 | 67.5 | 67.5 | 67.5 |
| 7 | HT Length | 95 | 105 | 115 | 125 |
| 8 | ST Angle | 75.0 | 75.0 | 75.0 | 75.0 |
| 9 | CS Length | 430 | 430 | 430 | 430 |
| 10 | BB Drop | 50 | 50 | 50 | 50 |
| 11 | BB Height | 310 | 310 | 310 | 310 |
| 12 | Wheelbase | 1144 | 1173 | 1202 | 1241 |
| 13 | Front Center | 719 | 747 | 776 | 815 |
| 14 | Fork Length | 541 | 541 | 541 | 541 |
| 15 | Fork Offset | 51 | 51 | 51 | 51 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
