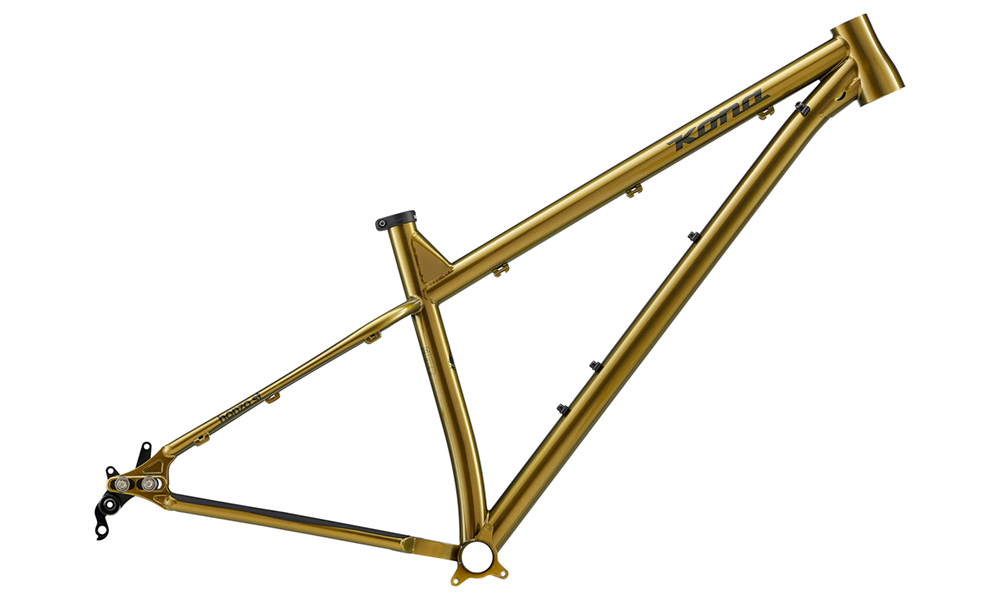

Honzo ST

Comes with SRAM Maxle Ultimate
The sweet ride feel of steel comes alive in this lovingly crafted, wildy aggressive hard tail mountain bike. Think of it as a Process 111 without the rear travel. A slack 68-degree head tube angle, low bottom bracket and shortest-in-class chainstays, with a super-low top tube for great standover, the Honzo is all about confidence in the hairiest of situations.

“All climbs must come to an end – and it’s at this point the bike really starts to shine”

- Bike Radar

SHARE WITH A FRIEND

  • Kona Cromoly Butted frame
  • Improved geometry to match Process bikes
  • Modular dropout system
  • Tapered head tube
  • 31.6 dropper compatible with Stealth routing
  • Frame Changes:
    Frame improvements on the Honzo ST include an increased reach to match the sizing used on our Process bikes.

GEOMETRY mminches

  SIZE S M L XL
1 ST LENGTH 381 432 478 508
2 TT LENGTH 598 626 655 693
3 REACH 425 450 475 510
4 STACK 624 633 642 651
5 STANDOVER 715 710 710 710
6 HT ANGLE 68 68 68 68
7 HT LENGTH 90 100 110 120
8 ST ANGLE 74.5 74.5 74.5 74.5
9 CS LENGTH 415 415 415 415
10 BB DROP 65 65 65 65
11 BB HEIGHT 310 310 310 310
12 WHEELBASE 1110 1139 1168 1206
13 FRONT CENTER 703 732 761 799
14 FORK LENGTH 528 528 528 528
15 FORK OFFSET 46 46 46 46
  SIZE S M L XL
1 ST LENGTH 15 17 18.8 20
2 TT LENGTH 23.5 24.7 25.8 27.3
3 REACH 16.7 17.7 18.7 20.1
4 STACK 24.4 24.9 25.3 25.6
5 STANDOVER 28.1 28 28 28
6 HT ANGLE 68 68 68 68
7 HT LENGTH 3.5 3.9 4.3 4.7
8 ST ANGLE 74.5 74.5 74.5 74.5
9 CS LENGTH 16.3 16.3 16.3 16.3
10 BB DROP 2.6 2.6 2.6 2.6
11 BB HEIGHT 12.2 12.2 12.2 12.2
12 WHEELBASE 43.7 44.8 46 47.5
13 FRONT CENTER 27.7 28.8 30 31.5
14 FORK LENGTH 20.8 20.8 20.8 20.8
15 FORK OFFSET 1.8 1.8 1.8 1.8
KONA Geometry

SIZING + FIT

ROAD/CX/ASPHALT

Height/Inches Height/Metric Inseam/Inches Inseam/Metric Road CX/Freerange Dews/Esatto/PhD/PW3/PHF CoCo
4'10" - 5'1"147 - 155 cm25” - 27”64 - 69 cm4846/48 cmSmall
5'0" - 5'3"152 - 160 cm26" - 28"66 - 71 cm49 cm48/49/49.546/48/49 cmSmall, Medium
5'2" - 5'7"157 - 170 cm27" - 29"69 - 74 cm49/52/53 cm49/49.5/51/5348/49/52/53/54 cmMedium, Large
5'6" - 5'11"168 - 180 cm29" - 31"74 - 79 cm49/53/54/56 cm51/53/54/5652/53/54/55/56 cmMedium, Large
5'10" - 6'3"178 - 190 cm31" - 33"79 - 84 cm53/56/58/59/61 cm54/56/57/5954/55/56/57/58/59/61 cmLarge, XL
6'2" - 6'5" 188 - 196 cm33" - 36"84 - 91 cm59/61 cm59/61/6357/58/59/61 cm N/A

MTB/ALL MOUNTAIN/GRAVITY

Height/Inches Height/Metric Inseam/Inches Inseam/Metric Crosstrail MTB/XC Trail/Fat All Mountain/Enduro Gravity/DH
4'10" - 5'1"147 - 155 cm24” - 27”61 - 69 cmSmallXS/SmallXS/Small Small
5'0" - 5'3" 152 - 160 cm26" - 29" 66 - 74 cmSmall, MediumSmall, MediumSmall Small
5'2" - 5'7" 157 - 170 cm27" - 30" 69 - 76 cmSmall, MediumSmall, MediumSmall/MediumSmall/Medium
5'6" - 5'10"168 - 178 cm29" - 31"74 - 79 cmSmall, Medium, LargeSmall, Medium, LargeSmall/Medium Small/Medium
5'9" - 6'0" 175 - 183 cm 30" - 33"76 - 84 cmMedium, Large Medium, Large Medium/Large Medium/Large
5'11" - 6'2" 180 - 188 cm32" - 35"81 - 89 cmMedium, Large, XLMedium, Large, XLLarge/XL Medium/Large
6'1" - 6'5" 185 - 196 cm33" - 36"84 - 91 cmLarge, XL Large, XL Large/XL Large

FEATURES

KONA CROMOLY

Very few materials offer as much shock absorption, durability and supple-ride characteristics as steel. We’ve never strayed from cycling’s original material and have worked tirelessly to adapt, refine and innovate Kona Cromoly framesets as rider demands continue to evolve.

Models: Penthouse, Penthouse Flat, Sutra LTD, Sutra, Rove ST

INTERNAL HEADSET

Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.

Models: Supreme Operator, Operator DL, Operator, Stinky 26, Process 111, Process 134, Process 134 DL, Process 153, Process 153 DL, Precept 120, Precept 130, Precept 150, Honzo AL DL, Honzo AL, Big Honzo DL, Big Honzo, Hei Hei Race Supreme, Hei Hei Race DL, Hei Hei Race, Hei Hei Supreme, Hei Hei DL, Hei Hei, Hei Hei Trail Supreme, Hei Hei Trail DL, Hei Hei Trail, Kahuna DDL, Kahuna DL, Kahuna, Big Kahuna, Lana’i, Fire Mountain, Blast, Cinder Cone, Explosif, Shred, Unit, Lava Dome, Mahuna, Wozo, Wo, Mohala, Tika, Coco, Stinky 24, Shred 24, Shred 20, Splice, Splice Deluxe, Jake, Jake the Snake, Jake the Snake CR, Private Jake, Esatto DDL, Esatto Disc, Esatto, Esatto Fast, Zone LTD, Big Rove AL, Dr Dew, Dew Deluxe, Dew Plus, Dewey, Ute, Honzo Ti Frame

TAPERED HEAD TUBE

More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset cup—maximizing bearing durability where it’s needed.

Models: Supreme Operator, Operator DL, Operator, Stinky 26, Process 111, Process 134, Process 134 DL, Process 153, Process 153 DL, Precept 120, Precept 130, Precept 150, Honzo CR Trail DL, Honzo CR Trail, Honzo CR Race, Honzo AL DL, Honzo AL, Big Honzo DL, Big Honzo, Hei Hei Race Supreme, Hei Hei Race DL, Hei Hei Race, Hei Hei Supreme, Hei Hei DL, Hei Hei, Hei Hei Trail Supreme, Hei Hei Trail DL, Hei Hei Trail, Kahuna DDL, Kahuna DL, Kahuna, Big Kahuna, Lana’i, Fire Mountain, Blast, Cinder Cone, Explosif, Shred, Mahuna, Wozo, Wo, Mohala, Tika, Stinky 24, Jake the Snake, Jake the Snake CR, Private Jake, Esatto DDL, Esatto Disc, Esatto, Esatto Fast, Roadhouse, Wheelhouse, Zing CR, Zing AL, Zone LTD, PhD, Raijin Ti Frame, Explosif Ti Frame,

12x148mm AXLE

12x142mm, 12x148 and 12x157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted. For 2017, you’ll see the 12x148 Boost standard in the mix. Boost spacing provides more tire clearance at the chainstay yoke, while the rear wheel is stiffer and more durable relative to a 12x142 thru-axle.

Models: Supreme Operator, Operator DL, Operator, Process 111, Process 134, Process 134 DL, Process 153, Process 153 DL, Honzo CR Trail DL, Honzo CR Trail, Honzo CR Race, Honzo AL DL, Honzo AL, Big Honzo DL, Big Honzo, Private Jake, Esatto DDL, Esatto Disc, Esatto Fast, Roadhouse, Wheelhouse, Zone LTD, PhD, Honzo Ti frame, Esatto Ti Disc Frame

LIFETIME WARRANTY

Register a new 2017 Kona bike within three months of purchase, and the original owner qualifies the Kona frame for a free Lifetime Warranty. Note: this does not apply to Kona Carbon models.

ONE-YEAR LIMITED WARRANTY ON COMPLETE BICYCLE
Kona warrants to the original owner that this new Kona bicycle shall be free of defective materials and workmanship for a period of one year from the date of original purchase in the United States or Canada and operated under normal conditions and use. During this one-year period, Kona shall repair or replace, at its sole option, all parts that are found by Kona to be defective and subject to this limited warranty. The original owner shall pay all labor charges connected with the repair or replacement of all parts.

LIFETIME LIMITED WARRANTY ON BICYCLE FRAME
When warranty on non-carbon Kona bikes and frames is NOT registered within three months of purchase, Kona warrants to the original owner that the frame of this new Kona bicycle purchased from an authorized Kona dealer shall be free of defective materials or workmanship for a three-year period. IF THE WARRANTY IS REGISTERED WITH KONA WITHIN THREE MONTHS AFTER THE PURCHASE OF THE BICYCLE, THE WARRANTY IS EXTENDED FOR THE LIFETIME OF THE ORIGINAL OWNER, with the exception of carbon bikes and frames. During warranty period, Kona shall repair or replace, at its sole option, the bicycle frame if Kona determines the frame is defective and subject to this limited warranty. The original owner shall pay all labor and shipping charges connected with the repair or replacement of the bicycle frame. Please see the Kona owner’s manual, provided with your bicycle, for additional information.

Note: this Limited Lifetime Warranty applies to purchases from Kona U.S.A., Kona Canada and Kona Europe.
